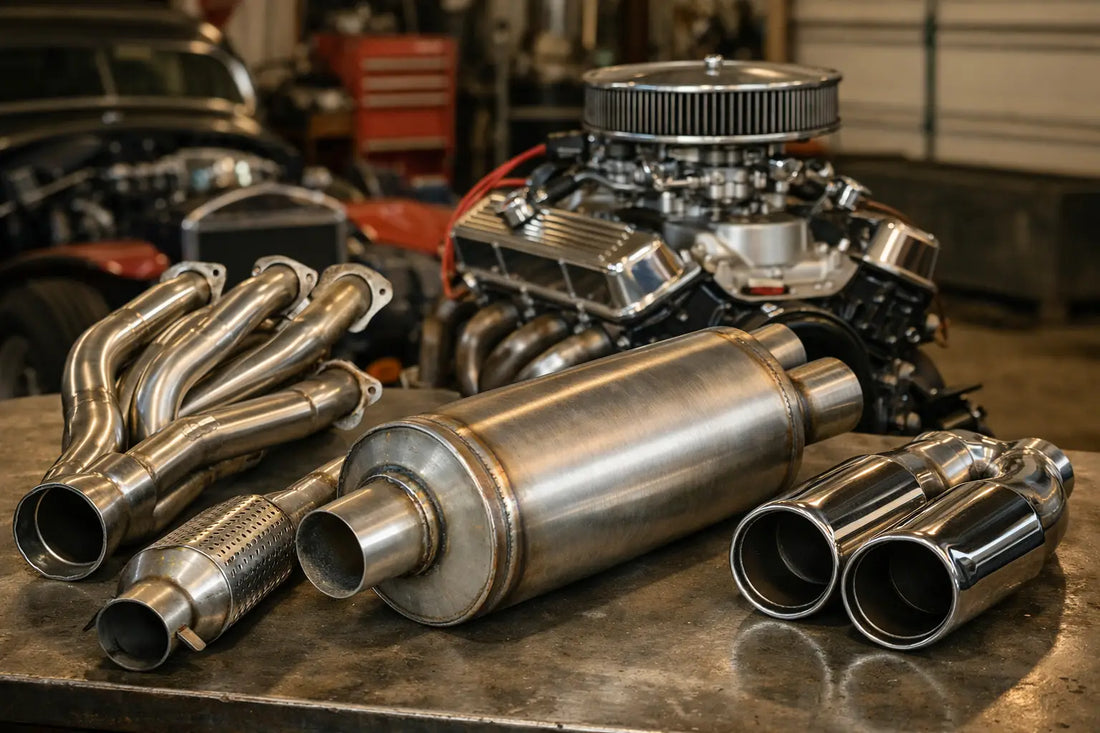

Exhaust Components That Make a Better V8
A V8 can have the right cam, carburettor or EFI hardware and still feel strangled if the exhaust is working against it. The right exhaust components do more than make noise - they move heat and spent gases efficiently, support the engine’s powerband and give a classic Holden, Ford, Chev or hot rod the tough note it deserves.
For a restoration, street machine or weekend cruiser, the best system is rarely the biggest one in the catalogue. It is the one that suits the engine combination, chassis space and intended use. Get those three areas right and the exhaust becomes a proper performance part rather than an afterthought hanging under the floor.
Exhaust Components Need to Work as a System
An exhaust system is only as good as its narrowest, poorest-flowing or badly matched section. Extractors, collectors, pipes, mufflers, resonators, bends, flanges and hangers all influence the finished result. A quality set of headers feeding a restrictive centre section will not deliver what the engine is capable of. The same applies to a free-flowing system fitted with poor sealing hardware or badly placed hangers.
Start with the engine’s actual specification. Capacity, cylinder head flow, camshaft profile, induction choice and rev range all affect what the exhaust needs. A mild 253, 302 or 350 street engine generally responds well to a sensible, balanced system that keeps low and mid-range torque strong. A harder-cammed big-block or high-revving small-block needs more volume and may benefit from larger primary tubes and a freer-flowing collector arrangement.
The goal is not simply to get gases out as fast as possible. Exhaust pulse timing matters. Well-matched pipe diameters and collector design help maintain gas speed, which supports cylinder scavenging and throttle response. Go too large for a mild engine and the car can lose the crisp, usable bottom-end character that makes it enjoyable on the street.
Extractors Set the Tone for the Whole System
Extractors, often called headers, are where the system begins. Their primary tubes replace the restrictive, compact passages found in many factory manifolds, giving each cylinder a cleaner path into the collector. For classic V8 builds, this can make a noticeable difference to engine response, especially when paired with suitable induction and ignition parts.
Primary tube diameter should match the build rather than a wish-list horsepower figure. Smaller primaries generally suit torque-focused street combinations, while larger tubes favour engines intended to work harder at higher rpm. Tube length and collector sizing also matter, particularly on engines with a bigger camshaft and improved heads.
Fitment is just as important as flow. Engine mounts, steering shafts, starter-motor clearance, transmission choice, chassis rails and plug access vary widely across classic platforms. A header that looks right on paper can create headaches if it was not designed around your vehicle family and engine layout. Check the intended application carefully before selecting a set, particularly on swaps, modified bays and tight hot rod chassis.
Pipe Diameter: Bigger Is Not Always Better
After the collectors, the exhaust needs enough cross-sectional area to carry the engine’s output without becoming a dead, lazy tunnel. Twin systems are common on V8s because they provide useful capacity while allowing sensible pipe sizes and packaging. Single systems can also work well on certain mild builds where simplicity and available space take priority.
A modest street V8 often works best with pipework sized for response and driveability rather than maximum rpm. Larger diameter pipe can be appropriate for a serious 383, 400, 427 or 454-style build, but it must be supported by the rest of the combination. Oversizing the pipes on a stockish engine can add drone, reduce ground clearance and offer little real return.
Bends deserve attention too. Mandrel-bent pipe maintains a more consistent internal diameter through curves than crushed bends, helping preserve flow where the system has to route around crossmembers, suspension and the diff. On a low classic, a hot rod or a car with a larger rear axle, careful routing is often the difference between a clean build and an exhaust that constantly knocks, scrapes or sits too close to surrounding components.
Mufflers and Resonators Shape the Driving Experience
Mufflers are not just there to quiet the car down. They determine much of the exhaust character, from a deep old-school burble to a sharper, more aggressive note. Straight-through designs typically suit performance-focused combinations because they present a less restrictive path. Chambered styles can provide a distinctive muscle-car sound and are often a strong choice where the build is chasing period character as much as outright flow.
There is always a trade-off. The loudest option is not automatically the best one for a car that spends real time on the road. A system that sounds brilliant at idle can become tiring in the cabin at cruising speed, especially with a large cam, short wheelbase or rear-exit pipes positioned close to the cabin.
That is where resonators earn their place. Positioned in the centre or rear portion of the system, they help control harsh frequencies and reduce drone without flattening the engine’s character. For many street machines, a quality muffler and resonator combination produces a deeper, cleaner note than a pair of small mufflers alone.
The Small Exhaust Parts That Keep It Reliable
The parts that do not make the dyno sheet often determine whether the system stays tight, quiet and secure over time. Flanges need to seal squarely, gaskets need to suit the flange faces, and clamps must hold the joints without distorting the pipe. Flexible connections can be useful where an engine moves relative to the rest of the exhaust, while properly selected hangers support the system without loading it up.
When planning exhaust components, give the supporting hardware the same attention as the visible pipework:
- Collector gaskets and flange hardware help maintain a clean seal at the front of the system.
- Quality clamps, V-band assemblies or flange connections make sections easier to service or alter later.
- Hangers and insulated mounts control movement and help prevent rattles against the chassis or body.
- Heat shielding and wrap-related hardware may assist where clearances around starters, lines or floor sections are limited.
Match Exhaust Components to the Build Goal
A factory-style restoration, a tough carburetted street cruiser and an EFI hot rod do not need the same exhaust recipe. The restoration may place a higher value on tidy fitment and a restrained period sound. The street machine may need extractors and a twin system that back up a camshaft, intake and carb upgrade. An EFI build may call for a more considered collector and pipe package to complement improved airflow across a broader rev range.
Think about the whole vehicle, not just the engine. Transmission crossmember location, rear suspension, wheelbase, fuel tank position and ride height all affect what can be packaged cleanly. A part that is technically suited to a small-block Chev may still be wrong for the specific chassis under it.
This is where clear product specifications matter. Check tube diameter, collector size, overall routing, connection style and the vehicle applications listed for the part. For unusual combinations, measure the available space and identify the components that must coexist with the exhaust before committing to a system.
Traction Auto Parts backs enthusiast builds with performance-focused parts knowledge built over more than 30 years around classic cars, hot rods and serious V8 combinations. Choosing the right parts before the build progresses helps avoid compromises later, whether you are chasing a stronger mid-range pull, a cleaner exhaust note or a system that fits the car as well as it suits the engine.
A well-chosen exhaust should make the whole combination feel more deliberate. Build it around the engine you have, the chassis you are working with and the way you want the car to drive, and every time the V8 fires, you will know the difference.
