Exhaust Header Collector Sizes Explained
A header can have beautifully formed primary tubes, quality flanges and tidy welds, then still leave power on the table if the collector is wrong. Exhaust header collector sizes are where four individual pulses become one working system, and the diameter you choose has a real effect on torque, top-end pull, exhaust note and how the rest of the system needs to be built.
For a street-driven Holden V8, Windsor-powered Ford, small-block Chev or traditional hot rod, bigger is not automatically better. The right collector supports the engine combination and the way you intend to use it. Get it right and the engine feels crisp through the mid-range. Go too large and a healthy street engine can feel lazy where it spends most of its time.
What an exhaust collector actually does
The collector is the section where the header’s primary tubes merge before connecting to the exhaust system. Its job is not simply to funnel gas into a bigger pipe. A properly sized collector helps use the low-pressure wave following each exhaust pulse to assist cylinder evacuation. This is commonly called scavenging.
Better scavenging means less spent gas remains in the cylinder when the next intake charge arrives. On the right combination, that supports cleaner combustion, stronger cylinder filling and a more responsive engine. The collector also controls gas speed. That is why its size affects where the engine makes its best torque.
A smaller collector generally keeps exhaust velocity higher, which can help low- and mid-range response. A larger collector offers more flow capacity at high rpm, but only when the engine has enough airflow and rpm to use it. The collector is therefore a tuning point, not just a connection size.
Exhaust header collector sizes: start with the engine’s job
Before measuring anything, be honest about the build. A 302 Ford in a cruiser, a warmed 350 Chev street machine and a high-revving solid-cam small-block are not asking the exhaust to do the same job.
For street engines, torque across a broad rpm range matters more than chasing a number at the very top of the tacho. A collector that is slightly conservative often gives the better driving result. It maintains pulse energy, helps the engine come alive sooner and works well with sensible rear exhaust sizing.
A dedicated high-rpm combination is different. Bigger heads, more camshaft duration, higher compression, increased capacity and a higher shift point all raise exhaust volume. That engine may need a larger collector to avoid becoming restricted near peak power. The key is matching the whole package rather than choosing a collector from engine capacity alone.

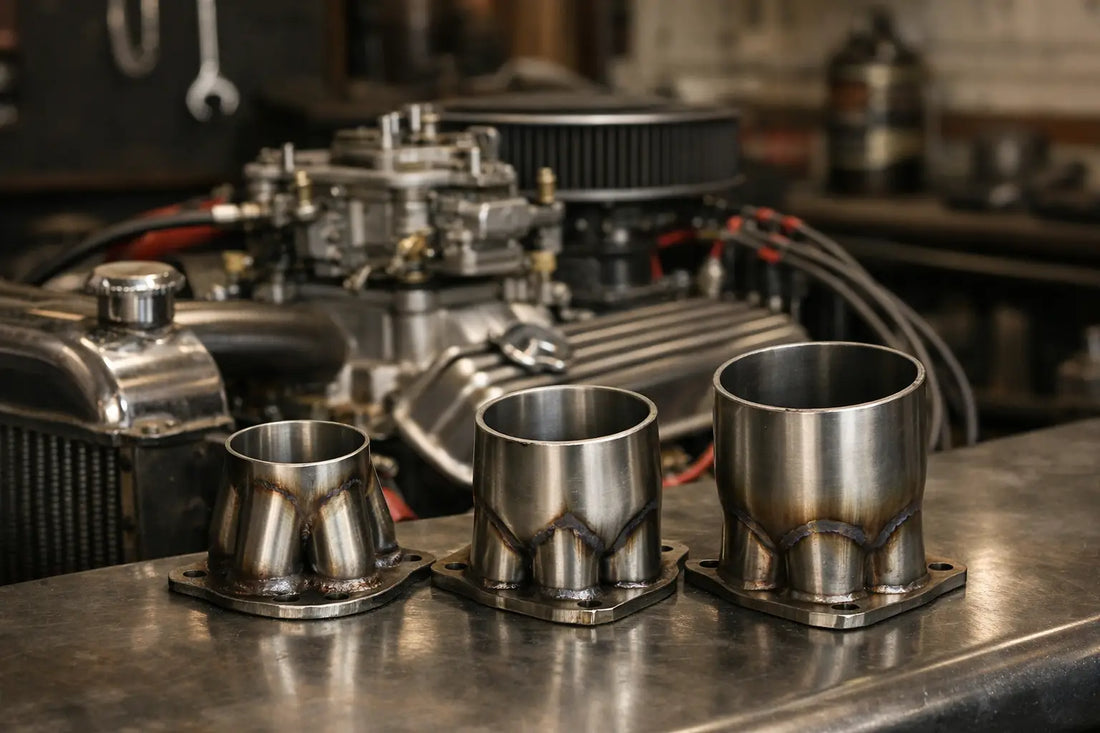

As a broad starting point for V8 street and performance builds, these common collector diameters give useful perspective:
- 2 1/2-inch collectors suit many mild small-block street engines and torque-focused builds.
- 3-inch collectors are a common all-round choice for stronger small-blocks and many street big-block combinations.
- 3 1/2-inch collectors suit serious high-output V8s with the capacity, cylinder-head flow and rpm range to support them.
- 4-inch collectors are generally for large-capacity, high-rpm or competition-focused combinations, not a typical weekend cruiser.
Primary tube size comes first
Collector diameter cannot be chosen in isolation. The primary tubes deliver the pulses, so their diameter and length set the foundation.
Small primary tubes maintain velocity and are often right for mild street engines. Larger primaries support engines that move more air at higher rpm. If a header has oversized primary tubes and an oversized collector on a moderate engine, exhaust pulse energy drops away. The usual result is soft low-end response and a car that only starts to feel strong later than it should.
As an example, a mild carburetted 302 or 308 with modest heads and a street cam generally responds better to a sensibly sized primary and collector than a race-style header. Conversely, a hard-spun 383 Chev or stout 351-based build with serious airflow may outgrow the smaller option. The header needs to complement the engine’s intended operating range.
Engine capacity is only one piece of the puzzle
Capacity matters because a 454 Chev moves more exhaust gas than a 302 Ford at the same rpm. But capacity alone does not tell the full story. A mild big-block that rarely sees high rpm can still benefit from preserving gas speed, while a smaller engine turning hard with substantial cylinder-head flow can require more collector area than its cubes suggest.
Look at the combination as a whole. Consider the camshaft’s rpm range, the intake and carburettor or EFI setup, head flow, compression and where the vehicle will actually be driven. A street machine that spends its life between 2,000 and 5,500 rpm deserves different exhaust priorities from a purpose-built car operating well beyond that range.
Match the collector to the rest of the exhaust
The collector is only the first merge. Its outlet must work with the pipes, crossover or balance section, mufflers and tailpipes that follow. A 3-inch collector feeding immediately into a restrictive 2 1/4-inch dual system creates a bottleneck. At the other extreme, a small-engine street build with huge pipes after large collectors can lose the velocity that gives it punch.
For dual-exhaust V8 layouts, collector outlet size often provides a sensible guide for the front section of the system, but it is not always a one-for-one decision. Space under classic Holdens, Falcons, early Chevs and hot rods can dictate transitions, bends and muffler placement. Smooth reducers and properly matched components are far better than abrupt changes in diameter.
Collector extensions can also be useful where room allows. Added length after the merge can influence the rpm range where the header performs best, and it gives more flexibility when joining the exhaust. A removable collector extension is particularly handy on a build that may be refined over time. It is not a magic power adder, but it can be a worthwhile tuning tool when the basic header size is already right.
Merge collectors versus standard formed collectors
Not all collectors are shaped the same. A conventional formed collector is practical, proven and suits a huge number of street and restoration builds. A merge collector has a more gradual transition where the primaries meet, designed to maintain pulse energy and improve flow through the merge.
On a strong engine with a well-matched exhaust, a quality merge collector can sharpen the result. It is most worthwhile when the rest of the combination is built to take advantage of it. On a mild cruiser with restrictive mufflers, stock-style heads and a conservative cam, collector design will not overcome the limits elsewhere in the package.
Fitment matters too. A collector that looks ideal on paper still needs to clear the chassis, steering, starter and transmission area while providing a clean path into the exhaust. Classic engine bays and chassis rails rarely offer unlimited room, so buy parts around the actual vehicle and header layout rather than a diameter number alone.
Common collector sizing mistakes
The most common error is selecting the largest available collector because it sounds like the performance choice. Large collectors can work brilliantly on engines that need them. On an average street V8, they can reduce the low- and mid-range urgency that makes the car enjoyable.
Another mistake is concentrating on the header and ignoring the exhaust system after it. Every restriction, sharp step and poorly matched reducer changes the result. Think of the headers and exhaust as one airflow path from cylinder head to tailpipe.
It also pays not to confuse collector diameter with outlet pipe diameter on a generic listing. Measure the component carefully and confirm whether the stated size is inside diameter, outside diameter or intended pipe size. Small differences matter when ordering reducers, flanges, gaskets and collector extensions.
Finally, do not assume a header that fits one engine family will suit every version of that engine in every chassis. Engine mounts, transmission choice, starter position, steering arrangement and sump design can all affect the available space around the collector.
A practical way to choose
Start with the engine’s realistic rpm range and power level, then choose primary tube size and collector diameter as a matched pair. Build the rest of the exhaust around that outlet with smooth transitions and enough flow for the combination. If the vehicle is a street-driven classic, favour a system that delivers strong response through the middle rather than chasing an oversized race specification.
For builders sorting a Holden, Ford, Chev, Mopar or traditional hot rod, Traction Auto Parts brings more than 30 years of hands-on performance knowledge to the parts selection process. Having the engine details, header dimensions and intended use ready makes it far easier to choose compatible exhaust components with confidence.
The best collector size is the one that suits the whole combination and makes the car pull hard where you actually drive it. Build for usable torque first, then let the top end follow.
