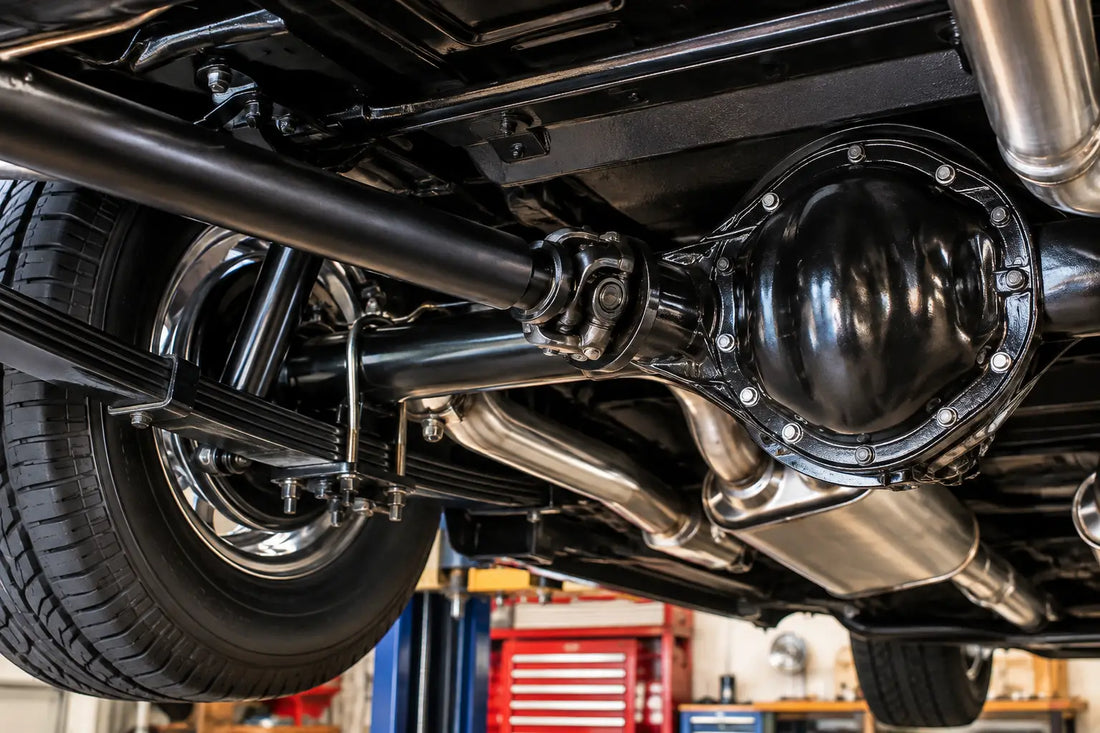

Hot Rod Drivelines That Handle Street Power
A tough V8, crisp gearbox and sticky rear tyres mean nothing if the driveline between them is under-specced. Hot rod drivelines are where engine torque becomes forward motion, and a poor combination can bring vibration, harshness, broken universal joints or a car that simply does not feel right on the road.
For a traditional coupe, chopped sedan, ute or custom street machine, the driveline needs to suit the whole package. That means the engine, transmission, differential, wheelbase, ride height, tyre, intended use and available tunnel clearance all matter. Getting the parts right is not about chasing the biggest catalogue number. It is about building strength, correct operating geometry and dependable street manners into the car from the start.
What Makes a Hot Rod Driveline Work?
A driveline is more than a tailshaft. It is the working chain from the transmission output to the rear wheels: transmission yoke or flange, slip provision, tailshaft tube, universal joints, pinion yoke or flange, differential centre, axles and wheel hubs. Every connection needs to carry the torque being asked of it.
On a mild carburetted small-block cruiser, a correctly sized steel tailshaft with quality universal joints may be all that is needed. Put a healthy big-block, blown V8 or hard-shifting automatic in front of wide rear rubber, and the load rises quickly. Sudden traction is often harder on components than a smooth roll-on of greater peak power.
The smart approach is to match the driveline to real use. A car that sees weekend cruising, motorway runs and the occasional hard launch needs a different balance from a dedicated high-grip street machine. Extra strength is valuable, but packaging, weight and smooth operation still count.
Start With the Transmission and Differential
Before choosing a shaft or joint, identify exactly what is at each end. Transmission output spline count, yoke style, rear pinion flange pattern and differential housing all determine which components can work together. Assumptions cause expensive ordering mistakes, especially on builds that have changed engines, gearboxes or rear ends over the years.
Common hot rod combinations can mix Holden, Ford, Chev and aftermarket parts, but that does not make them automatically compatible. A Turbo-style automatic, manual gearbox or overdrive transmission may use a different output arrangement from the unit it replaced. Likewise, a Ford nine-inch, BorgWarner, Salisbury or GM-style rear end can carry very different flange, yoke and pinion configurations.
Measure the transmission output and pinion connection rather than relying on what the car was originally. The best time to confirm these details is once the engine, gearbox and differential are sitting at final ride height. A chassis that looks finished on stands can settle noticeably once the complete build is on its wheels.
Slip Yokes and Fixed Flanges
A slip yoke allows the tailshaft to change length as the rear suspension moves. It is common in conventional transmission and live-axle combinations, but it needs suitable spline engagement through the full suspension travel. Too little engagement can damage splines; too much can bottom out the yoke as the suspension compresses.
Fixed-flange arrangements generally need a slip joint built into the shaft assembly. They can be an excellent solution where the transmission or rear layout demands it, but they need accurate measurement. The shaft must have enough movement available without compromising strength or clearance.
Tailshaft Diameter, Material and Length
Tailshaft selection is one of the most important decisions in hot rod drivelines. A longer shaft is more prone to flex and vibration than a short one, while shaft diameter and wall thickness influence torsional strength. Material choice matters too.
Steel remains a practical choice for many street-driven hot rods. It is strong, proven and suits a broad range of classic V8 combinations. Aluminium can reduce rotating mass and is popular where a lighter assembly is wanted, while heavier-duty applications may call for purpose-selected performance components. There is no single material that wins every build.
A larger diameter is not always an automatic upgrade if it creates clearance issues around the chassis, exhaust or transmission tunnel. A shaft needs room to move with the suspension without contacting anything. On low-slung rods and tightly packaged early-body builds, that clearance deserves as much attention as strength.
Length also affects operating behaviour. A very long wheelbase build may require a two-piece arrangement with a centre bearing rather than one long shaft. That adds components, but can make the package more manageable where shaft speed and space demand it. On a short-wheelbase hot rod, a shorter shaft can see sharper operating angles as the differential moves, so correct joint selection and geometry become even more critical.
Universal Joints: Small Parts, Big Consequences
Universal joints are easy to overlook until one fails. They transfer drive through changing angles, and they need to be correctly matched to the yokes at both ends. Joint series, cap diameter and span must suit the hardware already in the build.
A quality joint is not just insurance for high horsepower. It helps maintain smoothness and durability in any car that gets regularly driven. Avoid building a strong shaft around a weak or mismatched joint. The weakest link still decides how much torque the system can tolerate.
When checking joint compatibility, confirm these points:
- The transmission yoke and pinion yoke accept the same joint series, or an appropriate conversion joint is available.
- The joint has the required cap diameter and overall span for each yoke.
- Retaining method matches the yoke, whether it uses clips, straps or another positive retention system.
- The selected joint suits the torque, tyre and driving style of the finished car.
Driveline Angles and Vibration
A tailshaft can be strong enough for the job and still create an annoying vibration if the angles are wrong. Universal joints do not rotate at a perfectly constant speed when operating at an angle. Correctly arranged angles allow those speed changes to cancel each other out. Poor alignment lets them stack up, which can be felt through the floor, seat and shifter.
Ride height is the key reference point. Measuring with the chassis hanging at full droop may produce a combination that looks fine in the shed but vibrates on the road. Check the transmission output angle, tailshaft angle and pinion angle with the vehicle sitting at the height it will actually run.
The aim is not necessarily for every component to be dead level. In fact, universal joints need a small working angle. What matters is that the transmission and pinion relationship is appropriate for the suspension layout and the joint angles are controlled. Leaf-spring rear ends, four-link setups and other custom arrangements can behave differently under load, so the rear end location system has a direct effect on driveline consistency.
If a vibration appears after a gearbox swap, lowered ride height, altered engine mounts or differential change, do not assume the tailshaft itself is out of balance. Recheck the angles and shaft length first. Changes that look minor at the bellhousing or pinion can have a major effect at speed.
Match the Differential to the Build
The differential is the final torque multiplier in the driveline, so its centre, gears and axles need to match the engine and transmission. A short gear ratio can make a hot rod feel fierce away from the lights, but may raise engine revs on longer highway runs. A taller ratio settles cruising but can blunt response with a mild engine or tall tyre.
Transmission choice changes the equation. An overdrive gearbox gives more flexibility to run a responsive differential ratio without making the car busy at cruising speed. A traditional three-speed automatic or manual may need a more considered compromise, particularly if the car spends serious time on Australian highways.
Axle strength deserves the same attention as the centre. More grip and more torque place greater load on axle splines, wheel studs and hubs. A rear end that served a mild six-cylinder donor car may not be the right long-term answer behind a strong V8. Build around the intended power level and traction package, not just what happens to be under the car today.
Order Driveline Parts With Clear Measurements
Good measurements make parts selection far more straightforward. Record the transmission output type, rear pinion connection, measured shaft length at ride height, available tunnel clearance and likely suspension movement. Photos of the yokes, flange faces and existing parts can also help confirm what you are working with.
For custom and restoration builds, part numbers alone rarely tell the whole story. Cars often carry decades of modifications, donor components and previous repairs. That is why Traction Auto Parts backs its performance range with practical technical knowledge built through more than 30 years around classic and custom vehicles.
A properly planned driveline does not need to be flashy. It needs to take the torque, clear the chassis, run smoothly and let the car feel planted every time the throttle comes on. Measure carefully, choose genuine quality components that suit the complete build, and give the driveline the same attention as the engine sitting in front of it.
