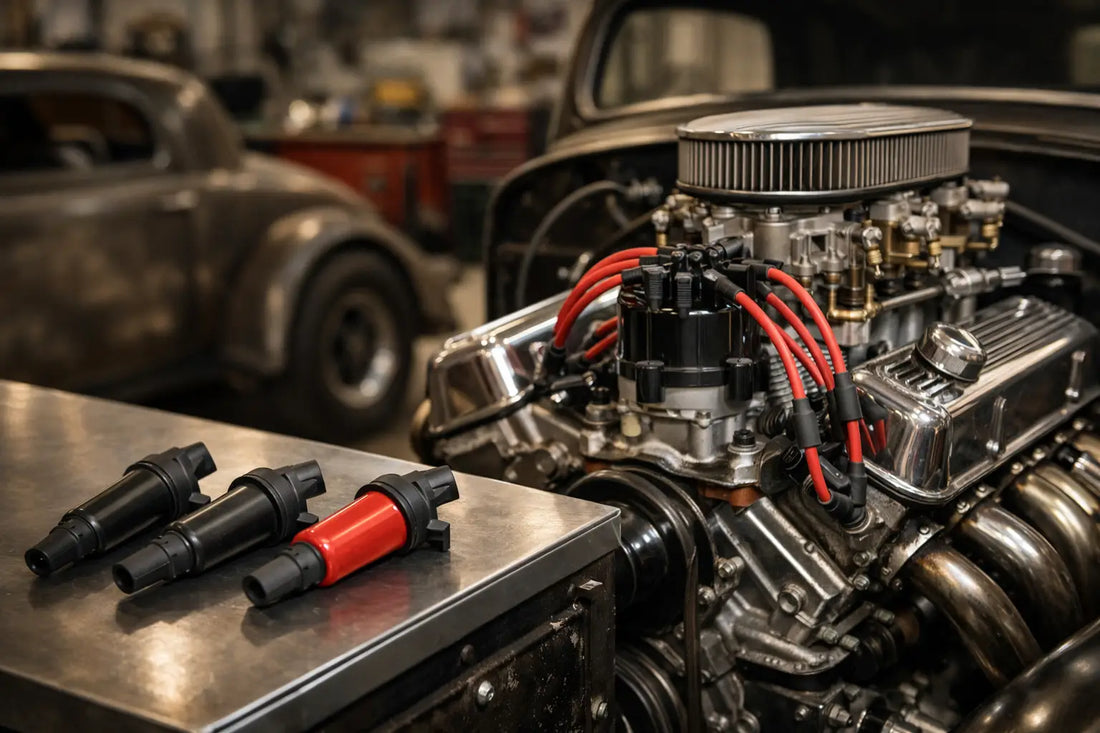

How to Match Ignition Coils to Your Engine
A coil that physically bolts onto your firewall can still be completely wrong for the ignition system behind it. Knowing how to match ignition coils comes down to more than choosing a shiny canister coil or the highest advertised voltage. Your Holden V8, Windsor, Chev small-block or Mopar build needs a coil that agrees with its trigger, module, supply voltage and intended rpm range.
Get that combination right and the engine fires cleanly under load, starts reliably and carries spark when cylinder pressure climbs. Get it wrong and a new coil may produce a weak spark, run hot, foul the plugs or overload the ignition module.
Start With the Ignition System, Not the Engine Capacity
The engine tells you the basic application, but the ignition type determines the coil specification. Before ordering anything, establish what actually triggers the spark. A carburetted 308 with original-style points needs a very different coil from the same engine fitted with an electronic distributor. An EFI V8 using a crank trigger and ECU-controlled ignition is another step again.
Most classic and performance builds fall into one of these arrangements:
- Points distributor with a ballast resistor or resistance wire
- Points distributor running full battery voltage
- Electronic distributor with an inductive ignition module
- Capacitor-discharge, or CD, ignition system
- ECU-controlled EFI ignition using individual coils or a coil pack
Points Ignition: Check Whether It Is Ballasted
Many older Holden, Ford, Chrysler and American V8 ignition systems use a ballast resistor or factory resistance wire. During normal running, the coil receives reduced voltage. During cranking, a separate feed often supplies closer to full battery voltage to help the engine start.
These systems require a coil designed for ballasted operation. Fitting a full 12-volt coil to a ballasted supply can leave you with a weak spark. Fitting a low-resistance coil intended for a ballast system onto a full-voltage points circuit can overwork the points and shorten component life.
The useful question is not simply, “Is this a 12-volt coil?” Most automotive coils ultimately operate in a 12-volt electrical system. The real question is whether the coil is intended to run through resistance during normal operation, and whether that matches your existing wiring.
Electronic Distributors Need a Compatible Primary Resistance
Electronic distributors generally use a module to switch the coil rather than breaker points. The module controls coil dwell more consistently, which can deliver better spark stability at rpm. However, the module still has a resistance limit.
Primary resistance is measured across the coil’s positive and negative terminals. A lower primary resistance allows more current to build in the coil, which can increase spark energy when the system is designed to handle it. But too little resistance can draw excessive current and damage the module. Too much resistance can limit current and leave spark energy on the table.
For an electronic distributor conversion, use the coil type nominated for that distributor or ignition module. If the instructions specify a range, choose within that range rather than chasing a generic high-performance claim on the box.
How to Match Ignition Coils by Voltage and Resistance
Voltage supply and coil resistance are the first hard checks for any conventional canister-style coil. They matter more than paint colour, mounting style or a dramatic voltage figure.
A full-voltage coil is intended to receive approximately system voltage while the engine is running. A ballast-type coil is intended to operate with resistance in the feed circuit. Inspect the vehicle wiring, identify any external resistor and confirm whether the ignition switch has a crank bypass circuit. On a restored vehicle, do not rely solely on what the factory diagram shows. Previous owners may have changed the distributor, wiring or ignition switch decades ago.
Primary resistance is only one part of the picture, but it is a decisive compatibility check. Measure it with a quality multimeter or refer to the coil manufacturer’s published figure. Secondary resistance, measured between the high-tension tower and a primary terminal, can help verify coil condition, yet it is not a universal performance ranking. Coil design, turns ratio and insulation quality vary between brands and ignition types.
A useful rule for classic builds is simple: match the coil to the ignition system’s stated primary-resistance requirement, then make sure the vehicle’s running voltage and resistor arrangement support it.
Match the Coil to the Way You Use the Engine
A stock cruiser and a hard-pulling street machine do not ask the same thing of an ignition system. Cylinder pressure rises with compression, boost and aggressive cam timing. Higher rpm gives the coil less time to charge between firing events. Both conditions demand more from the ignition.
For a mild carburetted 253, 302, 308, 351 or small-block Chev, a quality replacement coil matched to the correct distributor and voltage arrangement is often the smart choice. Consistent spark, dependable starting and clean cruising matter more than a catalogue headline figure.
A modified V8 with higher compression, a larger cam, forced induction or sustained rpm needs an ignition package capable of maintaining spark energy under load. That may mean a matched electronic distributor and coil, or a CD ignition box with the coil specifically intended for CD operation. A conventional inductive coil is not automatically suitable for a CD box, even if the terminals look identical.
EFI engines need the same discipline. If the ECU is designed for smart coils with built-in igniters, use that type. If it controls dumb coils through an external igniter, select coils and drivers that work as a set. Coil-near-plug and coil-on-plug conversions can tidy up high-tension lead routing, but they also need the correct ECU dwell settings, connectors and mounting solution.
One Coil, Multiple Coils or a Coil Pack?
Distributor engines commonly use one coil and distribute the spark through the cap and rotor. That arrangement suits period-correct restorations and plenty of tough street V8s. The coil must have enough charging time at the engine speed you intend to run, especially when paired with a performance ignition system.
Waste-spark coil packs fire two cylinders at once, with one spark occurring on the compression stroke and one on the exhaust stroke. They must match the engine’s firing strategy and trigger arrangement. Individual coils give each cylinder its own spark event and are common on aftermarket EFI builds, but coil count alone does not guarantee a better result. The ECU, trigger wheel, dwell control and coil specification must all agree.
If you are converting an old-school engine to EFI, start with the ECU manufacturer’s approved coil options. It removes guesswork around dwell control and ignition drivers, which is where many otherwise tidy builds come unstuck.
Do Not Ignore Terminals, Leads and Mounting
Once the electrical match is sorted, check the practical fitment. A coil may use a conventional high-tension tower, a socket for a plug lead, or an integrated boot that sits directly on the spark plug. Distributor coils also differ in terminal markings, connector styles and case dimensions.
For a canister coil, confirm the bracket diameter, tower orientation and clearance around the distributor, intake manifold and bonnet. Keep lead routing clean and use leads suited to the ignition system. High-output ignition components can expose weak, aged leads, tired distributor caps and poor plug connections that were previously getting by.
Heat and vibration also matter. Mounting a coil close to exhaust heat can shorten its working life and create inconsistent performance when the engine bay gets hot. Choose a location that suits the coil style and your build layout without placing unnecessary strain on terminals or leads.
Common Coil-Matching Mistakes
The most common mistake is treating every aftermarket coil as an upgrade. A high-energy coil only helps when the rest of the system can charge and trigger it properly. A mismatched coil can be worse than a sound standard-spec unit.
Another trap is copying a mate’s setup without accounting for different wiring. Two similar 351s may have entirely different ignition feeds, distributor modules and intended rpm ranges. The same applies to a factory-style restoration versus a stroked street engine with electronic ignition.
Avoid mixing components based on marketing labels alone. “High performance”, “racing” and “45,000 volts” do not identify primary resistance, CD compatibility or required dwell. Read the manufacturer specification and match the coil to the actual ignition hardware on the car.
Finally, do not diagnose every miss as a coil failure. Spark plugs, leads, cap, rotor, ignition feed, module, earth connections and fuel tune can all produce symptoms that look like a tired coil. Confirm the system before replacing parts.
Build the Ignition Package as a Set
The best ignition setup is a matched package: correct voltage feed, suitable coil resistance, compatible trigger or module, healthy leads and plugs appropriate for the engine combination. That approach works whether you are keeping an EH Holden honest, waking up a Clevo-powered street car or wiring EFI into a hot rod.
When checking parts for a classic or performance build, have the engine, distributor or ECU model, ignition box details, ballast-resistor arrangement and intended use ready. Traction Auto Parts can help narrow the choice to quality components that make sense for the combination, not just the catalogue photo. Match the coil properly and the rest of the ignition system has the chance to do what it was built to do.
