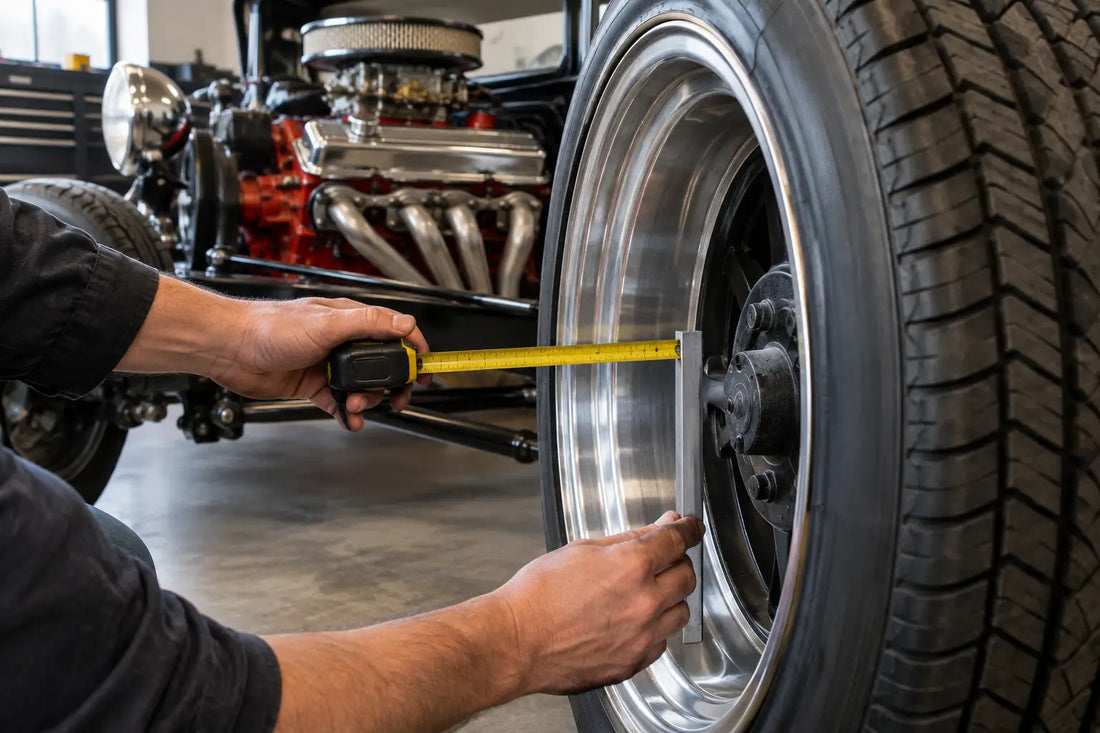

How to Measure Wheel Backspacing Accurately
A wheel can look spot-on under an FC Holden, early Falcon or tough Chev-powered hot rod, yet be completely wrong where it counts. A few millimetres of extra inner clearance can decide whether the rim clears the steering arm and suspension, while too little can leave the tyre sitting hard against the guard. Knowing how to measure wheel backspacing takes the guesswork out of ordering wheels for a serious build.
Backspacing is one of the numbers that matters most when you are changing wheel width, upgrading brakes or chasing a better stance without compromising fitment. Measure it correctly and you can compare your current wheel against a new option with confidence.
What wheel backspacing actually means
Wheel backspacing is the distance from the wheel's hub mounting face to the inner edge of the wheel rim - the side closest to the suspension, chassis and brakes when fitted.
Think of it as the wheel's inboard position. More backspacing moves the wheel further inward. Less backspacing moves it outward toward the guard.
That measurement works alongside wheel width and offset. Two wheels can share the same backspacing but have different widths, so their outer position at the guard can be very different. Likewise, a wheel with the same nominal width can sit in a different place if its backspacing changes.
For classic Holdens, Falcons, V8 street machines and custom chassis cars, this matters because factory clearances are often tight before you add wider rubber, larger brakes, different front ends or altered rear ends.
Tools you need to measure wheel backspacing
You do not need a specialist measuring rig. Take the tyre off the wheel for the most accurate reading, then use a straightedge long enough to span the rim, a tape measure or steel ruler, and a square if you have one.
A flat length of steel, aluminium box section or a quality straightedge works well. Avoid a bowed timber offcut. It can introduce enough error to turn a close fitment into a frustrating one.
Measure in millimetres if you are comparing modern wheel specifications, or inches if that matches the wheel supplier's listing. Record both where possible. One inch equals 25.4 mm.
How to measure wheel backspacing step by step
1. Remove the tyre where possible
The wheel needs to sit flat and the measuring straightedge needs to contact the wheel lip, not the tyre sidewall. A tyre can distort the reading and conceal the actual rim edge.
If you are checking a wheel that is still fitted with a tyre, treat the result as a rough reference only. For a wheel purchase or a tight brake-clearance decision, measure the bare wheel.
2. Lay the wheel face-down on a protected surface
Place cardboard, carpet or a clean mat on the floor, then lay the wheel with its visible front face down. The rear, or suspension side, of the wheel should be facing up.
This puts the hub mounting pad below the plane of the rear wheel lip, which is exactly what you need to measure. Make sure the wheel is stable and sitting level rather than resting on a centre cap or raised design feature.
3. Span the rear wheel lip with a straightedge
Lay the straightedge across the back of the rim, from one rear lip to the other. This is the inboard side of the wheel once it is bolted to the car.
Keep the straightedge square across the rim. Do not position it over a valve stem, balance-weight residue or a damaged section of lip. Take a second reading 90 degrees around the wheel if the rim has seen a hard life or you want to verify the result.
4. Measure down to the hub mounting face
Measure vertically from the underside of the straightedge down to the flat mounting pad where the wheel contacts the hub or brake rotor. That number is the wheel's backspacing.
Use a square against the straightedge to keep the tape or ruler perpendicular. Measuring on an angle can easily add several millimetres, particularly on a deep-dish wheel.
Write down the result, along with the wheel's nominal width, diameter, stud pattern and centre bore. A note such as “15 x 8, 4.5-inch backspacing” is far more useful than simply knowing it is an 8-inch wheel.
Measure the right rim edge
This is where plenty of wheel measurements go wrong. Backspacing is normally taken from the hub mounting face to the outermost rear rim lip. However, wheel designs vary, and published specifications occasionally use a slightly different reference point.
The practical fix is simple: measure your existing wheel in the same way the prospective wheel supplier specifies theirs. If a listing provides a backspacing figure, confirm whether it is measured to the outer lip and whether the figure is in inches or millimetres.
Do not assume a nominal 8-inch wheel measures exactly 8 inches across its outside edges. Nominal width refers to the bead-seat width. The overall lip-to-lip width is usually wider, which is why measuring the physical wheel beats relying on a calculation alone.
Backspacing versus offset
Backspacing and offset describe related dimensions, but they are not interchangeable.
Offset is the distance between the wheel centreline and its mounting face. Positive offset places the mounting face toward the outer face of the wheel and generally moves more of the wheel inward. Negative offset places the mounting face toward the inner side and gives the wheel a deeper dish.
Backspacing is more direct when you are checking clearances on an older car because it tells you how far the wheel extends inboard from the mounting face. That is the area competing for room with calipers, tie rods, upper arms, leaf springs, coilovers and inner guards.
As a cross-check, the basic calculation is:
Backspacing = half the wheel's actual overall width + offset
Use millimetres for both figures. The key word is actual: measure the wheel lip-to-lip rather than using its nominal width. This formula is handy for comparing specifications, but a physical measurement is still the best answer for a wheel already in your hands.
What changes when you alter backspacing?
Increasing backspacing on the same-width wheel pulls the wheel and tyre inward. That can improve outer guard clearance, but it may reduce room around brake hardware, suspension components and steering parts.
Reducing backspacing moves the wheel and tyre outward. It can create welcome clearance on the inside, yet it may bring the tyre closer to the guard lip, particularly through steering travel at the front or suspension movement at the rear.
Wheel width changes both sides of the equation. Moving from a 7-inch to an 8-inch rim adds width on the inside, outside or both, depending on the new backspacing. That is why “one inch wider” tells you almost nothing by itself.
Check backspacing against the whole package
Before settling on a wheel specification, compare your measured wheel with the space available on the car. On the inner side, inspect clearance to the brake caliper, steering arm, tie rod end, control arm, shock absorber, spring and chassis rail. At the rear, check the leaf spring, inner tub, shock and any nearby suspension hardware.
On the outer side, look at the guard line and consider how much wider the chosen tyre will be than the current combination. A wheel that clears while the car is sitting still may not represent its position through steering movement or suspension travel.
Brake upgrades deserve special attention. Backspacing tells you where the wheel sits overall, but it does not guarantee spoke-to-caliper clearance. A wheel can have the correct backspacing and still foul a larger caliper because of its spoke shape and internal barrel profile.
For a custom build, make a simple fitment record before buying: current wheel size, current backspacing, tyre size, measured inner clearance and measured outer clearance. It gives you a solid baseline when comparing wheel options, rather than relying on a mate's setup that may have different brakes, suspension or rear-end width.
Common measuring mistakes to avoid
The usual mistake is measuring from the front of the wheel instead of the rear lip. Another is using the tyre as the reference point, which gives a tyre clearance measurement, not wheel backspacing.
Also watch for the centre cap and wheel design. The mounting face is the flat surface that contacts the hub, not the end of a protruding cap or a decorative section around the centre bore. Finally, do not round a close measurement too aggressively. A 4.75-inch and 5-inch backspacing differ by 6.35 mm, which can be meaningful on a tight front end.
A correct wheel backspacing measurement gives you a proper starting point for a clean, hard-working fitment. Take the reading from the wheel you know fits, keep your measurements consistent, and choose the next rim around the clearances your build actually has - not the numbers someone else ran on a different car.
