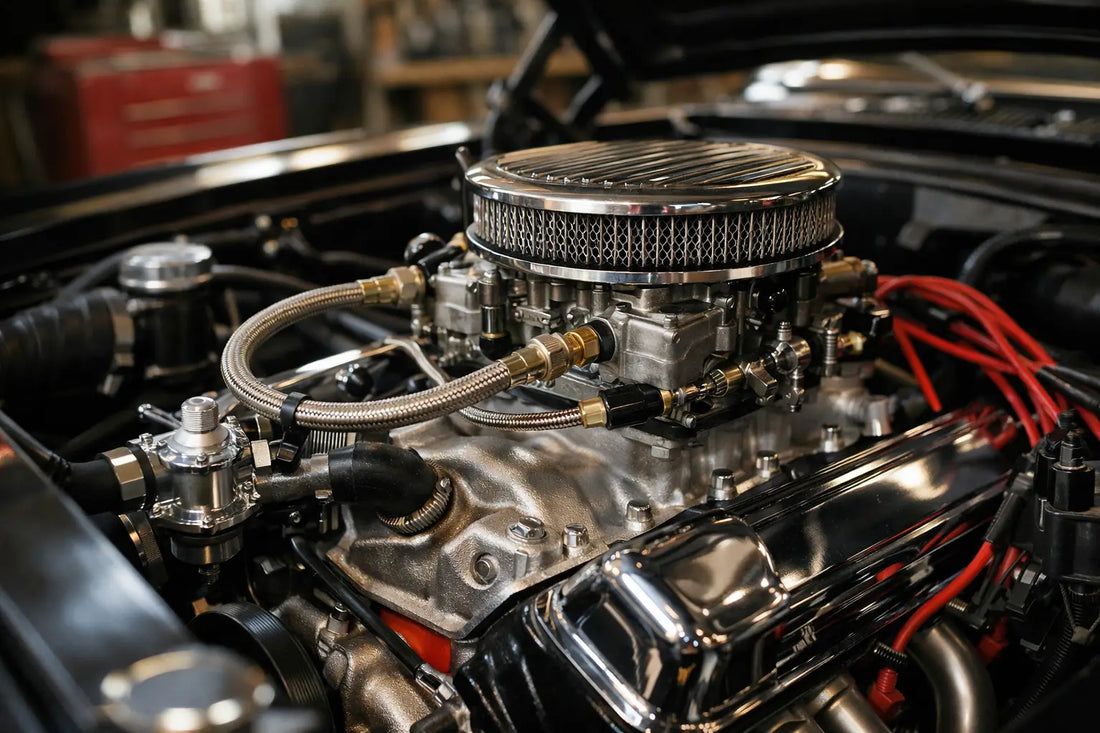

How to Route Fuel Lines on a Classic V8
A fuel system can have the right pump, quality filter and a serious carburettor or EFI throttle body, then still cause grief because the plumbing was treated as an afterthought. Knowing how to route fuel lines properly is what turns a collection of good parts into a reliable system that feeds your engine cleanly, stays clear of heat and looks right underneath a proper classic build.
For a Holden, Ford, Chev, Mopar or hot rod, the best route is rarely the shortest route. It is the route that protects the line, allows sensible servicing and suits the fuel system your engine actually needs.
Start With the Fuel System Layout
Before cutting hose or bending hard line, map the full path from the tank to the engine. Include every component: tank outlet, pre-filter where applicable, pump, main filter, feed line, regulator, carburettor or fuel rail, and return line if the system uses one. This avoids the common mistake of mounting a component first and discovering later that the line has to pass too close to the exhaust or cross a moving suspension part.
A carburetted street V8 with a mechanical pump is generally a simpler feed-only layout. A high-output electric-pump carburettor setup may need a larger feed, a proper filter arrangement and a regulator positioned close to the carburettor. EFI is more demanding again. Most EFI systems use both a feed and return line, with the return carrying excess fuel back to the tank to keep fuel pressure controlled at the rail.
Think about the entire build, not just today’s engine combination. If the plan is a mild 308 now but EFI or more power later, allowing room for a return line while the car is apart can save a major rework down the track.
Choose line size before choosing the route
Line diameter needs to match the fuel demand, pump capacity and fittings used throughout the system. Running a large line does not automatically create more power, while undersizing a line can restrict a hard-working V8 at the top end. The fittings, filters and regulator must suit the chosen line too. A single restrictive fitting in an otherwise generous system can become the bottleneck.
For many classic street builds, hard line along the chassis paired with short flexible sections at the tank and engine makes sense. It gives the system a tidy, durable backbone while allowing movement where it is needed. Braided hose and high-quality EFI-rated rubber hose are useful in the right places, but they should not be used as a lazy substitute for planning the whole run.
How to Route Fuel Lines Along the Chassis
On most classic cars and hot rods, the chassis rail or a protected section of the floorpan provides the cleanest path from rear to front. The aim is to keep the line supported, accessible and separated from major heat sources and moving parts.
Start at the rear of the vehicle and assess where the tank outlet, sender and pump sit. An electric pump needs a route that does not force sharp bends immediately at its inlet or outlet. From there, run the feed forward along one side of the chassis or floorpan. Where possible, follow existing factory-style paths rather than creating a route that cuts across open underbody areas.
Keep the fuel line on the cooler side of the vehicle where the layout allows. Exhaust pipes, extractors, mufflers and tailpipes all add heat to the underbody environment. A line that looks comfortably clear on a bare shell may end up much closer once the exhaust is fitted, particularly around transmission crossmembers, rear suspension and tight engine bays. Plan with the finished exhaust in mind.
The line also needs clearance from tailshafts, steering linkages, suspension arms and handbrake hardware. A neat straight run is desirable, but not if it puts the line in the path of movement. Use smooth changes of direction rather than forcing hose into tight kinks or repeatedly bending hard line in a small area.
Use the right support points
Fuel line should be held at regular intervals with purpose-made insulated clamps or quality mounting clips. A line that is left to vibrate can rub through its outer layer, fatigue at a connection or develop an untidy sag that makes future work harder. Support is especially important near bends, joins, filters and where the route changes level.
Avoid using cable ties as the primary mounting method. They are handy for mock-up work, but they do not provide the firm, long-term support a fuel line needs underneath a street machine. Choose clamp sizes that hold the line securely without crushing hose or marking soft aluminium tube.
When passing through a panel, use a proper grommet or bulkhead fitting. This is one of those small details that separates a considered fuel system from one that will become troublesome as the car is driven and the body moves over time.
Hard Line, Braided Hose or Rubber Hose?
Each material has its place, and the right choice depends on the vehicle, the fuel type and the system pressure.
Hard line is a strong option for long chassis runs. Steel line is tough and traditional, while aluminium tube is popular on custom builds because it is lighter and easier to form. It needs careful support and thoughtful bends, particularly on a car that sees regular road use. Hard line gives a clean, period-correct appearance on many classic V8s and keeps the underbody installation organised.
Flexible hose is best kept for short sections where movement or component removal demands it. At the engine, a short hose section can accommodate engine movement and make carburettor or fuel rail removal more straightforward. At the tank, it can simplify the connection between a fixed chassis-mounted line and the tank outlet.
For EFI, make sure every hose, fitting and filter is suitable for EFI pressure and the fuel being used. Carburettor hose is not automatically suitable for an EFI conversion just because the diameter is right. Match the hose type to the job, then match the fittings to the hose. Mixing hose and fittings from different systems without checking compatibility is where many otherwise tidy builds come unstuck.
Plan the Engine Bay Last, Not First
The engine bay is where builders often focus first because it is visible, but it should be the final part of the route to resolve. The underbody path dictates where the line enters the bay, and that entry point should allow a clean run to the engine without draping hose across the front of the block or over hot components.
On a carburettor setup, aim for a route that reaches the fuel pump, regulator or carb inlet with minimal hose length and no unnecessary loops. A regulator should be positioned so the plumbing is direct and serviceable, rather than tucked into a spot that looks clean but makes access painful.
On an EFI V8, the feed and return should arrive at the rail area in a way that keeps both lines clear of extractors and avoids awkward crossover paths. Many aftermarket fuel rails offer different inlet and outlet positions, so confirm the rail configuration before finalising the chassis-side plumbing. The best rail for the engine is not always the one that creates the cleanest line route in a particular engine bay.
If the engine runs a mechanical pump, leave enough room to remove the pump and connect the line without having to dismantle half the front accessory drive. Small access decisions make a big difference when the car is being maintained years after the initial build.
Don’t Forget the Return Line
A return line is not just an EFI detail. Some carburettor combinations, bypass regulators and high-performance fuel systems also benefit from a return-style layout. The return lets excess fuel travel back to the tank rather than being held against a dead-ended system, which can help maintain more consistent pressure in demanding applications.
Where a return is required, route it alongside the feed line using the same mounting strategy. Keeping both lines parallel looks professional and makes the system easy to trace later. Do not assume the tank has a suitable return provision, though. The tank, sender and pickup arrangement must all support the system you are building.
For EFI conversions on classic Holdens, Falcons, early Mustangs, Chevs and hot rods, fuel supply is a package. Tank outlet, pump choice, line size, filters, rails, regulator and return capacity need to work together. Picking individual parts without considering the complete flow path is a fast way to create compatibility headaches.
Build for Serviceability and a Clean Finish
A well-routed fuel system should be easy to understand at a glance. Filters need to be reachable for replacement. Unions and fittings should be accessible enough to inspect. Lines should not disappear behind brackets or be trapped above components that make simple work unnecessarily difficult.
Before making the final connections, step back and inspect the route from every angle. Check for sharp edges, tight bends, low-hanging sections and places where the line could contact another component. Look at it as if you were tracing a fault later with the engine in place and the car fully assembled. If the layout is hard to follow now, it will be worse once the build is finished.
The cleanest fuel line route is not always the flashiest one. On a tough street-driven V8, the win is a system that supplies fuel consistently, stays neat under the car and leaves you with access when the build evolves. Choose compatible, quality-tested fuel system parts from the start, take the time to mock up the full path, and your classic will have plumbing that works as hard as the engine it feeds.
