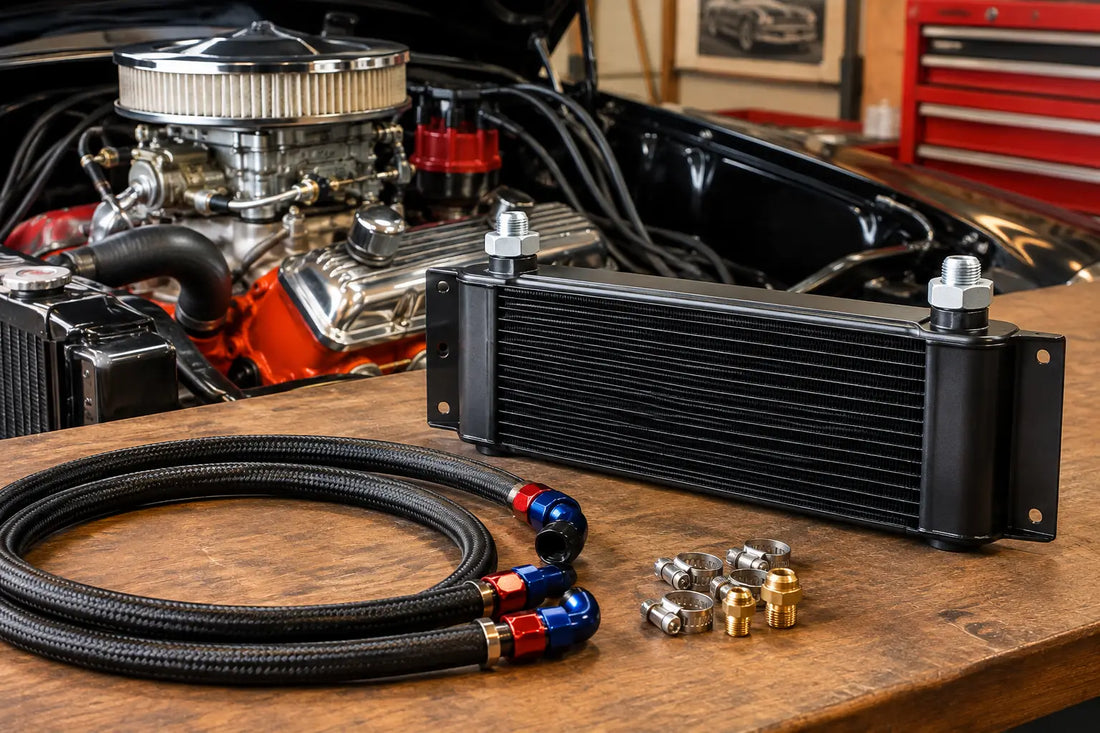

How to Select a Transmission Cooler for Your V8
A transmission cooler is cheap insurance compared with rebuilding an overheated automatic. Whether you are cruising an HQ Holden, building a tough small-block Chev hot rod or waking up an old Ford V8, knowing how to select transmission cooler capacity and layout protects one of the hardest-working parts of the driveline. The right unit keeps fluid temperature under control without restricting flow, creating leak points or crowding an already busy engine bay.
Automatic transmission fluid does more than lubricate gears. It carries heat away from clutches, bands, valves and the torque converter. More converter slip, more power, heavier vehicles and slow traffic all load the fluid harder. Once heat builds, fluid degrades quickly and shift quality can suffer. A properly sized external cooler gives that heat somewhere to go.
How to Select a Transmission Cooler by Build Type
Start with the vehicle's actual workload, not just the badge on the grille. A stock cruiser that sees open-road kilometres has different cooling needs to a cammed 350 Chev street machine that spends Saturday nights in stop-start traffic. Likewise, a tall-geared V8 with a high-stall converter produces more transmission heat than a mild engine with a near-stock converter.
For a lightly modified classic driven mainly on the highway, a compact stacked-plate or plate-and-fin cooler can be enough when paired with a sound factory radiator heat exchanger. A heavier car, a warmed-over V8, a higher-stall converter or regular summer cruising calls for more cooling area. If the build makes serious torque, runs a performance automatic or sees repeated hard acceleration, choose a larger high-efficiency cooler rather than trying to make a small unit do a big job.
Think about these build factors together:
- Vehicle weight and how often it carries passengers, gear or a loaded boot
- Engine torque, power upgrades and the way the car is driven
- Converter stall speed and transmission type
- Slow traffic, summer temperatures and other low-airflow conditions
- Available mounting area with clean airflow
Cooler Design: Tube-and-Fin vs Stacked Plate
Transmission coolers are commonly available in tube-and-fin and stacked-plate designs. Both can work well when correctly matched to the vehicle, but their construction affects how they shed heat and how much space they need.
Tube-and-fin coolers are a familiar, straightforward option for mild street applications. Fluid travels through a tube while fins increase the surface area exposed to air. They are often a sensible choice for a stock-style restoration or cruiser where packaging is tight and transmission heat is moderate.
Stacked-plate coolers use a series of internal plates and turbulators to move heat out of the fluid efficiently. They are compact for their cooling capacity and suit modified V8s, performance automatics, high-stall converters and heavy street machines. For hard-working classic builds, this is usually the design worth prioritising.
Do not choose on cooler dimensions alone. A compact stacked-plate core can outperform a larger basic tube-and-fin unit. Product ratings are useful as a starting point, but the real decision comes back to the vehicle, transmission, converter and airflow available.
Why airflow matters as much as core size
A cooler only works when air moves through its fins. The front of the radiator support is usually the strongest location because it receives fresh air before it has been warmed by the radiator. A cooler mounted behind the grille, with a clear path for air to pass through the core, will do more work than a larger unit tucked into a stagnant corner of the engine bay.
On a classic Holden, Ford or Mopar, check radiator support shape, grille clearance, horn placement and any existing engine oil cooler before ordering. Hot rods can offer more flexibility, but the exposed chassis and compact radiator packages often make planning even more important. Measure the core area and allow room for fittings, hoses and gentle bends rather than measuring the cooler body alone.
A fan-assisted cooler can help where natural airflow is limited, particularly on a build that spends long periods crawling through traffic. It adds complexity, so it makes most sense where there is no practical high-airflow mounting position. For most street V8s, a correctly located passive stacked-plate cooler remains a clean, dependable answer.
Choose the Right Hose and Fitting Size
The cooler is only one part of the system. Hose, fittings and adaptors must suit the transmission ports and maintain a clean fluid path. Mismatched threads are common on older transmissions, especially where a gearbox has been swapped into a different chassis or already carries aftermarket adaptors.
Before selecting fittings, identify the exact transmission. A Turbo-Hydramatic, C4, C6, Torqueflite and Ford AOD-style transmission can use different thread arrangements, and there can be variations between cases. Do not rely on a quick visual check. Confirm the port thread, line size and whether the transmission case already has fittings installed.
Use transmission-rated hose and quality clamps or purpose-built fittings designed for automatic transmission fluid. Ordinary fuel hose is not the answer. Keep the hose run away from exhaust heat, sharp panel edges, moving steering components and belt drives. A cooler system needs smooth bends and secure support, not kinked lines stretched across the engine bay.
If you are retaining the radiator's built-in transmission heat exchanger, decide how the external cooler will work with it. On many street builds, fluid passes through the radiator exchanger first, then the external cooler, before returning to the transmission. The radiator can bring fluid toward operating temperature, while the external cooler removes extra heat under load. The correct routing can vary by transmission and radiator arrangement, so confirm the flow direction for your gearbox before finalising parts.
Check Compatibility With the Rest of the Cooling Package
A transmission cooler should complement the cooling package, not compete with it. On an old-school V8 build, radiator capacity, fan shroud clearance and available frontal area are already valuable real estate. Adding a cooler directly in front of the radiator may slightly reduce airflow to the engine cooling system, particularly if the core is oversized or mounted poorly.
That does not mean avoid a front-mounted cooler. It means choose a sensible core size, mount it squarely in the airflow and make sure the engine cooling system is already up to the job. A healthy radiator, proper shroud and effective fan arrangement matter even more in an Australian summer.
Consider the transmission's condition as well. A cooler will manage heat, but it will not repair worn clutches, contaminated fluid or an internal fault. If fluid has a burnt smell or the transmission is already slipping, solve the underlying issue before expecting an external cooler to transform it.
Common selection mistakes
The most common mistake is buying by universal fitment alone. Universal coolers can be excellent parts, but “universal” describes the mounting concept, not guaranteed compatibility with every transmission port, radiator support or hose path.
Another is undersizing for a high-stall converter. Converter slip makes heat quickly, especially in heavy cars and urban driving. A compact cooler that looks tidy may not provide the reserve capacity your combination needs.
Also avoid selecting a cooler purely around horsepower. Horsepower matters, but weight, converter choice, gearing and driving conditions can be just as influential. A 450hp weekend car with a tight converter and regular highway use may need less cooling than a lower-powered big-body cruiser with a loose converter in peak-hour traffic.
A Practical Buying Checklist
Before ordering, have the transmission model, vehicle model, available mounting measurements and cooler-line thread details written down. Add the engine output level, converter specification and how the car is actually driven. That information makes it far easier to choose a cooler that suits the whole combination rather than just filling a space behind the grille.
For mild restorations, prioritise tidy packaging and dependable street cooling. For modified Holden, Ford, Chev and Mopar V8 builds, lean toward a high-efficiency stacked-plate design with enough core area for the converter and vehicle weight. For hot rods and custom chassis, plan the cooler alongside the radiator, fan and grille layout before committing to brackets and hose lengths.
Traction Auto Parts backs the sort of parts decisions that matter once the bonnet is down and the car is out on the road. Choose the cooler around heat load, airflow and confirmed fitment, and your automatic will have a far better chance of staying crisp through summer traffic, long highway runs and every hard pull in between.
