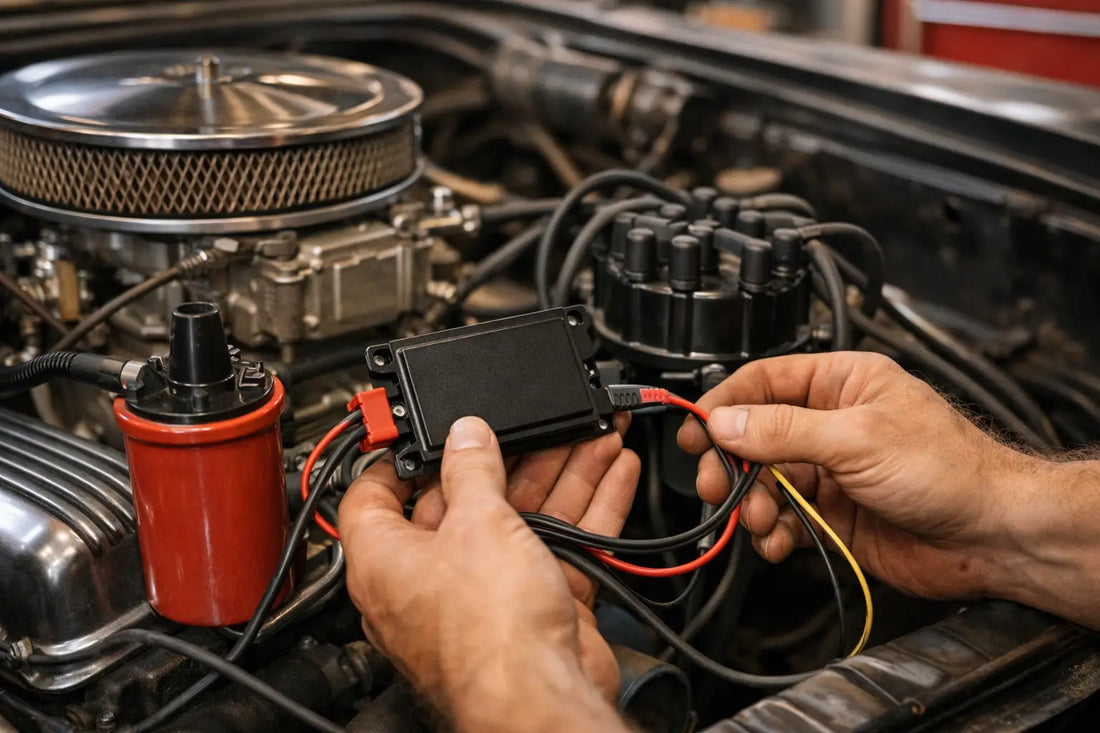

How to Wire an Ignition Module for Strong Spark

How to Wire an Ignition Module for Strong Spark

A weak or inconsistent spark can make a tough Holden V8, small-block Chev or worked Ford feel flat before you even put it under load. If you are working out how to wire an ignition module, the key is not guessing which wire goes where. Identify the ignition system first, match the correct coil and follow the terminal function for that specific module.

An ignition module is the switching brain between the distributor trigger and the coil. It receives a signal from a magnetic pickup, Hall-effect sensor or reluctor, then controls coil charge and firing. Wire it incorrectly and you can end up with no spark, poor timing stability, hot-start drama or a coil that never delivers its full punch.

Start by identifying the ignition module system

There is no universal ignition module wiring diagram. A four-pin HEI module, a Bosch module, a Ford TFI-style module and an aftermarket capacitive discharge ignition all use different terminal layouts and signal requirements. Even modules that look similar can have different pin assignments.

Before cutting, crimping or joining anything, confirm the module part number and its matching wiring diagram. Check whether your distributor uses a two-wire magnetic pickup, a three-wire Hall sensor or a factory electronic trigger. This determines what signal the module expects.

Classic and street machine builds commonly run one of these arrangements:

  • A distributor-mounted HEI module and remote coil
  • A Bosch-style module triggered by a reluctor distributor
  • A Ford electronic distributor with a TFI-style module
  • An aftermarket distributor paired with a dedicated ignition control box
The module, distributor trigger and coil must work as a set. A powerful high-output coil will not fix an incompatible trigger signal, and a quality module cannot compensate for an incorrect coil feed or poor earth path.

How to wire an ignition module step by step

The cleanest way to wire an ignition module is to separate the circuit into four jobs: switched power, coil control, distributor trigger and earth. Once you understand those jobs, the wiring diagram becomes much easier to read.

1. Supply switched ignition power

The module needs power when the ignition is in the run and crank positions. On many classic vehicles, this is where conversions go wrong. Factory points ignition wiring often uses a ballast resistor or resistance wire to reduce voltage at the coil. An electronic module and its matching coil may require a full switched 12-volt feed instead.

Check the requirements for your exact module and coil. Some systems are designed to run with a ballast resistor, while others need full battery voltage. Feeding a full-voltage coil through an old resistance wire can produce a weak spark. Feeding a coil designed for a ballast resistor with full voltage can create heat and short component life.

Use a proper switched source that remains live during cranking. Test the circuit at the wire, not only at the ignition switch, because voltage can drop through old connectors, tired fuse holders and original loom joins.

2. Connect the module to the coil correctly

Most conventional electronic ignition modules control the negative side of the coil. The coil positive terminal receives the correct ignition feed, while the coil negative terminal connects to the module's coil output terminal.

Do not rely on terminal position alone. Some coils are marked + and -, while others use BAT and TACH markings. On an HEI-style setup, BAT is normally the positive supply and TACH is the coil negative side used for a tacho signal. On a remote-coil conversion, module terminal naming may be different again.

If the vehicle runs a tacho, connect it to the appropriate coil negative or dedicated tacho output only after confirming the system diagram. A factory tacho designed for points can sometimes need a compatible signal adaptor with modern electronic ignition components. That depends on the vehicle and the ignition package.

3. Wire the distributor trigger pair without reversing it

A magnetic pickup distributor generally has two trigger wires running to the module. These wires carry a low-voltage alternating signal as the reluctor passes the pickup. Keep this pair routed away from alternator wiring, plug leads and other high-current circuits where possible.

The two trigger wires must land on the correct module terminals. If they are reversed, the engine may still start, but ignition timing can shift in the wrong direction as revs rise. That can turn a sharp street engine into a lazy, hard-to-tune combination.

Wire colours are useful clues, not proof. An old Holden, Ford or Chev may have had several ignition changes over decades, and previous owners do not always follow the book. Use the distributor and module diagrams rather than trusting existing wire colours.

Hall-effect distributors are different. They usually need a power feed, earth and signal wire, sometimes with additional terminals depending on the system. Never connect a Hall sensor as though it were a two-wire magnetic pickup. The module will not read the signal correctly.

4. Give the module a solid earth path

Electronic ignition modules need a clean, dependable earth through their mounting surface or a dedicated earth wire, depending on design. Distributor-mounted modules commonly earth through the distributor body, while remote modules may use a separate earth terminal or mounting plate.

Paint, corrosion, powder coat, loose mounting screws and old thermal compound can all interfere with module operation. On modules designed to mount to a heat sink or distributor base, use the specified thermal compound. This transfers heat out of the module and helps it survive sustained street driving and hard summer conditions.

An earth problem can be deceptive. The engine may spark on the bench or idle in the shed, then cut out when heat builds under the bonnet. Treat module mounting, clean metal contact and correct hardware as part of the wiring job.

Match the coil to the module and engine combination

Coil selection is not just about chasing the biggest advertised voltage number. The module controls coil dwell, which is the time the coil spends charging before it fires. A coil with the wrong primary resistance can overload the module or deliver a poor spark at higher rpm.

For a mild carburetted V8, a quality matched electronic ignition coil and module will usually deliver better starting, cleaner idle and more reliable spark than an old points setup. A higher-compression engine, bigger camshaft or boosted street build may benefit from an ignition package designed for greater spark energy, but it still needs the correct trigger and wiring layout.

If you are retaining an original distributor, check whether the module conversion is intended for that distributor's pickup coil. If you are fitting a complete aftermarket distributor, use the coil and module specified for that distributor where possible. Matched components remove a lot of guesswork from an ignition upgrade.

Common ignition module wiring faults

No-start faults are often blamed on the ignition module first, but the problem is frequently in the wiring around it. Start with the basics: does the module have switched power during crank, does the coil receive the supply it is designed for, and is the trigger signal connected to the right terminals?

Intermittent misfire is often caused by a weak earth, a damaged pickup lead, loose terminals or a module that cannot shed heat. If the engine dies once hot and restarts after cooling, inspect the module mounting surface and thermal compound before replacing parts.

A tacho that jumps wildly can point to coil negative wiring, poor ignition supply voltage or electrical interference in the trigger circuit. Keep trigger wiring neat, protect it from sharp edges and avoid bundling it tightly with high-current charging cables.

Timing that appears correct at idle but moves strangely as rpm rises may indicate reversed magnetic pickup wires. Confirm base timing first, then check trigger polarity against the module and distributor documentation.

Keep the wiring serviceable

A tidy ignition loom makes future fault-finding far easier. Leave enough length for distributor movement and engine rock, use quality terminals, and support the harness so it cannot rub through against rocker covers, intake manifolds or exhaust components. Label wires on a custom build, especially when the vehicle may change hands or be revisited months later.

For classic cars, hot rods and EFI conversions, a dedicated ignition feed and clearly separated trigger wiring can be one of the best reliability upgrades you make. Traction Auto Parts understands that a strong ignition system is not about flashy parts - it is about compatible components that fire the engine cleanly every time you turn the key.

The best finished setup is the one you can trace at a glance: power in, trigger signal from the distributor, coil output and a dependable earth. Get those four paths right, and the rest of the build has a far better foundation to run hard.
