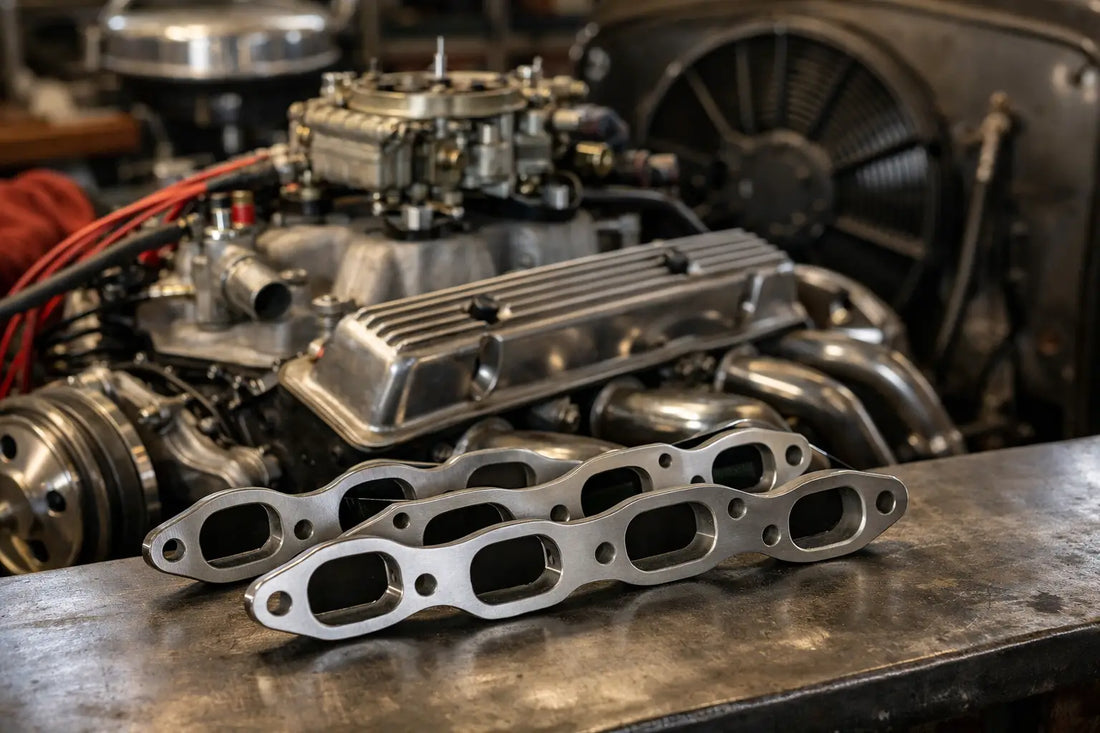

LS Header Flanges That Fit the Build
If you have ever chased an exhaust leak on an LS build, you already know the flange is not a throwaway detail. LS header flanges sit right at the point where sealing, port shape, bolt access and long-term durability all meet. Get that section wrong and even a strong set of pipes can turn into a constant source of noise, heat and frustration.
For builders working on Holden conversions, Chev-powered streeters and hot rods, header design usually gets most of the attention. Primary size, collector layout and chassis clearance matter, no question. But the flange is what ties the whole job back to the cylinder head, and that makes it one of the most important parts in the system.
Why LS header flanges matter more than people think
An LS engine can make great power with the right exhaust, but it also responds quickly to poor sealing and bad alignment. If the flange face is too thin, not machined flat, or cut with poor port accuracy, the gasket has a harder life from the start. Once heat cycles begin, the problem gets worse.
That matters on anything from a mild 5.3-litre swap to a rowdy 6.0 or 6.2 street engine. Exhaust leaks near the head are not just annoying. They can affect sound quality, create under-bonnet heat issues and make the whole setup feel second-rate, even if the rest of the build is solid.
A good flange helps in three key areas. It keeps the header seated properly against the head, gives the gasket a stable surface to seal against, and supports the primaries so the assembly stays true over time. On a vehicle that sees regular street kilometres, heat cycles and vibration will quickly expose a weak flange.
What makes a good LS header flange?
The first thing is material thickness. A thicker flange generally resists warping better and gives the header more structure where it needs it most. That does not mean thicker is always automatically better, because space around some engine bays can be tight, but in most performance applications a flimsy flange is asking for trouble.
The second point is port accuracy. LS cathedral port and rectangular port heads are not interchangeable just because they are both LS-based. The flange needs to suit the head style properly. If the cut profile is wrong, you can end up with poor transition into the primary tube, sealing issues around the edges, or both.
Flatness is just as important. A flange can look decent on the shelf, but if the sealing face is not true, you are already behind before the header even goes near the engine. Clean machining and consistent bolt hole placement make a real difference, especially on tighter builds where access is limited and you do not want to fight the bolts.
Then there is weld quality around the pipe entry. A well-made flange needs a clean transition from flange to primary, not a rough, intrusive join that interrupts flow or leaves weak spots at the weld.
Cathedral port vs rectangular port LS header flanges
This is where buyers can come unstuck if they assume all LS exhaust parts are basically the same. They are not.
Early and common LS combinations often use cathedral port heads. These ports have a taller, narrower shape, and the matching flange needs to reflect that. Later performance combinations, particularly with larger-capacity and higher-output heads, often use rectangular ports. These are broader in shape and need their own flange profile.
Using the wrong flange pattern is a bad shortcut. At best, it compromises the transition between the head and the header. At worst, it creates sealing problems and robs the setup of the clean flow path you were trying to achieve in the first place.
If your build is based around a swap or mixed-component engine, it pays to confirm the exact head style rather than relying on engine code alone. Plenty of engines have been changed, upgraded or rebuilt over the years, especially in the classic and hot rod space.
Mild steel or stainless for LS header flanges?
This comes down to the overall header build and what the car is meant to do.
Mild steel flanges are common in fabricated headers and can be a good fit for traditional street and performance combinations. They are strong, practical and suit plenty of proven exhaust setups. If the rest of the header is mild steel, matching materials can simplify the build and keep the whole assembly consistent.
Stainless flanges are popular where stainless headers are being used, particularly on cleaner street builds and vehicles where corrosion resistance matters. Stainless can look the part and hold up well, but material choice still needs to be backed by proper thickness and good manufacturing. Stainless is not a magic fix for poor design.
The better question is not just mild steel or stainless. It is whether the flange has been made properly for the job. Material matters, but design, cut accuracy and finish matter just as much.
Fitment matters on swaps and custom engine bays
LS swaps rarely live in roomy, standard engine bays. Once you start fitting one into an early Holden, a Chev, a Ford or a hot rod chassis, room disappears fast. Steering shafts, crossmembers, starter clearance and chassis rails all start competing for the same space.
That makes flange shape and bolt access more important than many people expect. A flange can be technically correct at the port face but still create headaches if the bolt holes are awkward, the outer profile is oversized, or the tube position crowds key areas.
Compact flange design can help in tight engine bays, but it still has to maintain sealing area and strength. That is the trade-off. Trim too much for clearance and you can reduce support around the port or bolt holes. Leave too much bulk and you may make header routing harder than it needs to be.
For custom builds, the flange is not just a flat plate. It is the starting point for everything that follows in the exhaust path.
LS header flanges and gasket choice
A quality flange gives your gasket a fighting chance. A poor flange asks the gasket to cover up problems it was never meant to solve.
If the flange is flat, correctly matched to the port and properly supported by the header design, gasket life is generally better. If the flange is uneven or poorly aligned, even a decent gasket may struggle after repeated heat cycles.
Some builders focus heavily on the gasket brand while overlooking the condition of the flange face itself. That is usually backwards. The gasket is part of the sealing system, not the entire solution. On any LS exhaust build, the flange and gasket need to work together.
When to upgrade or replace LS header flanges
If you are building headers from scratch or modifying an existing setup, flange quality is worth a close look from the beginning. But there are also signs that an existing flange may be letting the combination down.
Common red flags include recurring leaks at the head, visible warping, uneven gasket marks, difficulty lining up bolt holes, or signs that the flange has been cut for the wrong port style. On older custom systems, it is not unusual to see a set of pipes that are still usable paired with flanges that have simply had enough.
That is especially true on engines that have seen years of street use, hard heat cycles or repeated removal and refitting. The pipes may still be serviceable, but if the flange face is compromised, the whole assembly becomes harder to trust.
Choosing LS header flanges for your build
The best buying decision usually comes back to four things - head style, material, thickness and intended use.
For a straightforward street car, you want a flange that seals cleanly, suits the head properly and holds its shape long term. For a tougher street machine or hot rod with a more serious engine package, flange quality becomes even more critical because the exhaust system will be under more heat and stress.
If the build is custom, think beyond the port shape alone. Consider the available space around the engine, how the primaries need to route, and whether the flange profile supports that layout without creating bolt-access problems. The right flange should make the rest of the header design easier, not harder.
At Traction Auto Parts, that is the kind of detail that matters. Builders are not just buying steel plates. They are choosing parts that need to work in the real world on classic cars, street machines and properly sorted LS conversions.
A strong LS exhaust setup starts at the head, and that means the flange deserves more respect than it usually gets. Choose the right one early, and the rest of the system has a much better chance of doing its job properly.
