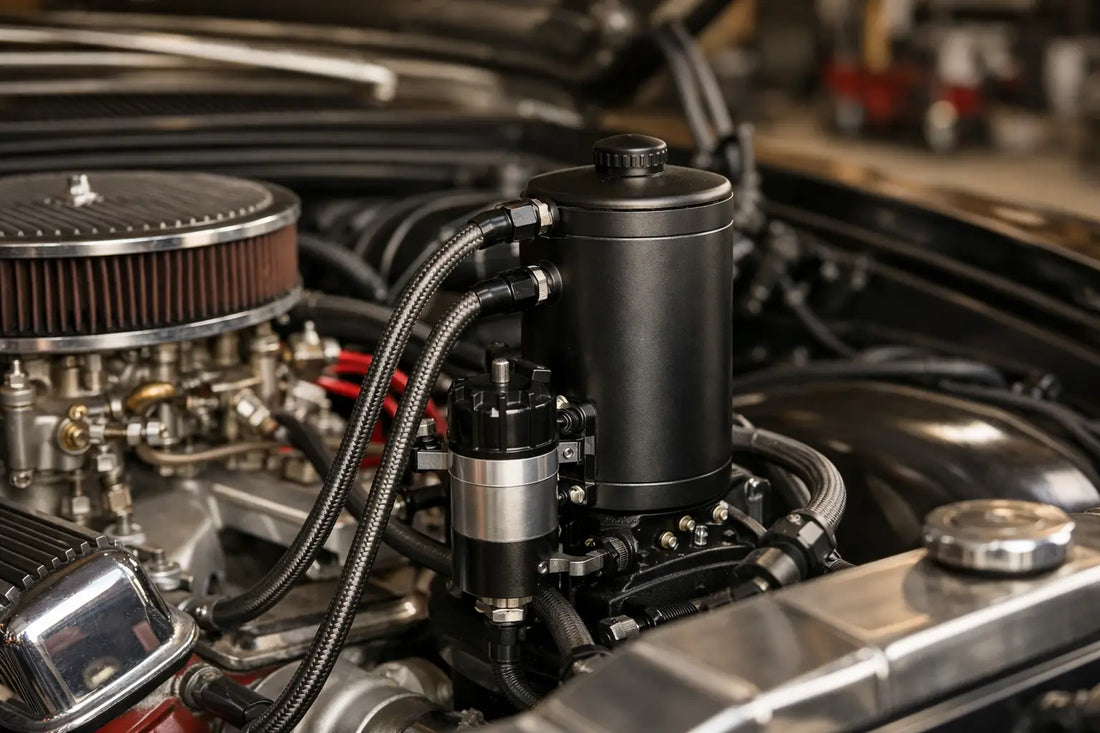

Surge Tank for EFI: Do You Need One?
If your EFI conversion runs clean in the shed but leans out when the tank gets low, corners get hard, or the throttle stays open longer than usual, you have a fuel supply problem - not a tuning problem. That is exactly where a surge tank for EFI earns its place. On classic Holdens, old Falcons, Chevs, Mopars and hot rods, the original fuel tank was never designed around high-pressure electronic fuel injection, and that mismatch shows up fast once the car is driven properly.
What a surge tank for EFI actually does
A surge tank is a small reserve tank that sits between the main fuel tank and the EFI pump. Its whole job is to keep a steady supply of fuel in front of the high-pressure pump, even when fuel in the main tank sloshes away from the pickup.
That matters because EFI systems do not tolerate air in the fuel line the way an old carburettor setup might. A carb can often mask brief supply issues. EFI cannot. When the pump draws air instead of fuel, pressure drops, the engine goes lean, and drivability suffers. Under load, that is the sort of issue that can ruin an otherwise well-sorted build.
In a typical setup, a low-pressure lift pump feeds the surge tank from the main tank. The EFI pump then draws from the bottom of the surge tank and sends fuel to the rail. Excess fuel returns back to the surge tank first, and overflow returns to the main tank. That keeps the surge tank topped up and the high-pressure side supplied.
Why classic and modified builds run into fuel starvation
A lot of older Australian muscle, street machines and custom builds started life with fuel systems built around carburettors. The tank shape, pickup location and baffling were never intended for EFI demand. Once you add a high-pressure pump, better cylinder heads, more cam, more compression or forced induction, the fuel system needs to keep up all the time, not just on a gentle cruise.
The issue gets worse when the tank is below half full, the car launches hard, or it spends time in long corners. Fuel moves around inside the tank. If the pickup is uncovered even briefly, the pump sees air. That is often why a car feels perfect one day and suddenly develops a stumble the next, even though nothing in the tune changed.
This is especially common in converted classics, hot rods with custom tanks, and older sedans running V8 EFI swaps. Plenty of people chase injectors, regulators and ECUs before realising the problem started at the tank.
When you probably need a surge tank
Not every EFI build needs one, but plenty do. If your main tank has proper internal baffling and an EFI-ready pump arrangement, you may be fine without a surge tank. But if you are working with an older tank design or a modified combination, it is often the cleanest answer.
You should seriously consider a surge tank if your build has an original carb-style tank, an external EFI pump, a history of fuel surge under load, or a combination that sees hard acceleration and spirited street use. It also makes sense when the vehicle layout limits your tank options and you want reliable fuel delivery without redesigning the whole rear of the car.
For many classic builds, the choice comes down to this: modify or replace the main tank to be EFI-ready, or add a surge tank system that gives the high-pressure pump a stable fuel reserve. Neither option is wrong. It depends on the vehicle, the available space and how far the build is going.
The main parts in a surge tank setup
A proper EFI surge setup is simple in principle, but each component has a job. The main tank feeds the system. A lift pump moves fuel into the surge tank. The surge tank acts as a buffer. The EFI pump supplies the rail at pressure. The regulator and return lines keep fuel circulating.
Capacity matters too, but bigger is not always better. A compact surge tank is usually enough to cover brief slosh events and maintain a steady supply. Going oversized can create packaging headaches without adding much value for a street-driven car.
Material and finish come down to the build and engine bay layout. Alloy units are common because they are light and resist corrosion well. Port layout matters more than looks. You want a design that makes hose routing logical and keeps plumbing tidy, especially in tighter classic engine bays.
Benefits of running a surge tank for EFI
The biggest benefit is reliability. When the car is worked harder than a stock cruiser, the surge tank helps the EFI pump stay fed with fuel instead of hunting through aerated fuel or empty line.
That turns into better consistency on the road. Fuel pressure stays stable, the engine behaves properly under load, and tuning becomes more meaningful because you are no longer chasing issues caused by supply drop-off.
It can also make packaging easier on older cars. Instead of cutting up the main tank or trying to force a modern in-tank arrangement into a vehicle that was never built for it, a surge tank gives you another way to build an EFI-capable fuel system around what you already have.
For workshop-minded builders, that is the real value. It is not a shiny add-on. It is a practical part that solves a known weakness in older fuel systems.
Where people get it wrong
A surge tank is not a band-aid for every fuel problem. If the pumps are undersized, the filters are restrictive, the wiring is poor or the return layout is wrong, the system can still underperform. The surge tank helps maintain supply, but it does not fix a badly matched fuel system.
Pump matching is a common mistake. The lift pump has to keep the surge tank full, and the EFI pump has to support the engine's demand. If either side falls short, the whole setup suffers.
Another issue is buying purely on appearance. Some tanks look the part but have awkward port placement or sizing that does not suit the intended build. For a neat result, you need to think about flow path, hose routing and the rest of the system, not just the tank itself.
And then there is the classic trap of overlooking the return side. EFI systems rely on proper fuel return. If the return arrangement is poorly planned, the surge tank may not perform the way it should.
Choosing the right surge tank for your build
Start with the vehicle and fuel system you already have. Is the main tank baffled or not? Are you running an external pump arrangement? Is the car a mild streeter, a stout V8 cruiser, or something that will regularly see hard launches and sustained load?
From there, look at port configuration, tank size and how the unit will fit the car. A well-chosen surge tank should suit the rest of the system rather than forcing compromises everywhere else. There is no point buying a tank that creates awkward plumbing, clearance issues or more complexity than the build needs.
Think about future plans as well. If the engine combo is likely to step up later, it makes sense to choose supporting fuel components with some headroom. That does not mean going overboard. It means choosing parts that will support a realistic next stage of the build.
For classic Holden, Ford, Chev and Mopar projects, this is where experience counts. Fuel delivery on an EFI conversion is one of those areas where the right parts choice saves a lot of frustration later.
Is a surge tank better than an in-tank EFI conversion?
Sometimes yes, sometimes no. An in-tank EFI setup can be a very tidy solution when the tank and vehicle allow it. It can reduce noise, simplify plumbing and package everything neatly inside the main tank.
But not every classic car has the right tank shape, depth or aftermarket support for that path. In those cases, a surge tank can be the more practical option. It gives you stable fuel supply without needing to start from scratch with the whole tank arrangement.
That is why there is no one-size-fits-all answer. The right move depends on the car, the engine combo and how the vehicle will actually be driven.
For plenty of older Australian builds, a surge tank is the difference between an EFI setup that only behaves when the tank is full and one that works properly every time you turn the key. If you are building for real street use and want fuel delivery that keeps up when the car is finally asked to perform, this is one part worth taking seriously from the start.
