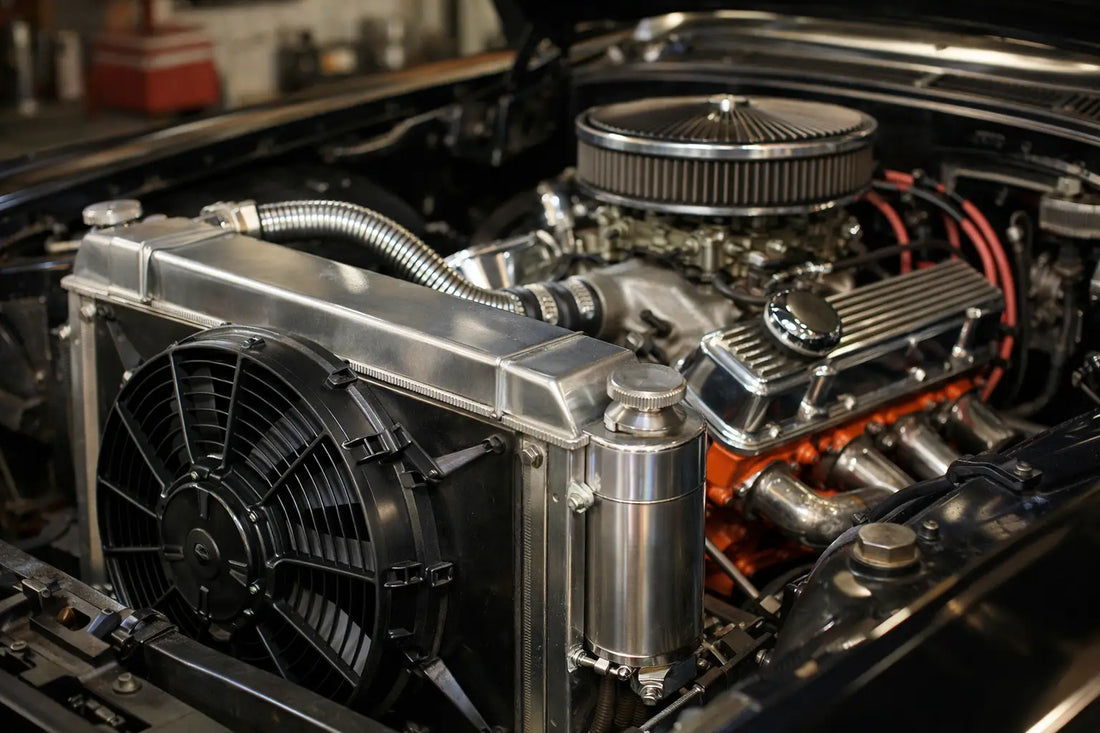

V8 Cooling Upgrade Guide for Street Builds
Nothing kills the mood of a tidy V8 build faster than watching the temp gauge climb while you’re stuck at the lights on a 35-degree day. A proper v8 cooling upgrade guide is not about chasing one miracle part. It is about building a cooling package that suits the engine, the bay, the airflow available and how the car actually gets driven.
Classic Holden, Ford, Chev and Mopar combinations all have their own habits, but the same rule applies across the board - cooling systems work best when every part is matched. Throwing a bigger radiator at an overheating engine can help, but it will not fix poor airflow, a weak water pump, bad shrouding or a system that is simply mismatched for the combo.
What a V8 cooling upgrade guide should really focus on
Most overheating problems in older or modified cars come down to balance. The radiator has to shed heat, the coolant has to move at the right rate, and the fan has to pull enough air through the core when road speed drops away. Miss one of those and the whole system starts chasing its tail.
That matters even more in Australian conditions. A street machine that behaves on a cool evening can quickly show its weak points in traffic, on long highway runs or after an engine upgrade that adds compression, timing, cubic inches or a tougher converter. Heat load goes up fast once the combo gets serious.
A smart cooling upgrade starts with the parts that do the heavy lifting, then works out from there.
Start with the radiator, but do not stop there
The radiator is still the backbone of the system. If the core is undersized, old, partially blocked or built from low-grade materials, the rest of the package is already working uphill.
For many classic and hot rod applications, an aluminium radiator is the go-to upgrade because it gives strong heat transfer, lower weight and good durability when the unit is properly built. Crossflow designs can be a strong option where the engine bay allows it, while downflow units still make sense in plenty of traditional bays where fitment is tighter or originality matters.
Core thickness is where plenty of people get caught. Bigger is not always better. A very thick core can hold more coolant, but if airflow through the fins is poor, especially at idle, the benefit drops away. In some builds, a well-designed two-row aluminium radiator with larger tubes will outwork an older-style thick multi-row unit simply because it flows air better.
Fitment matters just as much as capacity. If the radiator does not seal well to the support panel or leaves big gaps around the edges, air will take the easy path around the core instead of through it. That is wasted cooling capacity.
Choose a radiator for the real combo
A mild cruiser with a near-stock small block has very different needs to a stroker-powered street car with a tight engine bay and automatic trans. Be honest about the engine output, compression, fuel system, ignition setup and the way the car gets used. Weekend runs, summer cruising and stop-start traffic put very different demands on a cooling system than short blasts on cool mornings.
Fan choice makes or breaks low-speed cooling
If your V8 heats up in traffic but settles once the car is moving, airflow is the first place to look. This is where fan selection and shrouding separate a proper upgrade from a parts pile.
Engine-driven thermo fans and electric fans can both work extremely well, but each has trade-offs. A good mechanical fan with the right shroud is still one of the best low-speed cooling setups on a traditional V8. It is simple, proven and often moves serious air. For many classic engine bays, it remains the strongest option.
Electric fans make sense where space is limited, where accessory drive changes have altered fan position, or where a custom build needs more packaging flexibility. But fan quality matters. Cheap fans with poor blade design and weak motors often look the part and then fall over when the weather turns ugly.
The shroud is not optional. Without it, even a decent fan cannot pull evenly across the radiator face. A properly matched shroud helps the fan draw air through the full core, not just the section directly in line with the blades.
Puller vs pusher fans
As a general rule, puller fans behind the radiator are more effective than pusher fans mounted in front. Pusher fans can help in tight applications, but they can also restrict airflow at speed if they are not chosen carefully. If the build allows a puller setup with a proper shroud, that is usually the stronger path.
Water pumps and coolant flow need to match the build
A cooling system does not just need capacity. It needs stable, efficient coolant flow. That puts the water pump under the spotlight.
A tired standard pump on a modified engine can become a bottleneck, especially if the car spends time idling in traffic or sees regular hard use. High-flow water pumps are a worthwhile upgrade when the rest of the combo has moved beyond stock, but they still need to suit the engine family and pulley arrangement.
This is also where pulley ratios come into play. Underdriven accessories can free up some drag in certain builds, but slow the water pump too much and cooling can suffer at idle and low speed. It is one of those upgrades that depends on the whole package, not just the sales pitch.
Thermostat choice matters too. Running no thermostat at all is not a clever shortcut. The thermostat helps regulate coolant flow and lets the system reach stable operating temperature. In many cases, the right high-flow thermostat is better than removing it and hoping for the best.
Hoses, caps and expansion control still matter
The flashy parts get attention, but small weak points can ruin the result. Old hoses that soften under heat, a tired radiator cap that cannot hold pressure, or poor hose routing that traps air can all create trouble that looks bigger than it is.
A sound cap helps raise the boiling point of the coolant and keeps the system working as intended. Quality upper and lower hoses, especially where bends are tight, stop collapse and flow restriction. Overflow and recovery setups also help keep the system stable rather than pushing coolant out and slowly running low.
These are not glamorous upgrades, but they are part of building a cooling system you can trust.
This part of the v8 cooling upgrade guide gets overlooked - airflow management
A lot of overheating problems are not really coolant problems at all. They are airflow problems.
If hot air cannot escape the engine bay, cooling performance suffers. If the front of the car does not direct enough air into the radiator area, even a quality core will struggle. This shows up often in custom builds, hot rods and engine-swapped classics where packaging has changed from factory design.
Pay attention to the basics. Seal gaps around the radiator. Make sure there is a clean path for air to enter. Check that coolers mounted in front of the radiator are not excessive for the job, because every extra layer in front of the core adds restriction. Transmission coolers and A/C condensers can be necessary, but they have to be considered as part of the complete airflow picture.
Matching cooling parts to common V8 build types
A near-stock cruiser usually responds well to a quality radiator, proper shroud, reliable fan and fresh hoses and cap. In that sort of build, fixing weak original hardware often gets the job done without overcomplicating things.
A stout street machine with extra cubes, alloy heads, a bigger cam and tighter bay clearances usually needs more planning. That is where a stronger radiator, higher-capacity fan package, high-flow pump and better engine bay airflow become far more important.
Hot rods and custom builds are often the trickiest because packaging drives the decision-making. Radiator dimensions, hose routing, fan depth and water pump clearance all need to work together. The best result usually comes from choosing parts as a system, not one at a time.
Common mistakes that waste time and parts
The biggest mistake is assuming one part will fix everything. Overheating is often blamed on the radiator because it is the obvious part, but the real issue may be fan performance, timing, coolant flow or poor air control through the front end.
The next mistake is overbuying without checking fitment. A larger radiator or deeper fan setup is useless if it creates clearance headaches or compromises airflow. Good cooling parts need to fit cleanly and work together.
Then there is the habit of chasing cold running rather than stable running. An engine that never reaches proper operating temperature is not doing you any favours either. The goal is controlled temperature, not the lowest number on the gauge.
Choosing parts with confidence
When you are sorting a V8 cooling package, brand quality and application knowledge matter. Genuine, quality-tested parts save a lot of frustration compared with generic gear that looks close enough on paper. For classic and performance builds, compatibility is everything - engine family, mounting style, hose position, fan depth and bay clearance all need to stack up.
That is why experienced parts support counts. At Traction Auto Parts, the focus is on helping builders choose cooling components that actually suit the combination, whether it is a Holden streeter, a tough Ford, a Chev-powered custom or a traditional hot rod.
A strong V8 cooling setup is not built for bragging rights. It is built so the car keeps its head when the weather is brutal, the traffic is crawling and the engine is making the kind of heat it was built to make. Get the package right and the whole car feels better every time you turn the key.
