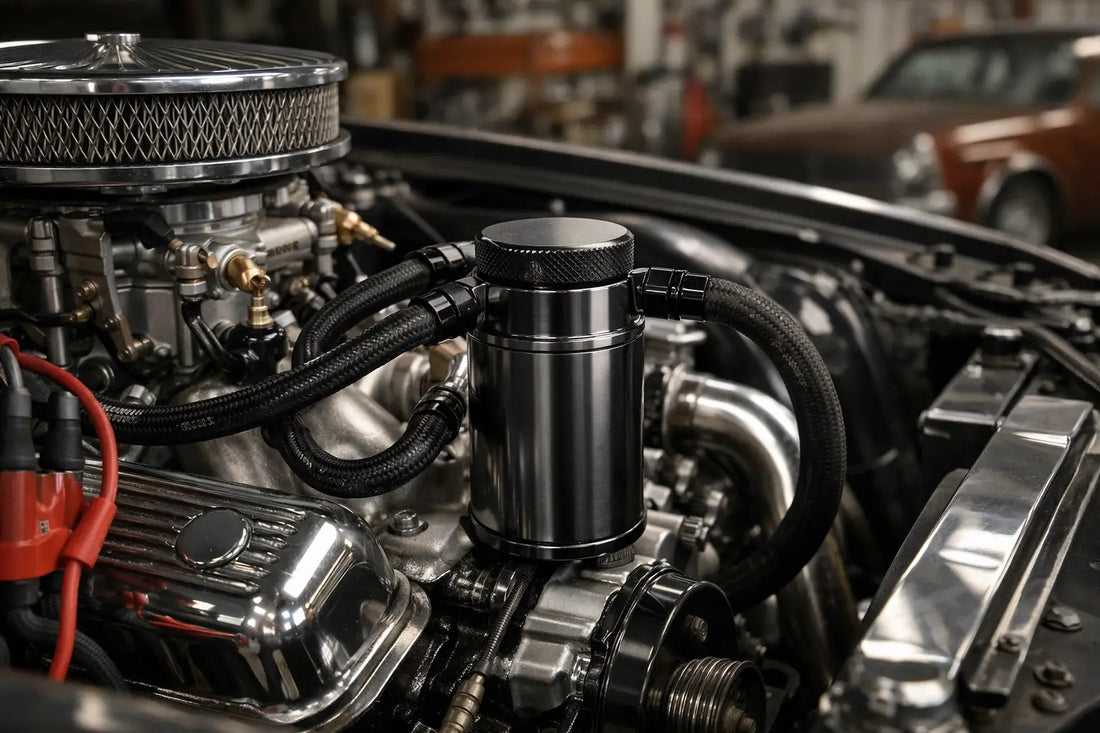

What Does a Catch Can Do for Your V8 Engine?
A healthy V8 still pushes a mist of oil through its crankcase ventilation system. On a stock cruiser, you may never notice it. Add more rpm, compression, boost or hard street driving, though, and that oil vapour can find its way into the intake tract. So, what does a catch can do? It gives that vapour a place to slow down, separate and drop its oil before the remaining crankcase gases continue through the system.
For a Holden, Ford, Chev or Mopar build, a catch can is not a magic horsepower part. It is practical insurance against oil contamination in places where you want clean air and fuel. The right unit can be a smart addition to a tough street engine, a boosted combo or an EFI conversion that is being built to stay clean and reliable over the long haul.
What Does a Catch Can Do in a PCV System?
Your engine produces combustion pressure that slips past the piston rings and enters the crankcase. This is known as blow-by. Even a well-built engine has some blow-by, especially when it is working hard. The factory positive crankcase ventilation, or PCV, system removes those gases rather than allowing pressure to build in the engine.
The catch is that crankcase gases carry suspended oil vapour. Without separation, that vapour is drawn back into the inlet system. A catch can sits between the engine’s breather or PCV outlet and the intake-side connection. Internal baffling, mesh or a separator element slows the vapour stream so oil droplets can condense and collect in the can.
The gases continue on, while much of the oil stays behind to be drained at service intervals. That is the whole job, but it can make a real difference to how clean the induction side of an engine remains.
It keeps oil out of the intake path
Oil residue can coat intake runners, throttle bodies, inlet plumbing and manifold surfaces. On an EFI engine, it can also make its way across the airflow path ahead of the cylinders. A catch can reduces the amount of oil getting there. It does not eliminate every trace of vapour, and results vary with engine condition and driving style, but it can substantially reduce the oily film that builds over time.
For carburetted combinations, the benefit is still relevant. A PCV-fed carby base, spacer or manifold can accumulate oil vapour residue as the engine cycles through street miles and wide-open-throttle bursts. Keeping that contamination under control supports a cleaner intake system and makes routine checks less messy.
It helps manage crankcase oil loss
If an engine is pulling oil mist through its ventilation circuit, that oil has to come from somewhere. A catch can collects what would otherwise be consumed through the intake path. The amount captured will depend on ring seal, rpm, engine wear, boost level and how hard the vehicle is driven.
Do not expect a catch can to cure excessive oil use caused by worn rings, damaged valve seals or a poorly matched ventilation setup. If it fills rapidly, it may be telling you something useful about the engine or the system. A catch can is a separator, not a repair for an underlying mechanical problem.
Why Modified Engines Often Need One
Factory crankcase ventilation systems are designed around the engine’s original airflow, vacuum and operating range. Once you change the combination, the demands can change sharply. A cammed V8 with reduced idle vacuum, a high-compression street engine, or a supercharged setup may move more vapour than the original plumbing was expected to handle.
That does not mean every modified engine automatically needs the biggest can available. It means the ventilation system should be considered as part of the whole build, just like fuel delivery, cooling and ignition. A small, poorly baffled can with undersized fittings can become a restriction. A properly sized, well-made unit is designed to separate vapour without choking the crankcase ventilation path.
A catch can is especially worth considering when your build has one or more of these traits:
- Frequent high-rpm street use or track-style driving
- Forced induction, where crankcase ventilation must work across changing manifold pressure
- An EFI conversion with a clean intake tract worth protecting
- Noticeable oil residue in breather hoses, throttle body plumbing or the intake manifold
- A fresh performance engine you want to keep tidy from the outset
Catch Can, Breather Tank or Vented Can?
These terms are sometimes used interchangeably, but they are not always the same thing. The right choice comes down to how the engine’s crankcase ventilation is configured.
A closed catch can remains connected to the engine’s ventilation circuit and returns cleaned gases to the intake side. This style suits many street-driven carburetted and EFI combinations because it maintains a managed PCV arrangement rather than simply releasing vapour under the bonnet.
A vented catch can, often called a breather tank, uses a filter element to vent separated gases to atmosphere. It is commonly seen on more focused performance combinations where the ventilation layout is different from a conventional closed PCV system. The can still needs sufficient capacity, effective baffling and sensible hose routing to do its job.
The key point is not to choose a can based on looks alone. Match the style, port size and hose arrangement to the engine’s breathing requirements. A polished tank with tiny fittings might suit a mild show-and-shine cruiser, but it is not automatically the right answer for a hard-working blown V8.
What to Look for When Choosing a Catch Can
Start with internal design. A proper catch can needs more than an empty aluminium container. Look for baffling, a separator plate, stainless mesh or another proven method of giving oil vapour a chance to separate. The inlet and outlet should be positioned so gases travel through the separating section rather than taking a straight shortcut from one port to the other.
Capacity matters as well. A compact can can work on a mild naturally aspirated street engine, provided it is checked regularly. Higher-output engines, boosted applications and combinations that see sustained rpm may benefit from more volume and larger hose connections. Bigger is not always better if it cannot be mounted cleanly or serviced easily, but an undersized can is frustrating from day one.
Drain access is another practical detail. You want to be able to inspect and empty the collected oil without turning routine maintenance into a fight. A dipstick, sight tube or accessible drain fitting makes it easier to monitor what the engine is producing.
Finally, think about the rest of the system. Quality oil-resistant hose, correctly sized fittings and secure mounting hardware matter just as much as the can itself. A catch can that leaks, kinks a hose or is mounted where it cannot be checked is not doing your build any favours.
Where a Catch Can Delivers the Biggest Pay-Off
A catch can earns its place where intake cleanliness and engine longevity matter. EFI street machines are an obvious example, particularly when the engine sees plenty of stop-start driving mixed with hard runs. Oil vapour can coat components that you would rather keep clean and dry, and a separator reduces that contamination before it gets there.
Carburetted V8s can benefit too, particularly with larger camshafts, higher compression, freer-flowing induction and regular spirited use. While an old-school small-block or Cleveland may not have the same sensor-driven intake hardware as EFI, clean induction parts and controlled crankcase breathing are still good workshop practice.
For supercharged engines, ventilation design becomes even more important because manifold vacuum is not constant. The system must be planned around both cruise and boost conditions, with components that suit the engine’s airflow demands. That is where selecting parts as a matched system, rather than grabbing a universal can at random, pays off.
Maintenance Is Part of the Deal
A catch can only works when it has room to collect oil. Check it regularly after the first few drives to establish how much your engine produces. A fresh engine, a high-rpm combination or a boosted setup may collect more than expected. Once you know the pattern, it becomes a straightforward item on your regular under-bonnet check.
The collected fluid may not look exactly like the oil on the dipstick. Moisture and vapour can mix with it, especially if the car does short trips. That is normal for a separator doing its work. What matters is checking the level before it reaches the outlet side and gets carried back into the intake system.
A catch can will not make a lazy engine healthy, but it is one of the smartest finishing parts on a properly considered build. Choose a unit with real internal separation, capacity that suits your V8 and fittings that match the system. For the classic street machine, tough hot rod or EFI conversion, keeping oil vapour out of the intake is the kind of detail that keeps the rest of the combination working the way it should.
