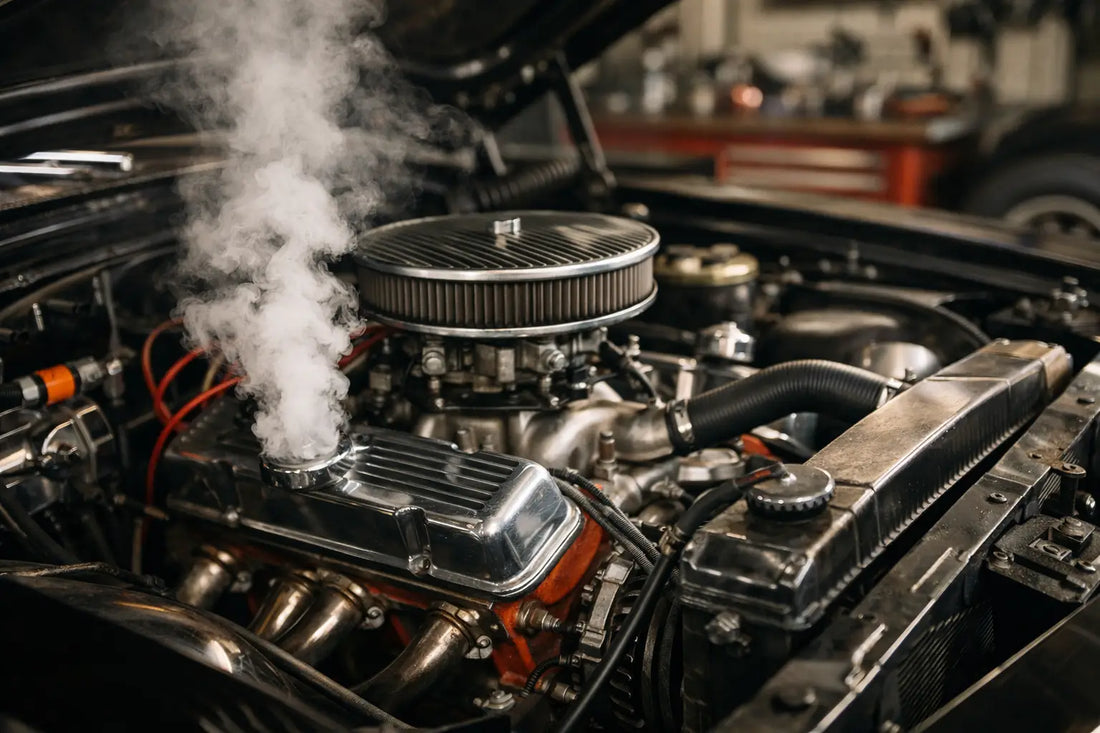

Why Is My Engine Overheating in a Classic V8?
A temperature needle climbing past its normal mark on a warm cruise can turn a tough old Holden, Ford or Chev V8 into a very expensive problem. If you are asking, why is my engine overheating, do not assume the radiator is automatically at fault. Classic cooling systems work as a complete package: coolant capacity, pressure, airflow, fan position, ignition timing and engine tune all have a job to do.
That matters even more with a stroked V8, hotter cam, alloy heads, air conditioning, a tightly packed hot rod engine bay or an EFI conversion. More power produces more heat, and old-style cooling hardware that was adequate for a mild factory engine may be working well beyond its comfort zone.
Why Is My Engine Overheating? Start With the Pattern
The conditions that cause the temperature rise are your best clue. An engine that gets hot sitting at lights has a different problem to one that runs warm only on the highway or starts climbing under hard throttle.
If it overheats at idle but settles once the car is moving, suspect airflow through the radiator. The fan may not be pulling enough air, the shroud may be missing or poorly matched, or the fan may sit too far from the shroud opening. A mechanical fan needs to work with a correctly positioned shroud, while an electric fan needs enough capacity and a proper seal around the radiator core. Air always takes the easiest path. Gaps around the fan shroud let it draw hot under-bonnet air instead of pulling fresh air through the core.
If temperature rises at highway speed, the issue is more likely coolant flow, radiator capacity or an airflow restriction at the front of the car. A blocked radiator core, collapsed lower hose, thermostat that is not opening fully, or condenser and grille arrangement restricting incoming air can all show up when the engine is working harder for longer.
When it runs hot only under load, look at the whole combination. Lean fuel mixtures, excessive ignition advance, a restrictive exhaust, insufficient radiator capacity and a high-output engine can each add heat. In many modified street machines, there is no single failed part. The problem is a cooling system that no longer matches the engine's heat output.
Check the Simple Cooling Faults First
Before selecting bigger parts, confirm the cooling system is doing the basics properly. Low coolant is an obvious cause, but the reason it is low matters. Small leaks around hose connections, the water pump, radiator tanks, heater fittings or core plugs can gradually reduce capacity. A poor radiator cap can also prevent the system from holding pressure, lowering the coolant's boiling point and allowing heat to get away from you earlier than it should.
Air trapped in the system is another common issue after component changes. An air pocket around the thermostat, cylinder heads or heater circuit interrupts coolant circulation and can create erratic gauge readings. On engines where the radiator sits lower than part of the engine, the fill and recovery arrangement needs particular attention.
The thermostat deserves a proper look too. It is not there to make the engine overheat. Its job is to regulate warm-up and control coolant flow as temperature rises. A thermostat stuck shut, opening late or fitted incorrectly will cause trouble. Running without one is not automatically the answer either. The cooling system was designed around controlled flow, and removing the thermostat can mask the real fault rather than fix it.
Also inspect the hoses when the engine is cool. A soft lower radiator hose without an internal spring can flatten at higher rpm as the water pump pulls coolant through it. From the outside, it may look perfectly serviceable while restricting flow when the engine is loaded.
Radiator Capacity Is About More Than Core Size
A radiator has to shed the heat the engine creates. That sounds simple, but capacity is affected by core design, tube count, fin density, frontal area and airflow. A clean, correctly sized aluminium radiator can offer a major gain over a tired original unit, but only when the rest of the system supports it.
A big radiator with poor air control will still disappoint. The radiator needs a clear supply of outside air through the grille, then a controlled path through the core. Obstructions ahead of the core, packed fins, bent fins, poorly placed transmission coolers or a front-end layout that lets air bypass the radiator all reduce effectiveness.
The same goes for cooling system capacity. A standard radiator might survive a stock small-block on a mild day, then struggle once compression, cubic inches, camshaft, exhaust and driving style change. For a Holden 308, Cleveland, Windsor, small-block Chev or big-block hot rod build, choose cooling components around the current engine combination, not the badge on the radiator support panel.
Fan and Shroud Match-Up Matters
Fan choice is where many otherwise good cooling upgrades lose ground. A fan should cover as much of the radiator core as practical, and a shroud should place the fan in the right relationship to the opening. Too far forward, too far back, too small or unshrouded, and idle airflow suffers.
Mechanical fans suit plenty of traditional V8 builds, particularly where there is room for a full shroud and correct blade spacing. Electric fans can free up space and provide strong low-speed airflow, but they must be sized for the radiator and controlled reliably. A compact universal fan may look tidy yet move nowhere near enough air for a warmed-over V8 in summer traffic.
Do not overlook the water pump. Pump condition, impeller design, pulley ratio and belt drive all affect circulation. An under-driven pump can be useful in a specific high-rpm combination, but it is not always ideal for a street car that spends time idling and cruising. Cooling parts need to work together, not win an individual spec-sheet contest.
Heat Can Begin in the Tune
The cooling system removes heat. It cannot fully compensate for an engine producing excessive combustion heat in the first place.
Ignition timing that is too far advanced can raise cylinder pressure and temperature, particularly under load. Timing that is badly retarded can make the exhaust system run hotter and leave the engine feeling lazy. Fuel mixture plays a similar role. A carburettor or EFI calibration that goes lean under load can push temperatures up quickly, while a combination that is excessively rich may create its own drivability and plug-fouling issues.
This is why an overheating diagnosis on a modified car should include the engine's current specification. A cam change, intake swap, carburettor replacement, EFI conversion or compression increase can alter the tune the engine needs. The temperature gauge is often reporting a combination problem, not merely a failed cooling component.
Exhaust heat also deserves attention. Tight engine bays, headers running close to the starter and steering, and limited room for heat to escape can load the under-bonnet area. That does not mean headers alone are the cause, but it reinforces the need for efficient radiator airflow and a cooling system with enough reserve capacity.
Do Not Trust One Gauge Reading Blindly
Before chasing parts, make sure the temperature reading is believable. Old gauges, senders with the wrong resistance range, poor earths and wiring faults can report a temperature that does not reflect what is happening in the engine. A mechanical or quality electronic gauge can provide a useful cross-check when you are sorting a build.
Pay attention to whether the reading rises steadily, spikes suddenly or swings up and down. A steady climb under sustained load points in one direction. A rapid spike after a thermostat opens, or an erratic needle that changes without a matching change in engine behaviour, points somewhere else. The pattern prevents random parts replacement.
Build a Cooling Package, Not a Parts Pile
The strongest result comes from matching the radiator, fan, shroud, hoses, cap, thermostat and water pump to the vehicle's actual use. A mild weekend cruiser does not need the same package as a tough street machine with a larger-cube V8, but neither should be expected to survive on worn-out cooling hardware.
For classic cars and custom builds, fitment is as critical as performance. Measure available core space, fan-to-radiator clearance, water-pump length, pulley alignment and hose outlet positions before choosing components. A radiator with excellent capacity is no help if it forces a compromised fan arrangement or creates a hose-routing headache.
At Traction Auto Parts, the focus is on parts that suit real enthusiast combinations - from classic restoration cooling replacements to stronger airflow and cooling hardware for V8 street builds. Start with the overheating pattern, assess the whole package, then select components that give the engine the cooling headroom it has earned.
A healthy cooling system should let you enjoy the cam note, the torque and the long summer cruise without watching the needle more closely than the road. Treat the temperature rise as useful evidence, and the right fault will usually reveal itself.
