100amp Ford Windsor, Cleveland, V8, 6 Cyl 1 or 3 wire setup Alternator Chrome

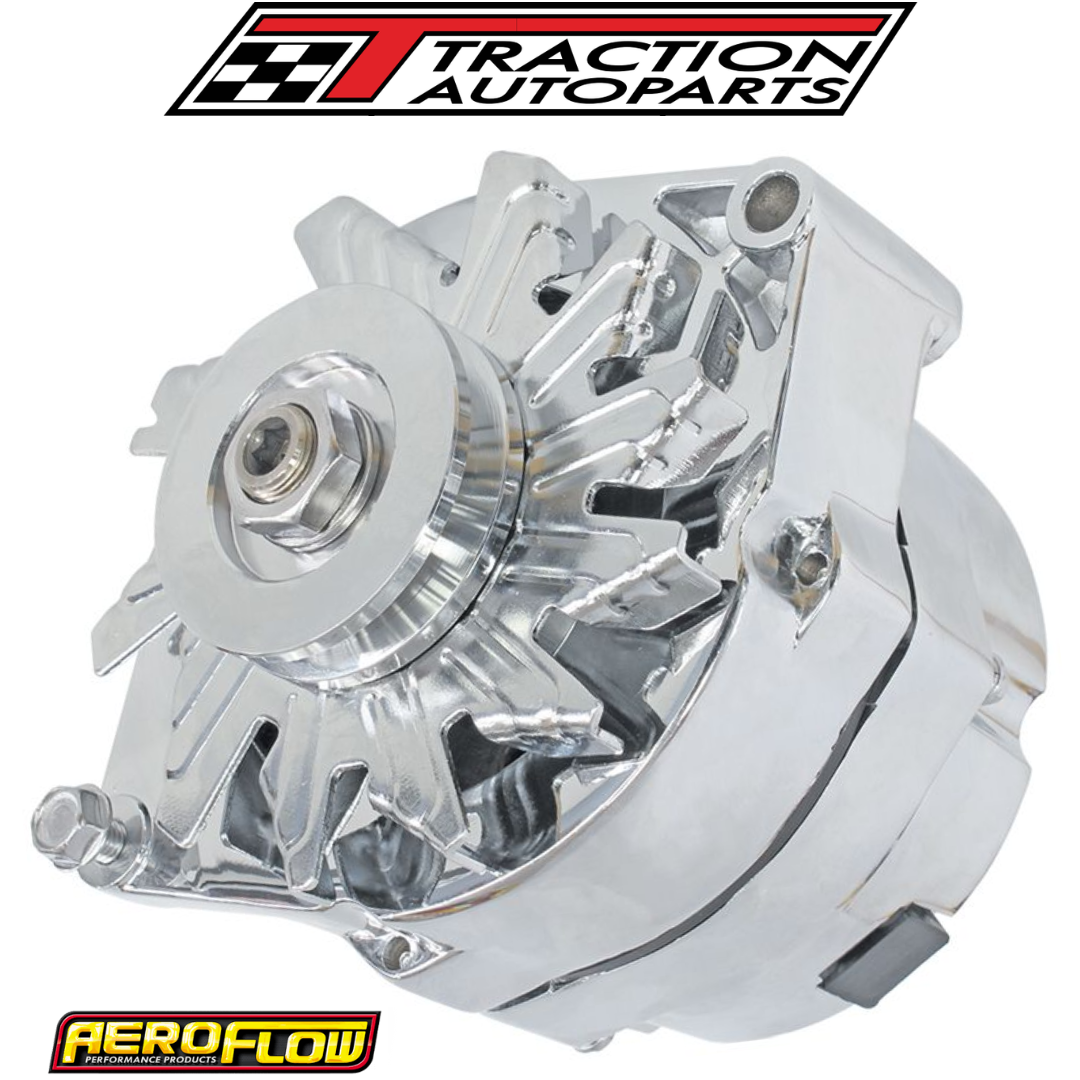

Aeroflow Chrome Finish 100 Amp Alternator with Internal Regulator
Suitable for Ford Windsor & Cleveland V8 - 289, 302, 351 & Ford 6 Cylinder 200, 221, 250 Engines as fitted to:

XR XT XW XY Ford Falcon
XA XB XC Ford Falcon
Ford Mustang
Ford Bronco
Ford F100, F250, F350

Specifications:

Aeroflow AF4873-1100 100 Amp Chrome Alternator

• High quality finish
• Internal Regulator
• Can be used in either 1 wire or 3 wire hookup configuration
• Self exciting type alternator
• Huge 100 Amp output
• Factory load tested and certified before being packed
• Supplied and fitted complete with matching chrome alternator pulley
• 12 month warranty

Fitment Notes:

• Suitable to replace existing 1 wire, V-Belt type, internal regulator Ford style alternator.
• Mounts measure approximately 21mm outside depth on the short side, 76mm outside depth on the long side.
• The measurement between the mounts from the inside edge, to inside edge is 166mm.
• The measurement between the mounts from the bolt centres is 6.60".
• Utilizes the standard GM 10SI style case with 6.600” bolt centres.
• Total length from the front of the rotor shaft to the deepest point at the rear of the case is approximately 165mm.
• Please use the above measurements and information to compare to your original alternator, to ensure correct fitment for your vehicle.
