AEROFLOW

283 307 327 350 Chev V8 Aeroflow Alternator 100 Amp Chrome Plated Internal Reg

283 307 327 350 Chev V8 Aeroflow Alternator 100 Amp Chrome Plated Internal Reg

$247.20
$247.20
Sale Sold out
Shipping calculated at checkout.

Part Number : AF4870-1100

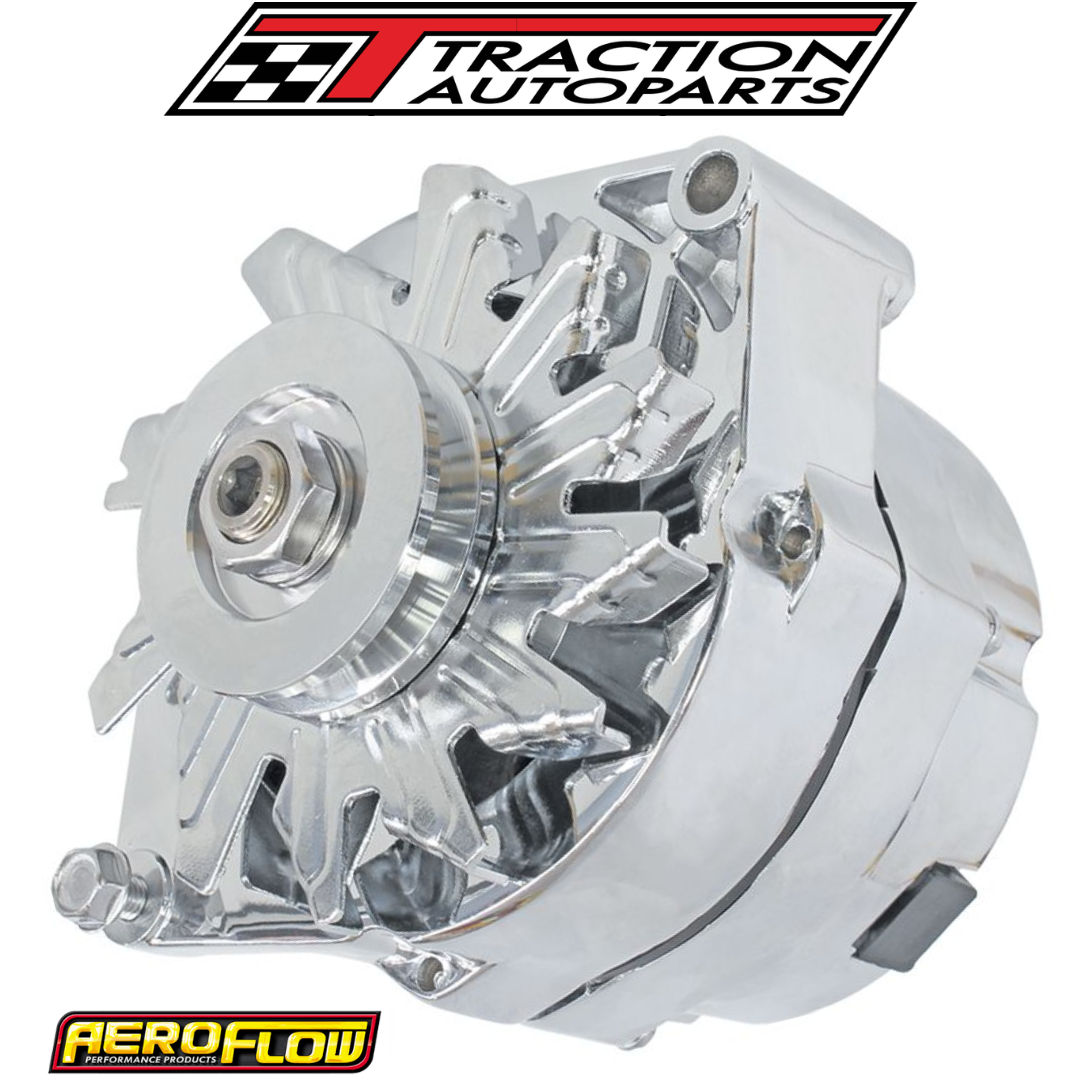

Aeroflow Triple Chrome Finish 100 Amp Internal Regulator Alternator
Suitable for GM Small Block Chev V8 283, 307, 327, 350

This part is compatible with 192 vehicles

Specifications:
  • Aeroflow AF4870-1100 100 Amp Chrome Alternator
  • High quality finish
  • Hand Polished and triple chrome plated to a mirror finish
  • Internal Regulator
  • Can be used in either 1 wire or 3 wire hookup configuration
  • Self exciting type alternator
  • Huge 100 Amp output
  • Factory load tested and certified before being packed
  • Supplied and fitted complete with matching chrome alternator pulley
  • 12 month warranty
Fitment:
  • Suitable to replace existing 1 wire, V-Belt type, internal regulator GM style alternator.
  • Mounts measure approximately 18mm outside depth on the short side, 51mm outside depth on the long side.
  • The measurement between the mounts from the inside edge, to inside edge is 159mm.
  • The measurement between the mounts from the bolt centres is 6.60".
  • Utilizes the the standard GM 10SI style case with 6.600” bolt centres.
  • Total length from the front of the rotor shaft to the deepest point at the rear of the case is approximately 165mm.
  • Please use the above measurements and information to compare to your original alternator, to ensure correct fitment for your vehicle.
