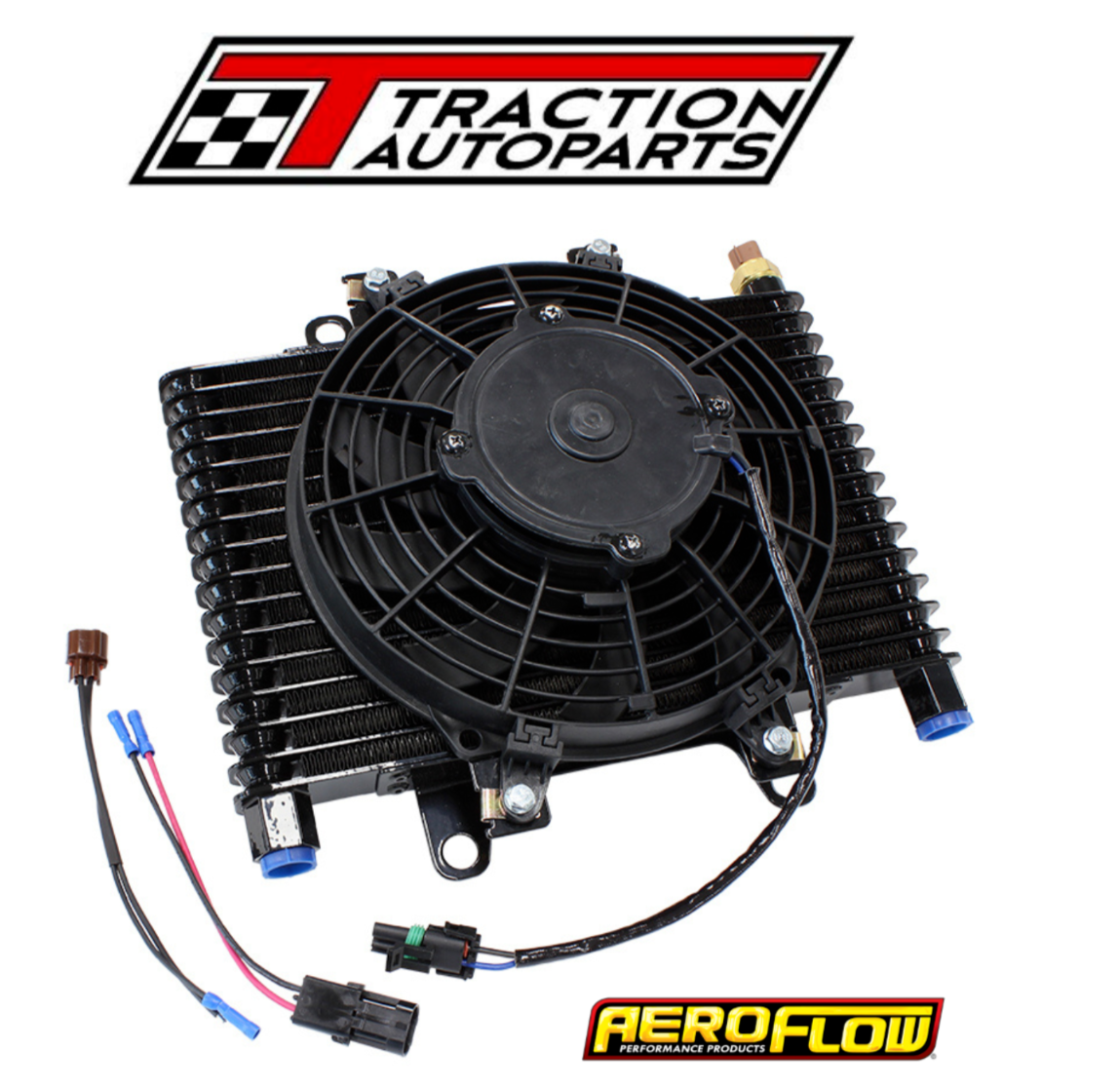

Aeroflow AF72-6003 Oil /Trans Cooler -10 ORB 10" x 7-1/2" x 3-1/2", Fan & Switch

Aeroflow's engine and transmission competition oil coolers feature -10ORB female fittings, thermostat, wiring plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi.

The M18 x 1.50mm thermal switch included in the top of the oil cooler activates the fan at 175°F/79.5°C. The cooler also features a fin and plate construction. The dimensions are 13-1/2"(342mm) x 9"(228mm).

The 9-1/2" (241mm) electric fan can be reversed for mounting either side of the heat exchanger. They are boxed in the pusher configuration. To change this to a puller fan simply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.

Dimensions:
Overall Length: 250mm (10")
Overall Height: 190mm (7-1/2")
Oil Cooler Thickness: 32mm
Fan Thickness: 60mm
Centre to Centre of Mounting Holes: 153mm
Centre to Centre of Oil Cooler -10ORB Ports: 220mm
Centre to Centre of Fan Mounts: 113mm

- M18 x 1.50mm Thermal Switch.
- Turns electric fan on at 79.5°C (175°F)
- 7" (177mm) Reversible Electric Fan
- Flows 350 CFM
- Draws 6 Amps
