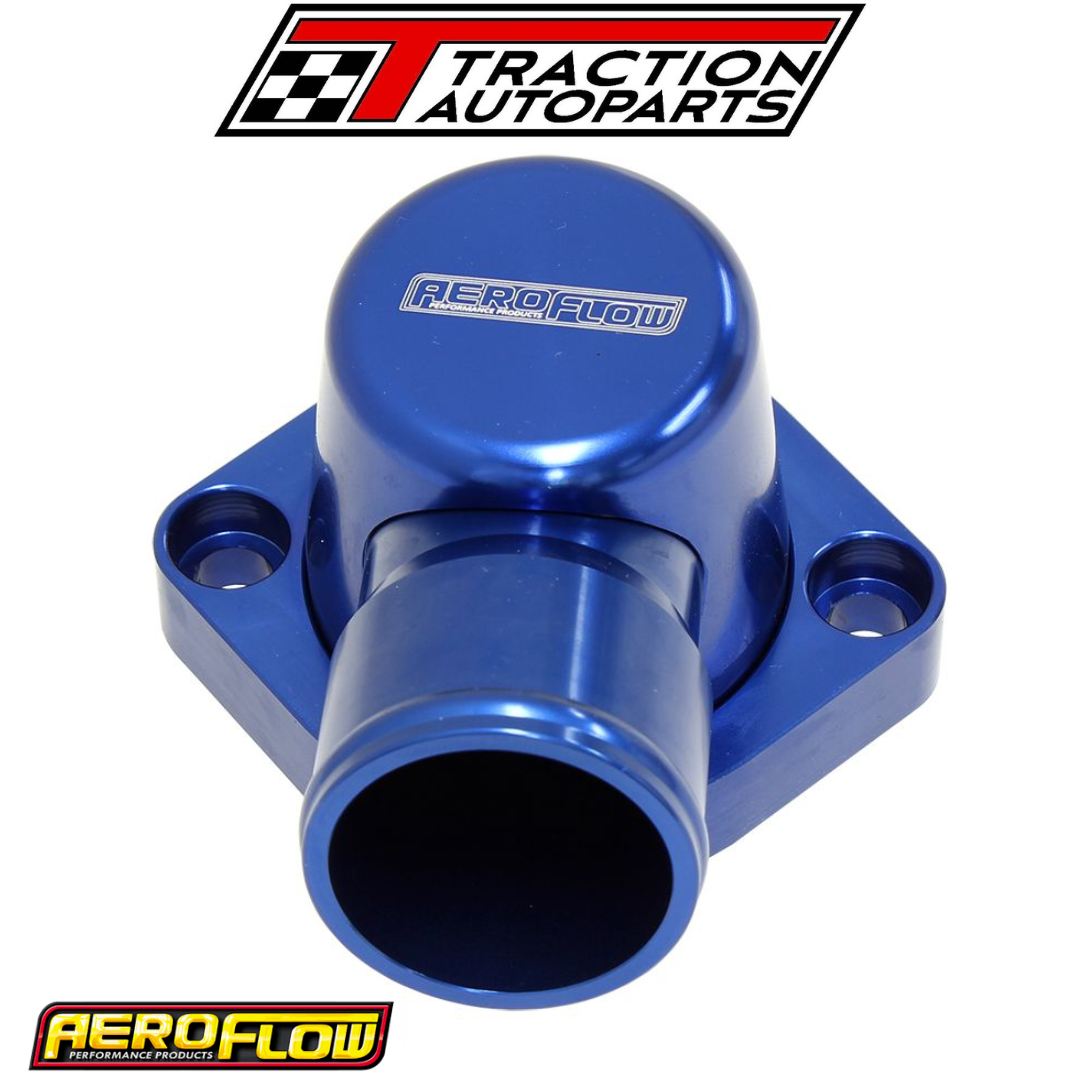

Aeroflow Billet Thermostat Housing BLUE Suit Big Block Ford 429-460, Swivel

Accepts Ford Thermostat.

The Aeroflow Performance billet thermostat housings are a three-piece design that allows for correct positioning of the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female 1-1/4”-20 thread to adapt a AN fitting or a larger barb fitting for custom applications. Available in several anodised finishes.

Replacement O-ring and bolts - AF59-2033

Centre to Centre of Bolt Holes - 71mm (2-51/64").

Overall Height - 57mm (2-15/64").

Overall Length - 84.50mm (3-5/16").

Width of Body - 66.20mm (2-19/32").

Radiator Hose Size - 38.25mm (1-1/2").

Radiator Hose Angle - 15 Degree.
