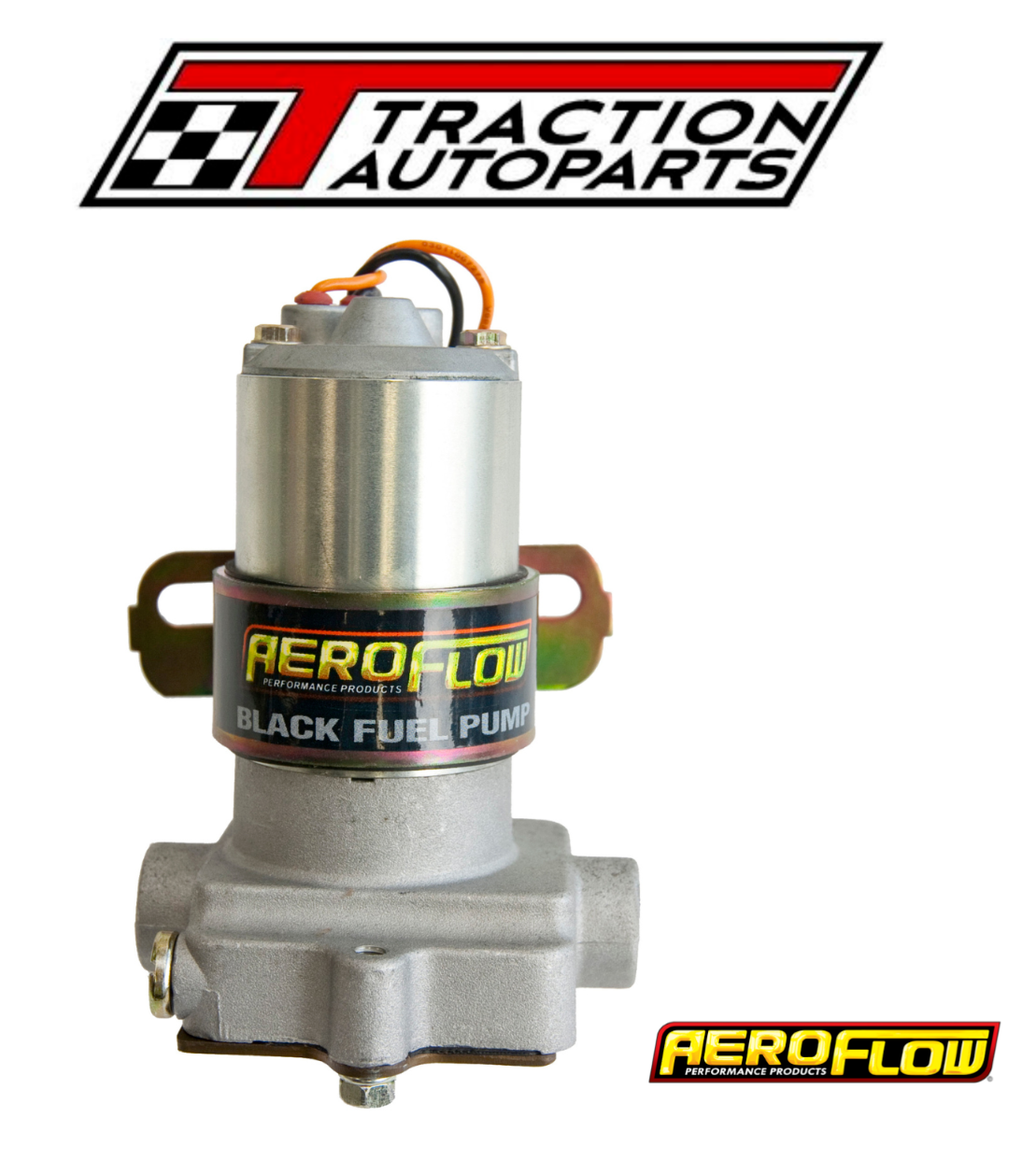

Aeroflow Electric "Black" Fuel Pump 140gph @ 14Psi, 3/8" NPT Inlet/Outlet
Aeroflow Electric "Black" Fuel Pump 140gph @ 14Psi, 3/8" NPT Inlet/Outlet
Regular price
$154.50
Regular price
Sale price
$154.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number : AF49-1010
Holley Style Black Series Fuel Pump, Electric, 140GPH @ 14PSI
- New lower housing casting for enhanced fuel flow
- Motor draws only 3 amps current
- 8 amp fuse recommended
- Improved design for street/strip applications
- Distinctive "BLACK" logo
- Flows 530 LPH (free flow)
- Maximum pressure is 14 PSI
- Requires a regulator for carburetted applications
- 3/8 npt inlet/outlet
- Provides constant fuel flow with no pulsation
- Rotor/Vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Compatible with E85 and methanol fuel
Use of safety shut-off switch, P/N Holley 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessary to allow for an adequate fuel supply. It is designed to push the fuel and not pull the fuel out of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
