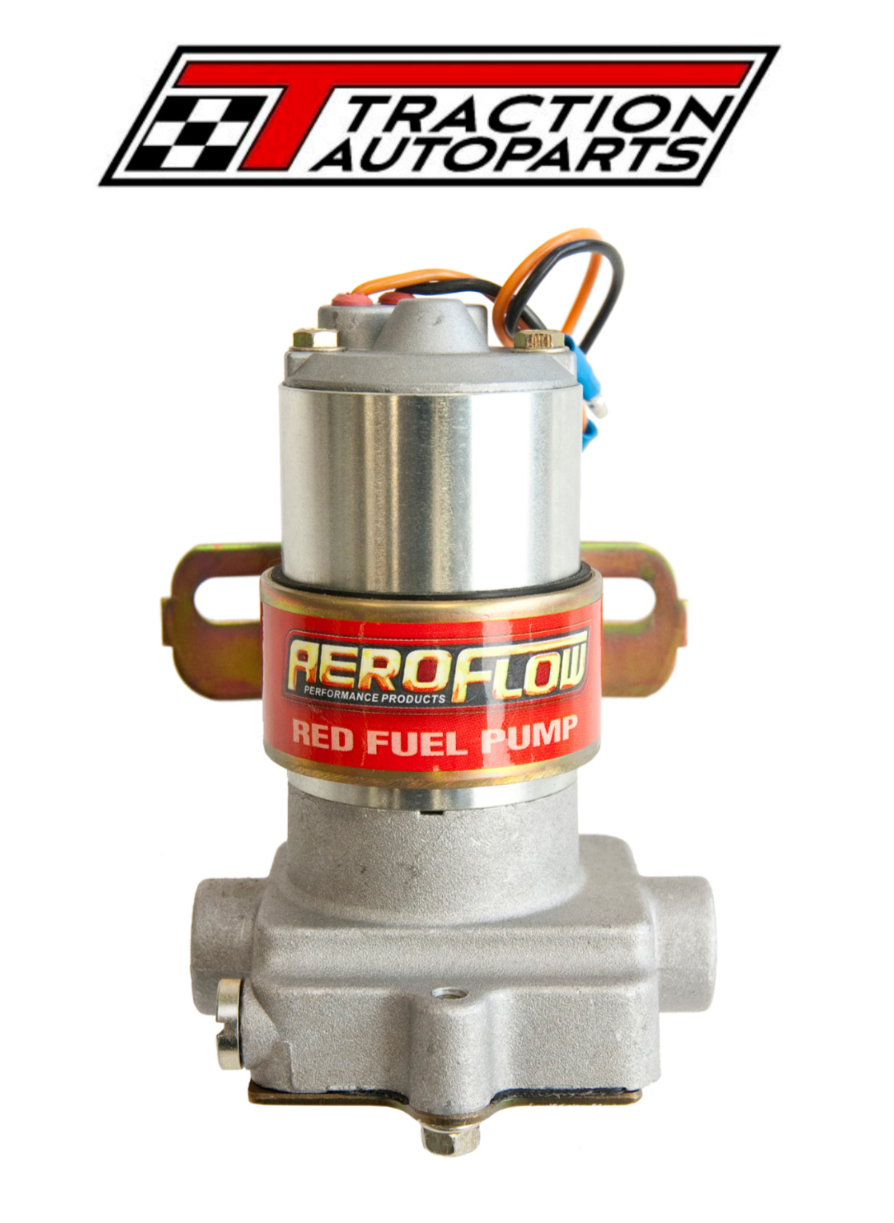

Aeroflow Electric "Red" Fuel Pump 97gph @ 7Psi, 3/8" NPT Inlet/Outlet, no reg

• New lower housing casting for enhanced fuel flow
• Motor draws only 3 amps current
• 7 1/2 amp fuse recommended
• Improved design for street/strip applications
• Distinctive "RED" logo
• Flows 367 LPH (free flow)
• Maximum pressure is 7 PSI, Internally regulated
• 3/8 npt inlet/outlet
• Provides constant fuel flow with no pulsation
• Rotor/Vane pump design is more tolerant of contaminated fuels
• Weighs only 3 lbs
• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• NOT compatible with alcohol or methanol fuels

Compatible with Unleaded fuel only.

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessary to allow for an adequate fuel supply. It is designed to push the fuel and not pull the fuel out of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
