AEROFLOW STAINLESS STEEL BRAIDED HOSE -10AN (PER METRE) AF100-10

STAINLESS STEEL BRAIDED HOSE -10AN (PER METRE) AF100-10

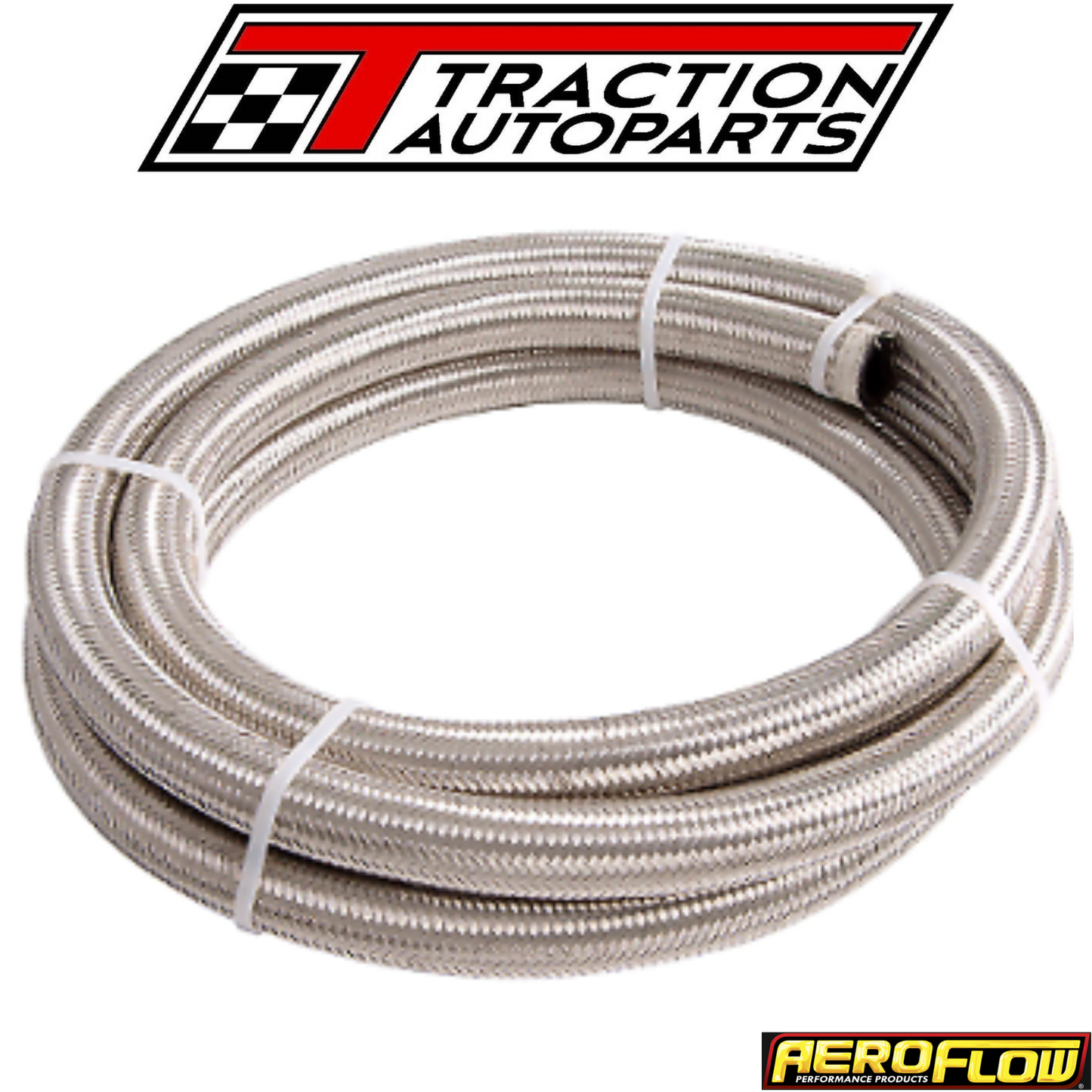

The Aeroflow 100 series hose is a true double braided stainless hose that uses the highest quality stainless wire available in the world.

• Constructed with a stainless-steel outer braid that resists abrasion and corrosion
• Combined with a reinforced Chlorinated Polyethylene (CPE) synthetic rubber liner with a nylon inner braide.
• For use with fuel systems, E85, E10, methanol, oils, lubricants, coolant systems and vacuum applications.
• Minimum temperature -40°C, Maximum temperature 150°C

NOT RECOMMENDED FOR: Brake systems, Extreme heat areas and use inside passenger compartments (due to permeation). For these applications use 200 series hoses & fittings.

100 Series Hose specifications:

• AN Size: -10
• Hose I.D: 9/16"" (14.2mm)
• Hose O.D: 53/64"" (20.8mm)
• Operating Pressure: 1000 psi
• Burst Pressure: 5000 psi
