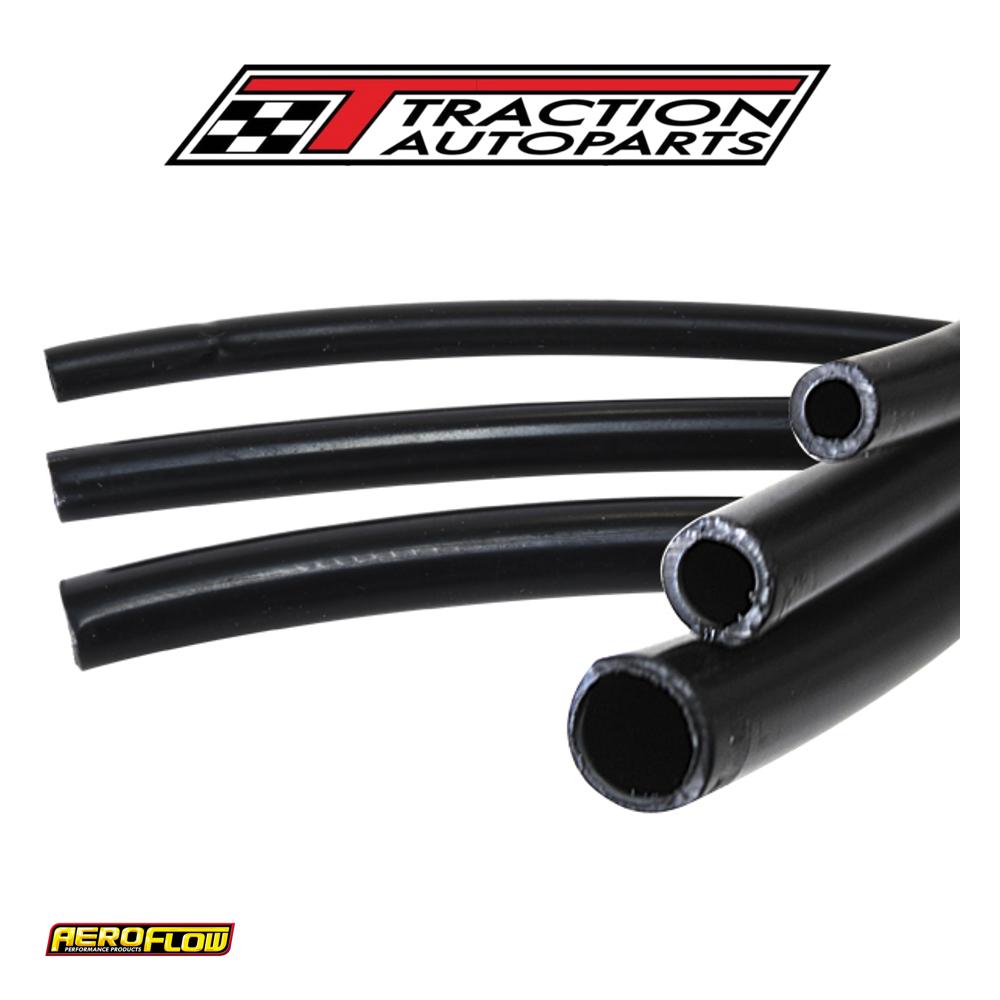

3/16" OD 120 Series Nylon Hose 1 Metre Length Vac

Part Number: AF120-187-1M

's flexible black nylon hose is ideal for vacuum, air, oil, fuel and low pressure hydraulic lines and to be used with 's 120 series push-to-connect aluminium fittings. The nylon hose has an extremely smooth inner surface with a very low coefficient.

- max bend radius 25mm / 1"
- burst pressure 1000psi (68. 95 bar)
- working pressure mpa 1. 7, 250psi, 17. 2 bar, 1. 7mpa
- safe for use with water methanol kits
- temperature range -40°c (-40°f) to 90°c (194°f)
- wall thickness 1mm / 3/64"
