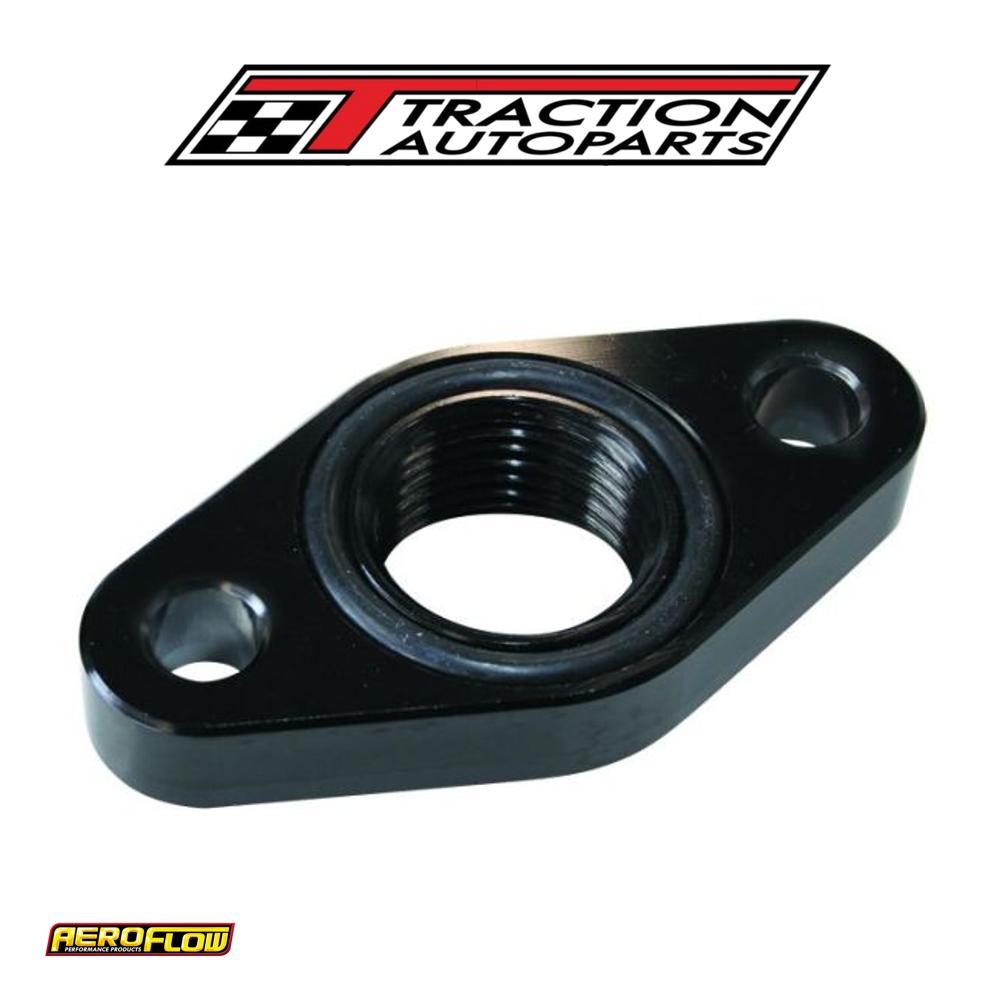

Turbo Drain Adapter -10 Orb 50.8 mm Hole Centre O-ring Seal

turbo oil drain adapter with O-ring seal.

-10 orb female with 50. 8mm hole centres to suit turbos with 50. 8mm bolt centres on core.

this selection of turbo drains options available from Aeroflow performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10an or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
