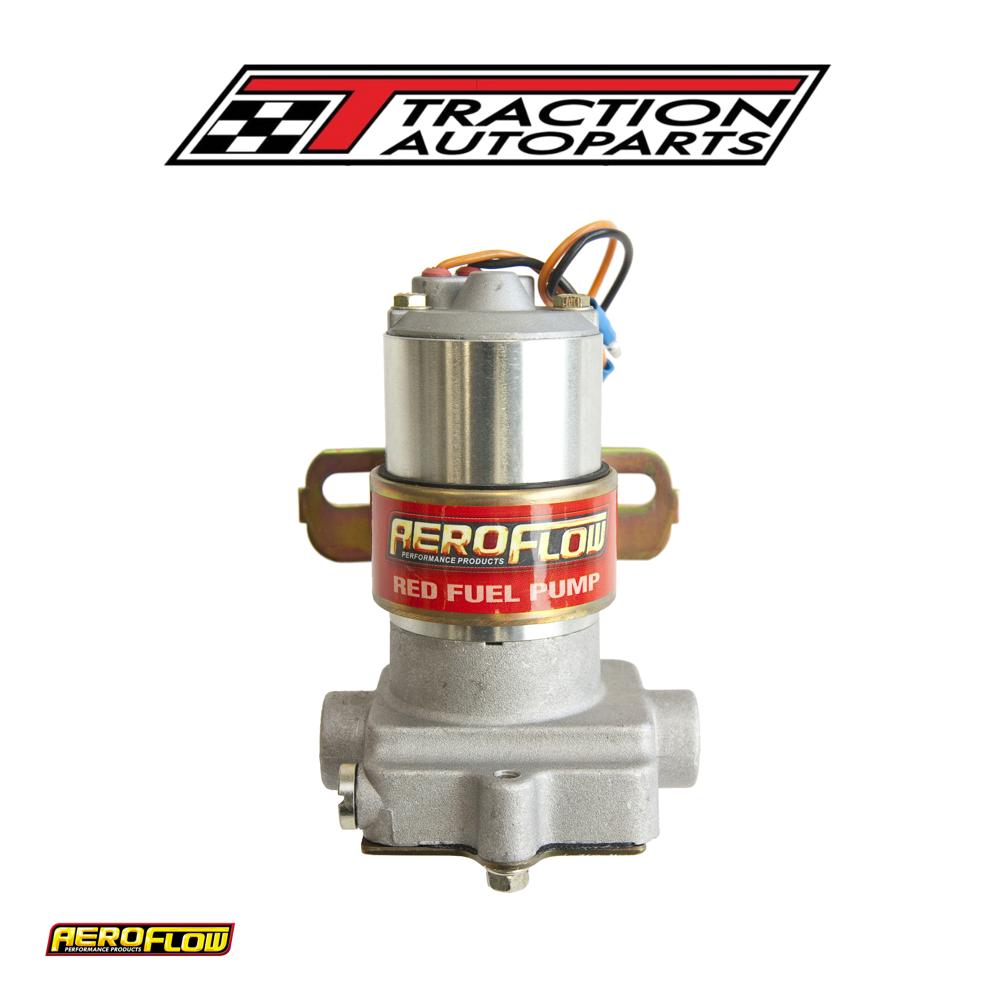

Red Fuel Pump 97 Gph 7 Psi , F/male 3/8" Npt

red 97gph fuel pump.

the red fuel pump is a low pressure fuel pump which operates at a free flow of 97gph at a set pressure of 7psi (0. 48bar) and does not require the use of a fuel regulator. This meets the flowrequiremetns of most regular carburettor applications. Thismotor draws 2 amps of current and an 8amp fuse is recommended.

compatible with unleaded fuel only.

note: these fuel pumps must be located below and as close to the fuel tank as possible. This is necessaryto allow for an adequate fuel supply. It is designed to pushthe fuel and not pull the fuelout of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
