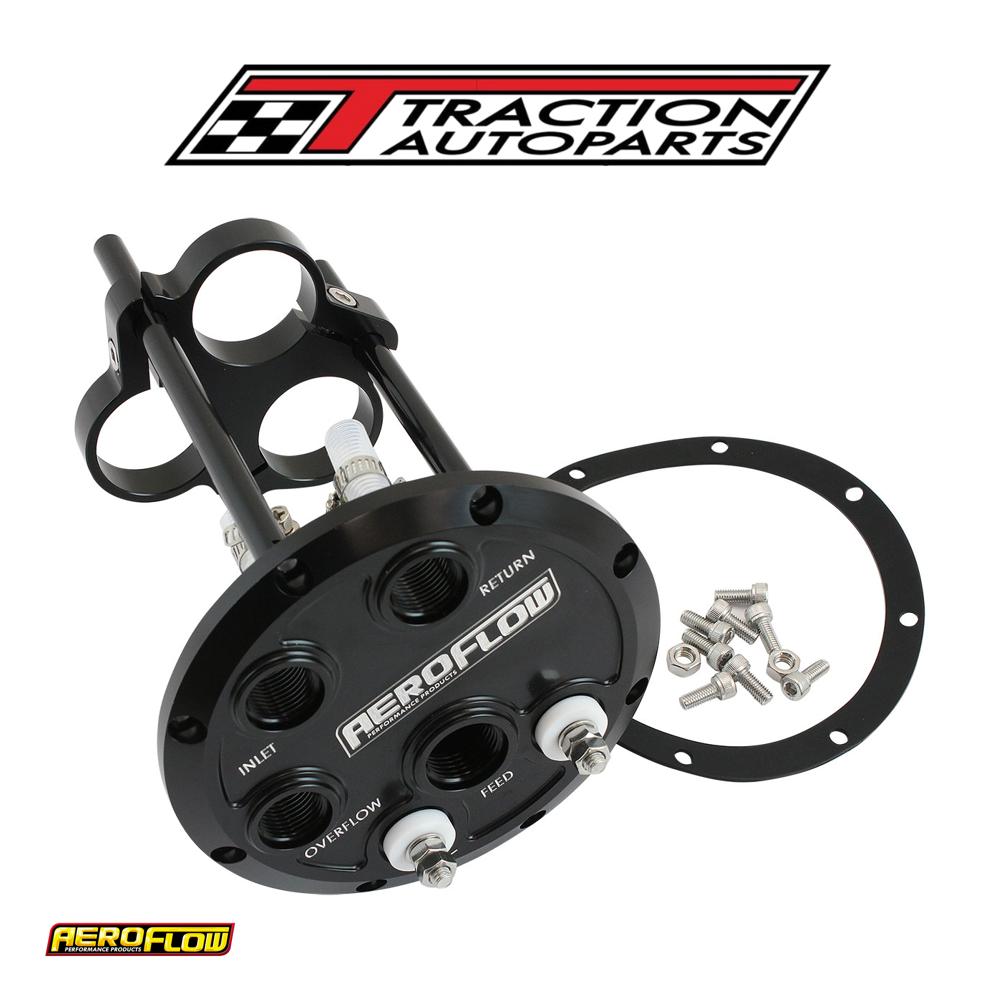

Low Profile Triple Pump Hangerfuel 450 525 lph Black Billet

deliver more fuel to your high-powered car with 's low profile triple pump hanger kit! our weld in low profile triple pump hanger is cnc machined from billet 6061-t6 aluminium with a black anodized option for maximum durability and corrosion protection against E85/methanol. The 2-piece head incorporates a weld on ring for fabricating custom tanks. The buna n o-rings provide a positive seal for the internal fuel log which has a -10orb feed with a -8orb return, overflow and inlet. Three -8orb internal feeds with ptfe intake hose and clamps and single post electrical terminal bulkheads are provided. This billet hanger has the ability to mount one, two or three af49-1242, af49-1057 efi fuel pumps or any 40mm diameter fuel pumps at one time. All 40mm fuel pumps used when staged must include a internal check valve to ensure fuel does not back feed into surge tank.

• weld on rings are sold separately in either aluminium or stainless steel for those wanting to fabricate a fuel cell or surge tank specific to each applications.
• suits a 139mm or 5. 5" diameter cut-out.
• for use with a minimum depth of 190mm or 7" deep tanks.
• twin or triple E85 compatible pumps af49-1242, af49-1057.
• block-off plugs (af813-08blk) required if using less than 3 pumps (sold separately).
