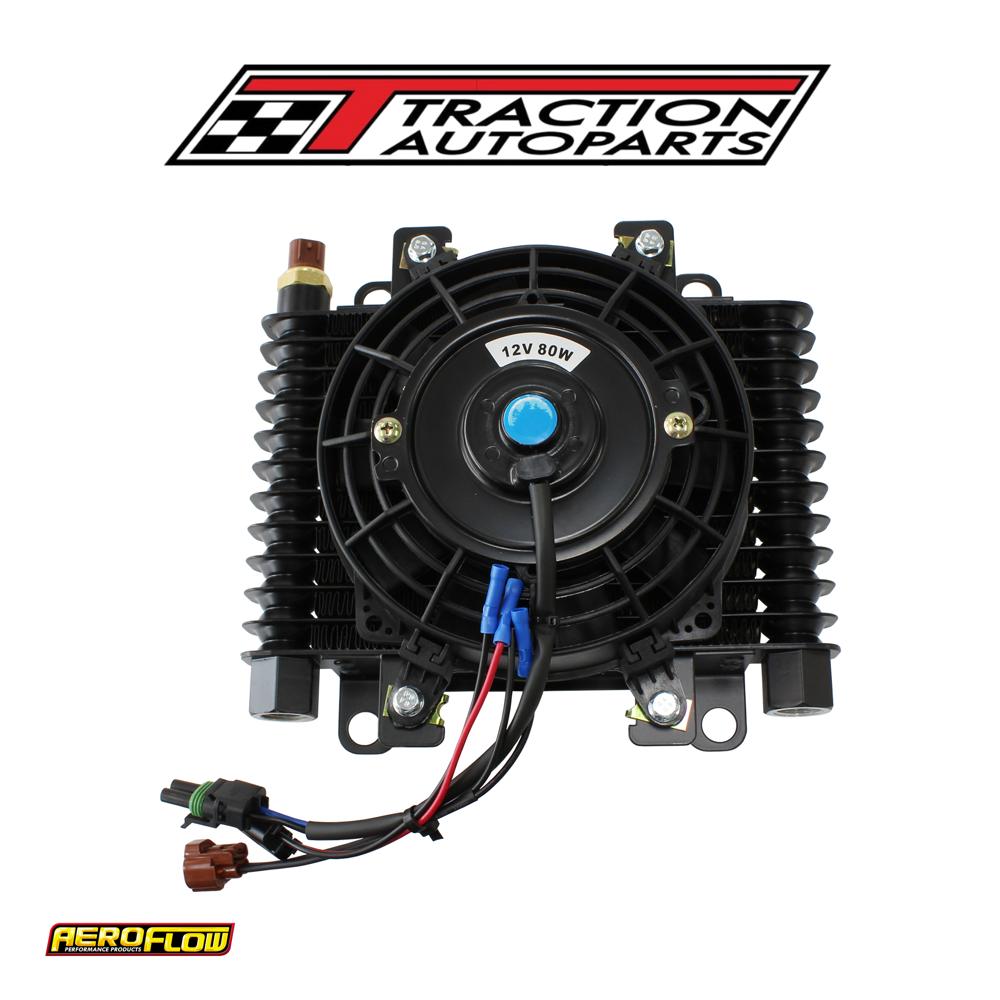

10 X 7-1/2" Comp Trans Cooler With 80 w Fan & Switch -10 orb

's engine and transmission competition oil coolers are a fin and plate design which provides more surface area for optimal cooling of any fluid in all applications. Each cooler is fitted with high quality 12-volt 7” electric fan which flows up to 350cfm with only a 6 amp draw for maximum cooling efficiency. The m18 x 1. 50mm thermal switch located on the top of each cooler activates this electric fan via a relay at 175°f/79. 5°c. The cooler features built-in attachment points and rubber mounts are sold separately (af72-4001), making mounting the cooler assembly a breeze. The cooler accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi. Available with either 1/2” npt or -10 orb female fittings for a perfect O-ring seal. Each cooler comes with thermostat wiring and electric fan wiring. The dimensions are 10”(254mm) x 7-1/2”(190. 5mm).
