Ls Retro Fit Rear Sump Oil Panextra Clearance W/ Filter Pad

Part Number: AF82-2300

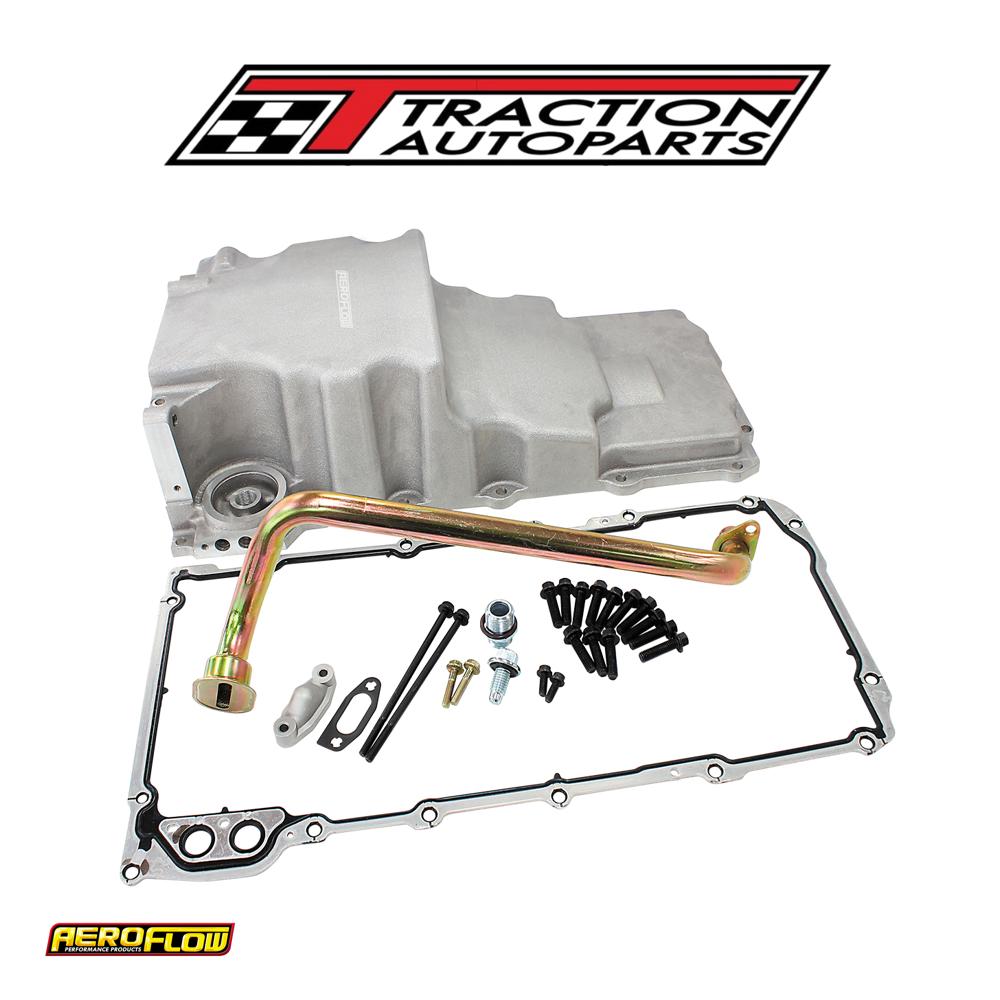

the factory gm ls pans don’t always fit or they hang too low for a lot of conversion applications. The Aeroflow performance ls conversion oil pan is designedto help! it provides maximum extra clearance to the chassisframes and ground. Designed for ls engine conversion installations where you require more oil pan to chassis frame clearance aroundthe front half of the oil pan. This cast aluminium oil pan ismodelled off the oem gm ls oilpan so it shares oem oil filter mounting, oem oil cooler port provision, oem engine nvh suppression, oem flange gasket and sealing and oem bell-housing attachments. Complete kit includes sump baffle, oe style pick-up tube,sump plug, oil filter stud, oil passage cover.

- 5. 85 litres (6. 18 quarts) capacity
- 3. 62" maxcrankshaft stroke
- recommended oil filter, part no. Af2296-1017
