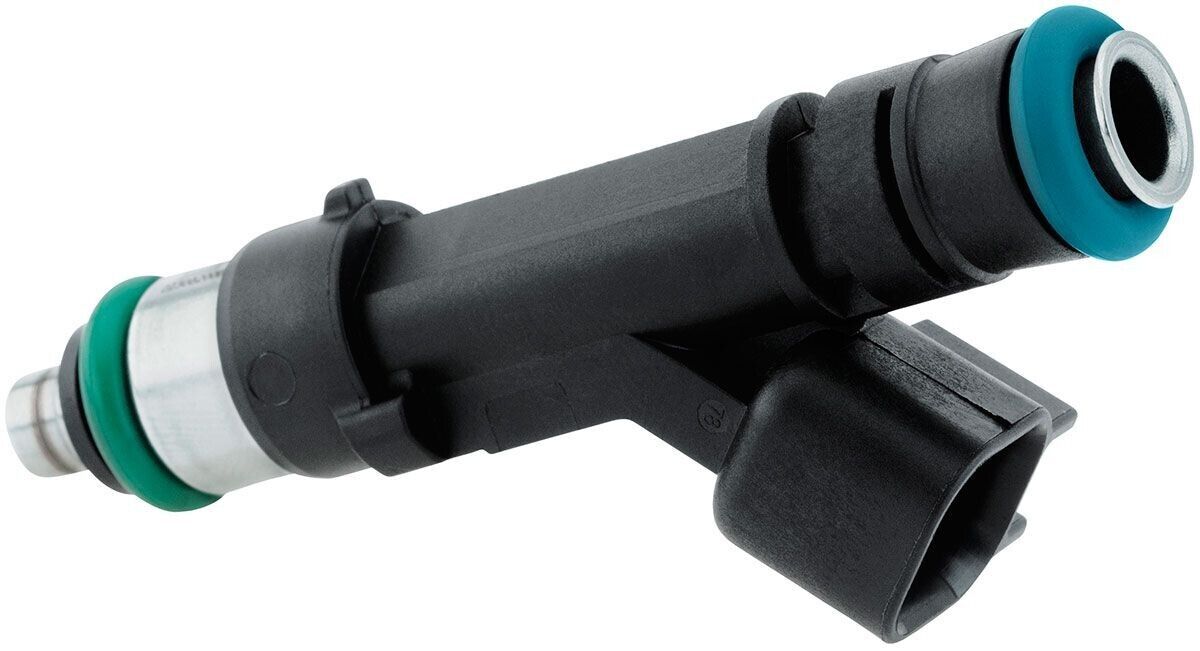

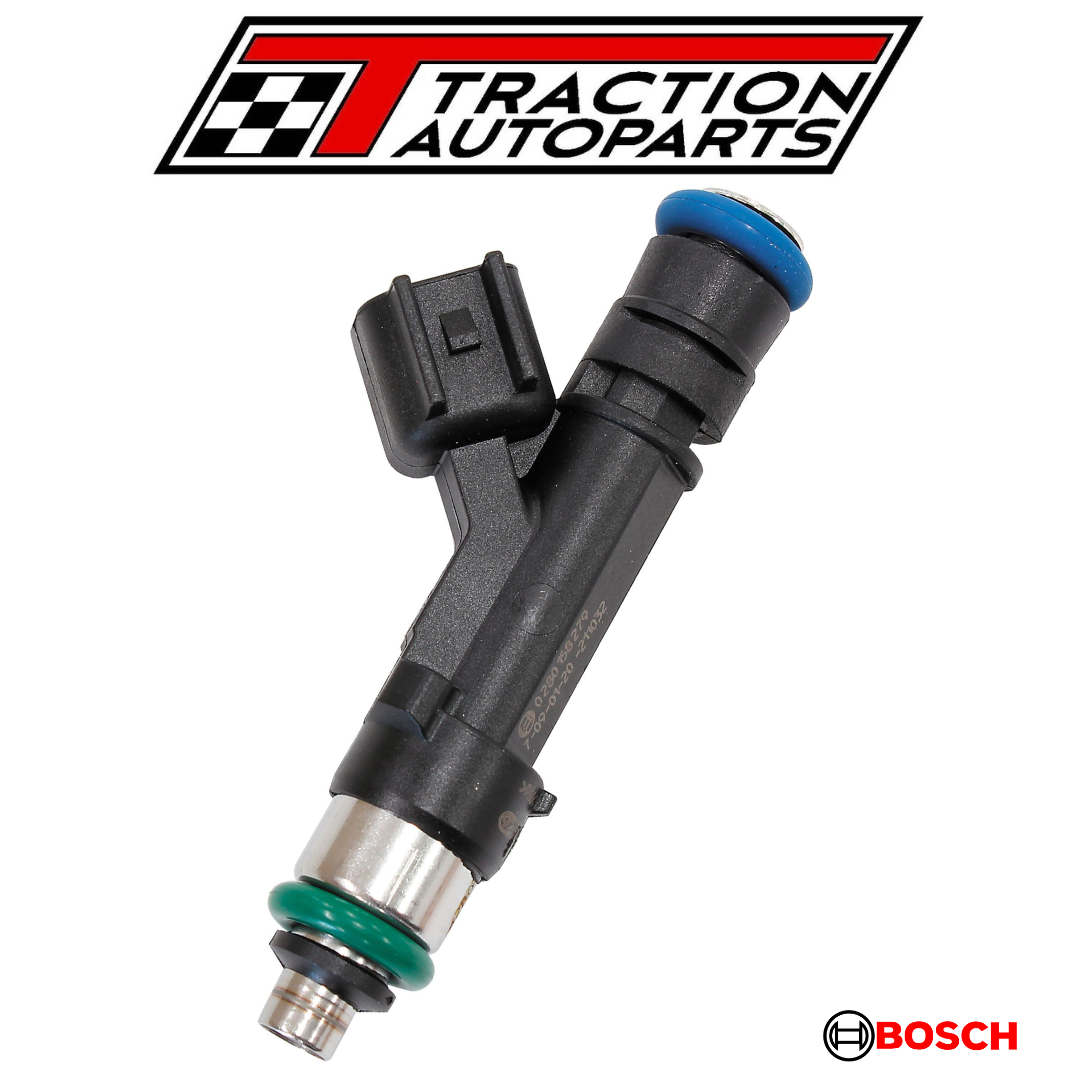

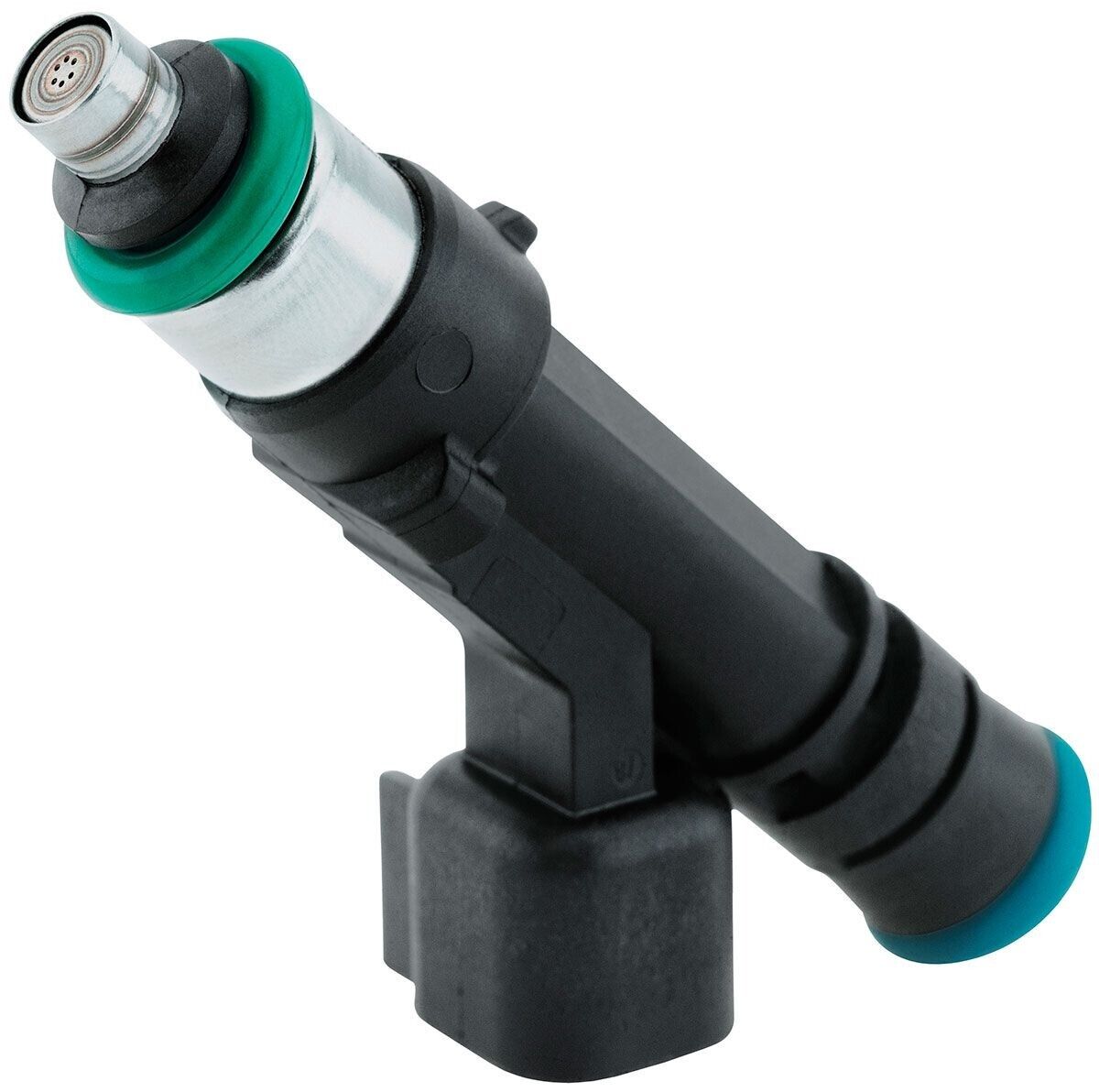

Bosch Motorsport 547ccEV14 Long USCAR Fuel Injector 547 cc/min (50 lb/hr) @ 3bar

Part Number : AF49-1901

Bosch Motorsport 547cc EV14 Long USCAR Fuel Injector
547 cc/min (50 lb/hr) @ 3 bar (43.5 psi)

Bosch Part Number: 0280158279

The most popular range of performance fuel injectors from Bosch Motorsport.  These are genuine Bosch products. Beware of fake products listed as genuine. These are purchased directly from Bosch Motorsport Australia. With these fuel injectors, we can now offer each customer a one-stop shop for your entire fuel delivery system. We offer fuel injectors with a variety of flow rates, physical sizes, and fuel compatibility ranging from pump 98 to E85, Methanol, and other popular race fuels. We recommend that after operating with methanol, the fuel injectors should be flushed with standard gasoline to prolong the life of the injector and prevent blockages. Each injector O-ring is compatible with ethanol/alcohol fuels and pump 98 fuel. These injectors can be driven with the saturated drivers found in every OEM ECU and most aftermarket ECUs, making them easy to use across a variety of setups. The injectors can function at high fuel pressures and don’t exhibit the high fuel pressure handling issues seen with many other high-flow, high-impedance injectors. This allows you to use a larger injector than would normally be possible without affecting idle and low-speed drivability. This makes them highly suitable for turbocharged and supercharged aftermarket or OEM applications that deal with high fuel system pressures, which is exactly what they were designed for! We also stock a full range of injector connector plug adapters for a quick and simple upgrade to almost any vehicle.

• 547cc/min @ 3 bar ( 43.5psi )
• Bosch 0 280 158 279

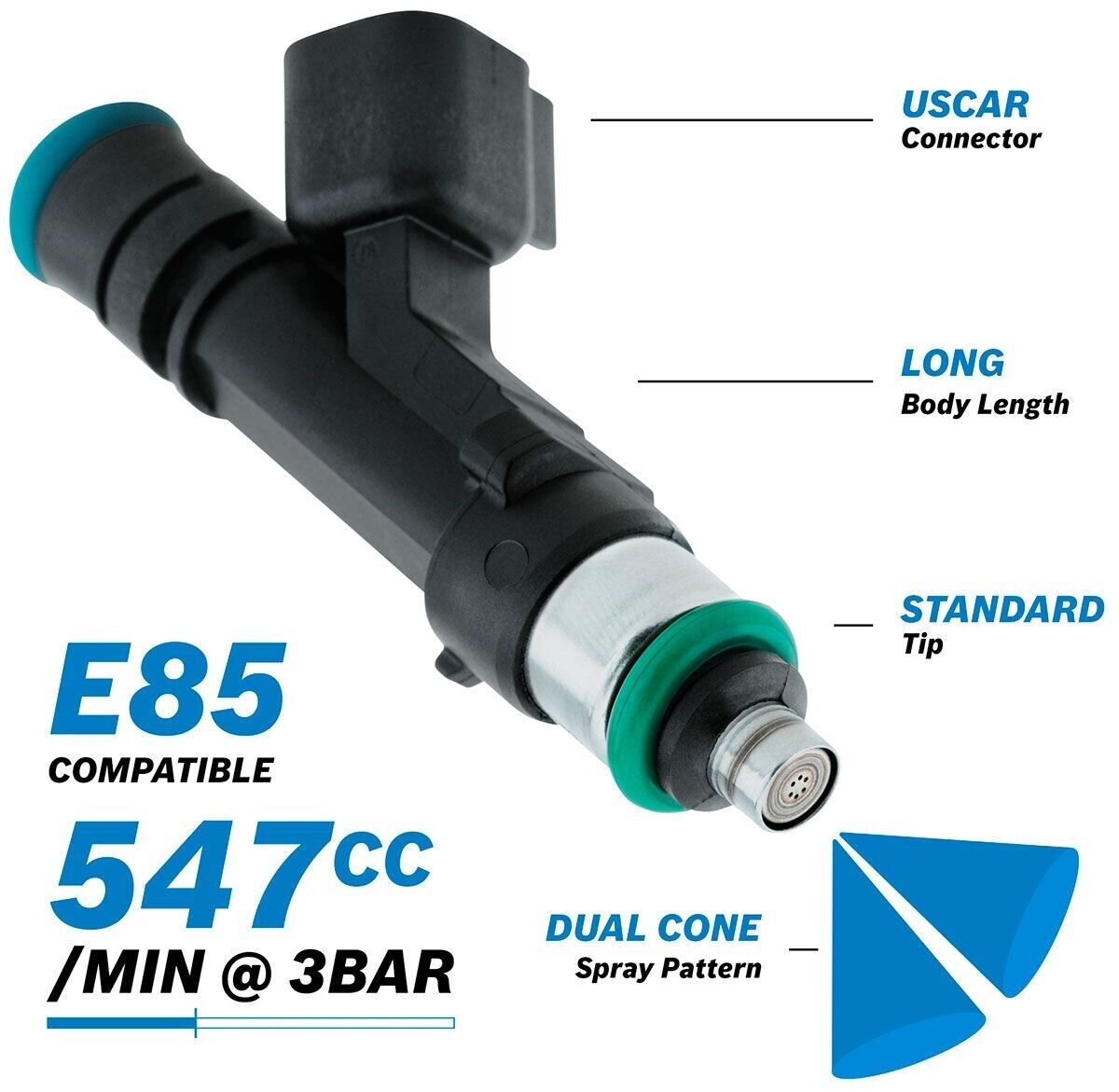

• Wide dual cone spray pattern
• Long Body length 60.65mm
• Overall Length 65.50mm
• Injector diameter 14mm
• High Impedance ( 12 ohms )
• E85 / Alcohol compatible
• USCAR connector - AF49-1523 sold separately
