Holden 304 Fuel Rail Kit for Air Gap Intake Manifold AF6010-4003 & AF6210-4003

Holden 304 Fuel Rail Kit for Air Gap Intake Manifold
Suits AF6010-4003 and AF6210-4003 Intake Manifolds ONLY

Give your Holden intake manifold the capability to flow some serious flow to feed even the most fuel hungry applications. These Holden fuel rails from Aeroflow Performance are specifically designed for use with the Holden 304 with EFI bungs air gap intake manifold. It will not suit the factory Holden intake manifold.

Each fuel rail is precision CNC machined from extruded 6063 aluminium with a large internal diameter bore with -8ORB ports on each end and anodized black.

Like theOEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

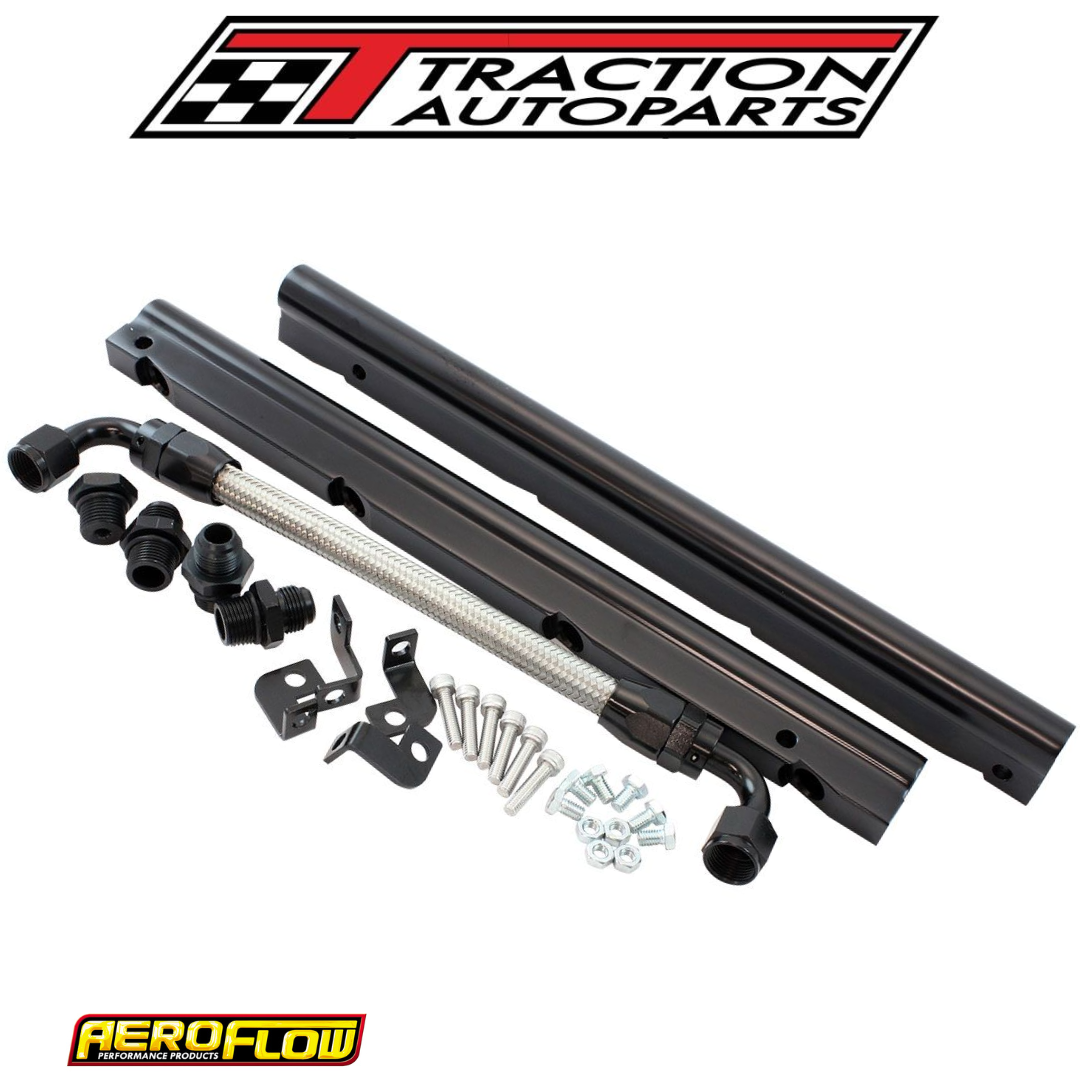

This kit includes all mounting hardware to mount to the intake manifold.

2 x Fuel Rails (-8ORB)
-8AN cross over 100 series braided line with two 90 degree non full flow taper fittings
3 x -8an to -8ORB fittings
1 x -8ORB hex port plug
6 x mounting brackets
6 x M6 socket cap screws (25mm UHL)
6 xM6 hex screws (10mm UHL)
4 x M6 nuts

Requires the use of 14mm short (33.60mm) fuel injectors.
