Aeroflow performance

LS 2 Piece Retro Finned Valve Cover Set, Polished Factory Position Coil Mounts

LS 2 Piece Retro Finned Valve Cover Set, Polished Factory Position Coil Mounts

$690.00
$690.00
Sale Sold out
Shipping calculated at checkout.
AF77-5020P

GM LS 2 Piece Retro Finned Valve Cover Set, Polished Finish
Suit GM LS Series Engines. Factory Position Coil Mounts with Tall Cover

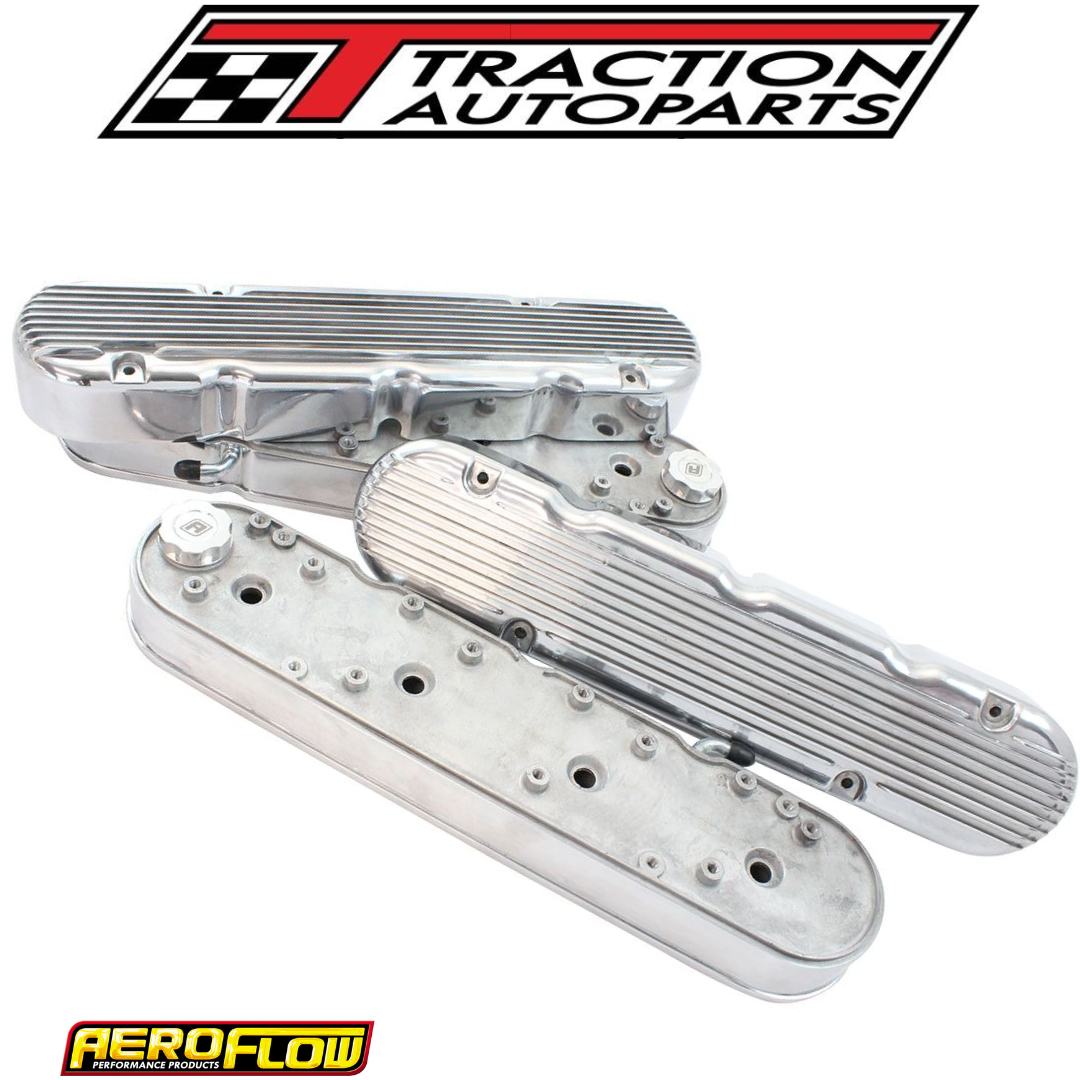

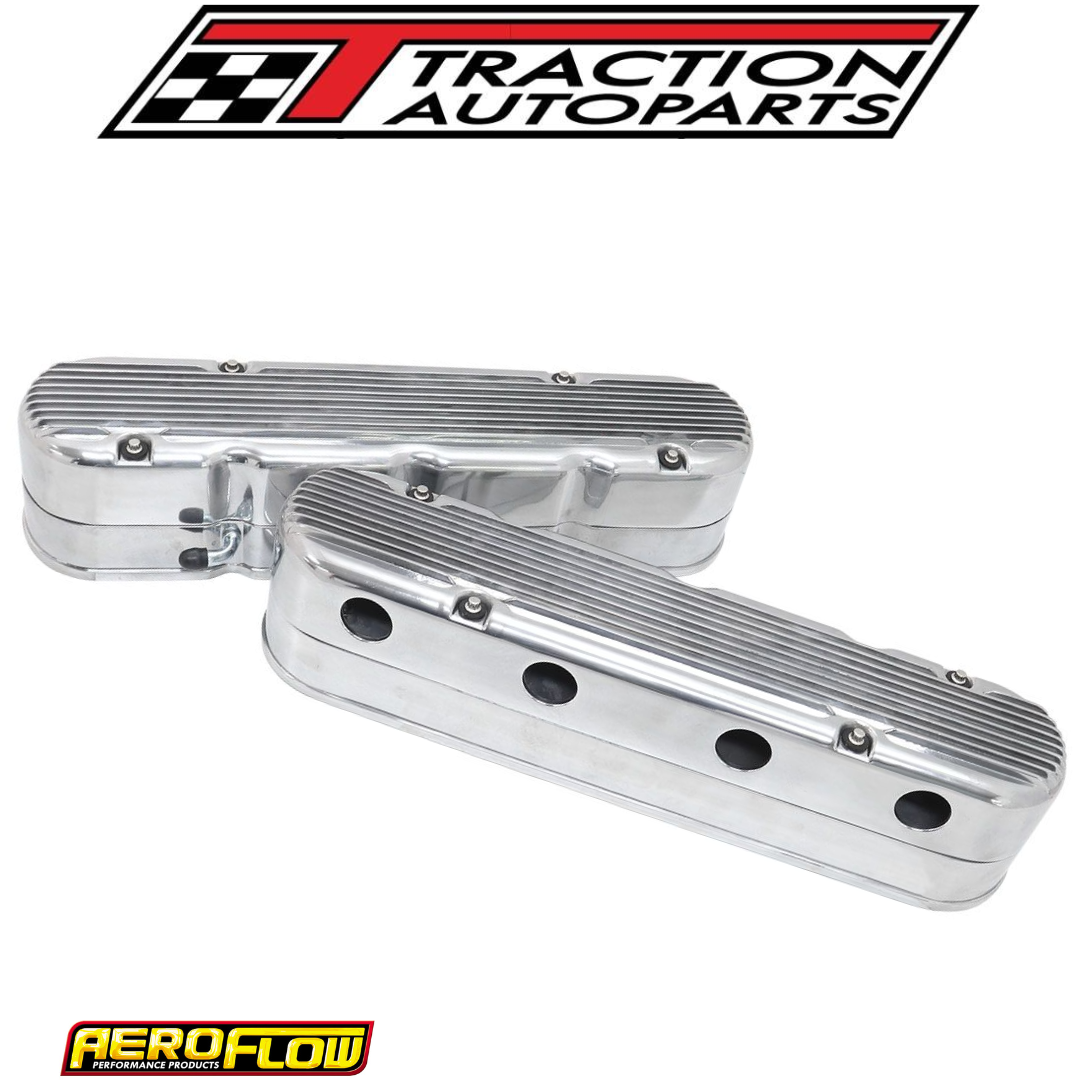

Cast aluminium valve covers are a great way to improve and refine the look of your LS engine, without any radical changes to its configuration. These Aeroflow Performance valve covers are a 2-piece retro finned design. These feature a low, internally baffled LS valve cover base with integrated coil mounts and a retro style finned overcover that hides the ignition coils and wiring harness. It also features a baffled stock-style ventilation set-up with an oil fill cap while also retaining the factory gaskets and bolts. All hardware and spacers for mounting ignition coils and 12-point dress up hardware and rubber grommets for the coil covers are included. Fits all LS engines using both LS1 and LS2 or similar coils.

Coil mounts on base plate suits both LS1 style coil packs sold separatley (AF4020-8262) and LS2 style coil packs sold separatley (AF4020-8265).

Total Height is 96mm.

Valvetrain Clearance is .750" lift cam with stock style rocker arms.

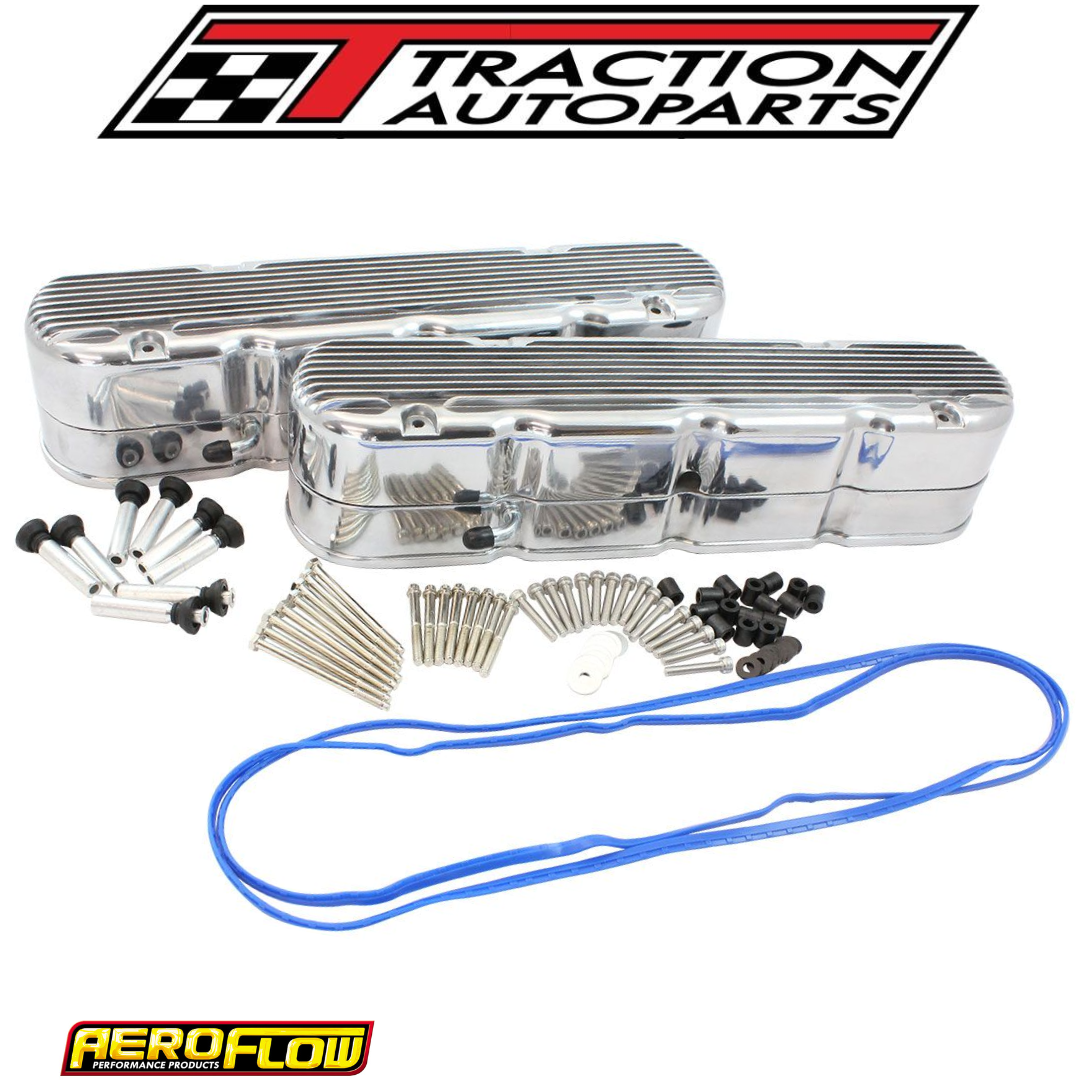

Valve Cover includes:
2 x Gm LS valve cover base with oil fill oil and 3/8" Barb
2 x GMLS valve cover over cover
2 x Cast oil fill cap with o-ring
8 x 12 point over cover dress up bolts (1/4-20" thread 55mm UHL)
8 x rubber grommets for over coverdress up bolts
16 x coil mounting socket cap screws M6 x 1.00 thread (1-35mm UHL)
16 x plastic coil spacers (12.4mm O.D, 6.5mm I.D, 14.7mmHeight)
8 x Valve cover base mounting hex head screws (M6 x 1.00mm, 85mm UHL)
8x Valve cover base stands and grommets
8 x Flat Washers
2 x rubber valve cover gaskets (AF1850-1013)

If buying multiple items at a time and are overcharged for shipping, we will refund any excess on shipping.
