NASON HEAD BOLT KIT V8 GEN III LS1 5.7L MOTOR HOLDEN VT-VX-VY COMMODORE/CALAIS

Part Number : NHBS079

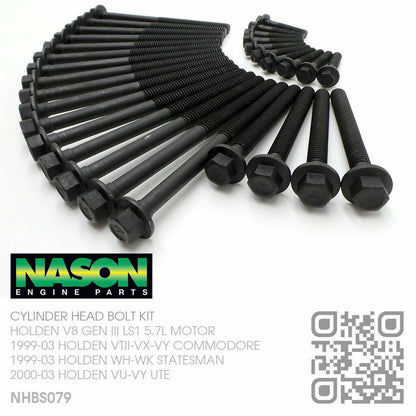

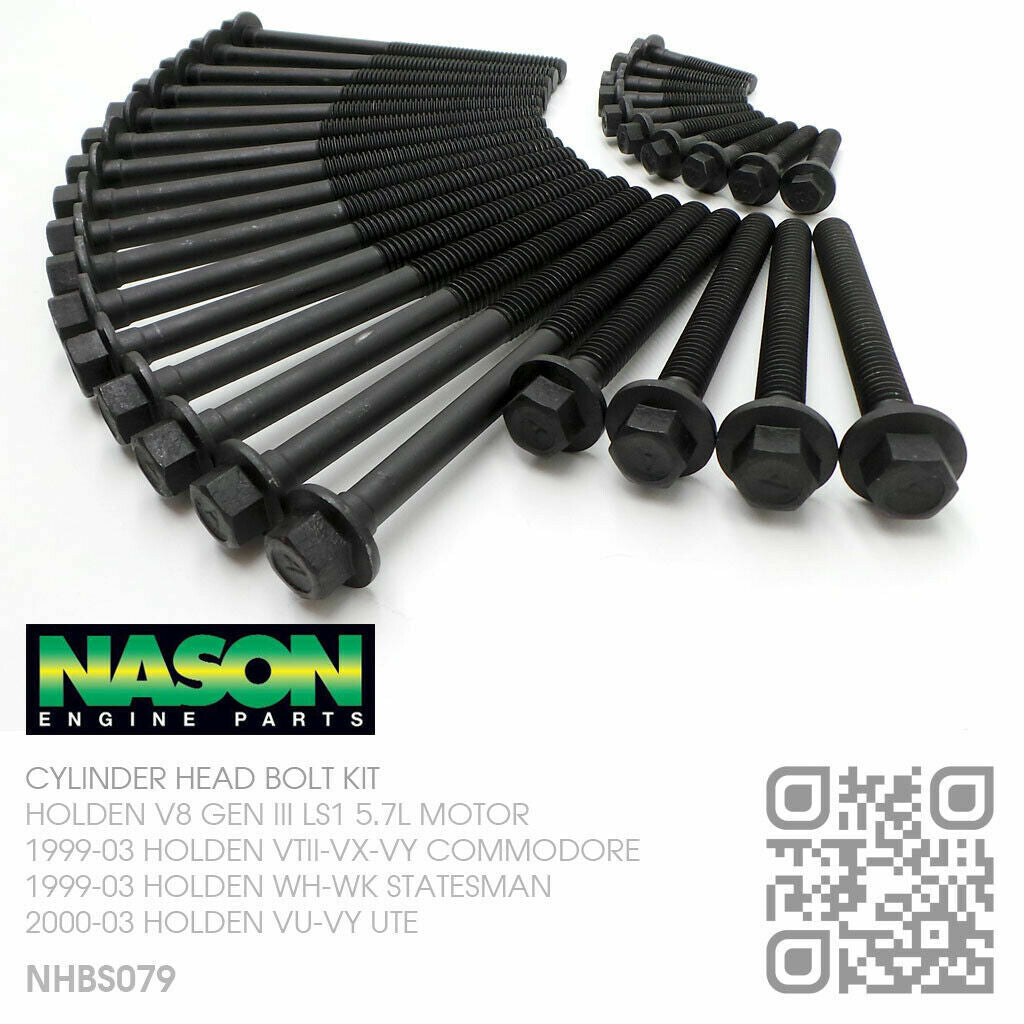

NASON CYLINDER HEAD BOLT KIT
HOLDEN V8 GEN III LS1 5.7L MOTOR
FIRST DESIGN CYLINDER HEAD

It's important to replace cylinder head bolts on a LS series engine's when removing the cylinder head(s), some of bolts used in this engine are single use, due to the fact of the fasteners being torque to yield.

Using second hand bolts may cause premature failure and help open that can of worms when your trying to put it all back together or even worse when if the engine is running.

SPECIFICATIONS:
Head Type: Male Hex
Length: 110mm (4) & 155mm (16)
Thread: M11 X 2.00

Head Type: Male Hex
Length: 45mm (10)
Thread: M8 X 1.25
Quantity: 30 Pieces

05/1999-2003 HOLDEN [VT-VX-VY COMMODORE]
06/1999-2003 HOLDEN [WH-WK STATESMAN]
12/2000-2003 HOLDEN [VU-VY UTE]
10/2001-2003 HOLDEN [V2 MONARO CV8]

The cylinder head bolts are manufactured to exacting standards by Nason, which had being supplying engine parts in Australia since 1927.
