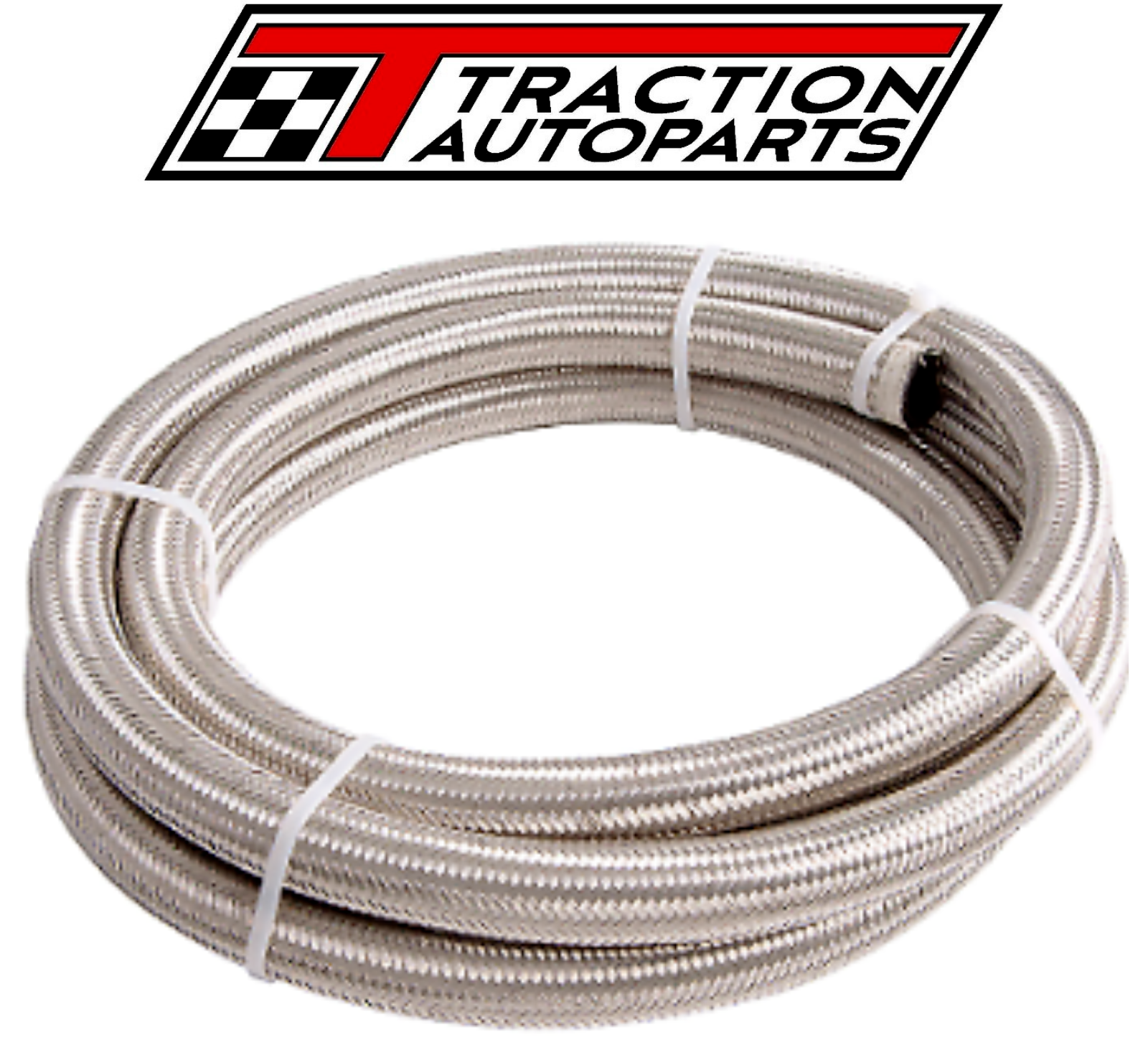

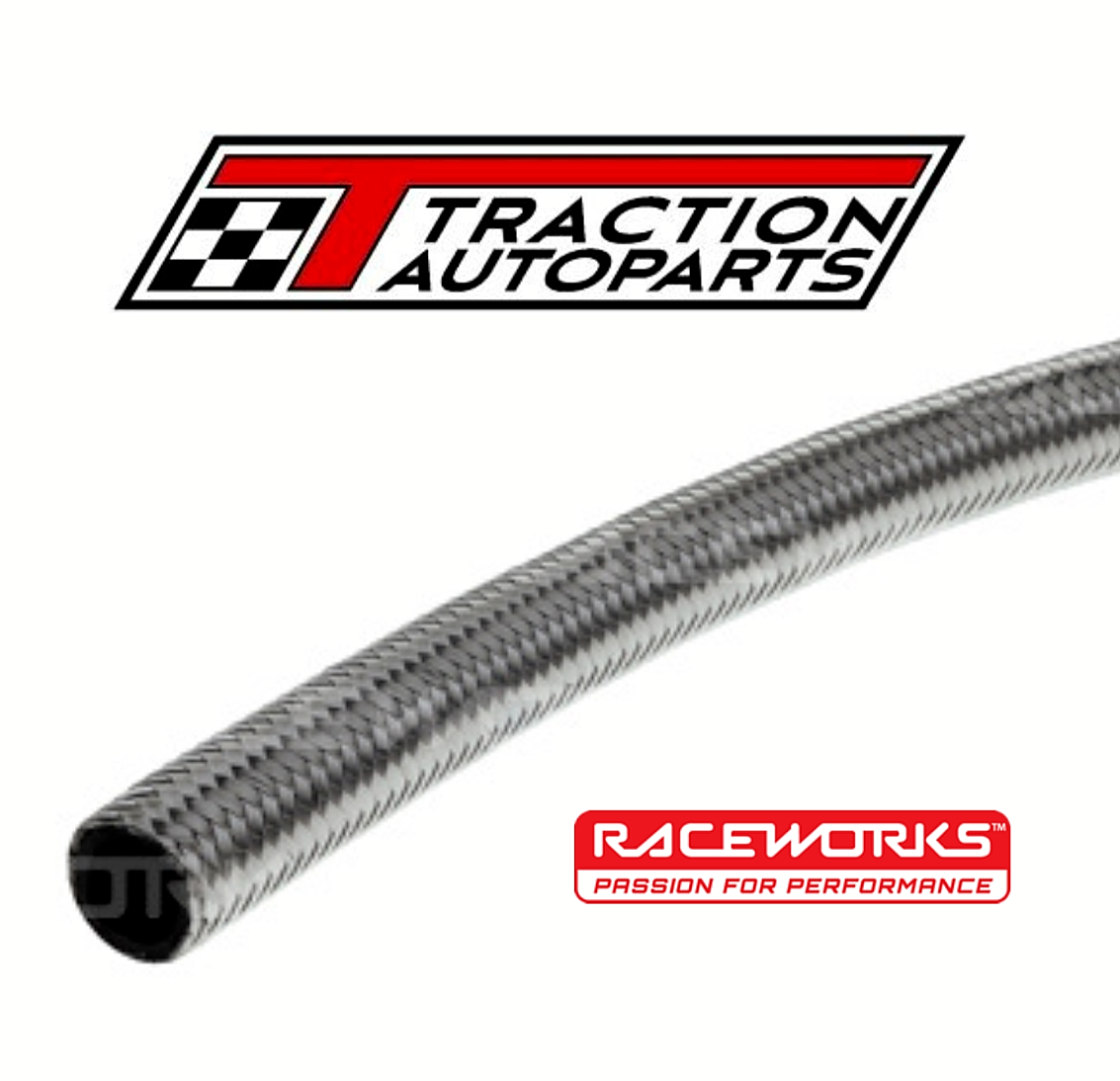

RACEWORKS STAINLESS STEEL BRAIDED HOSE -4AN (PER METRE) CUT TO LENGTH

Part Number : RWH-100-04-1M

STAINLESS STEEL BRAIDED HOSE -4AN (PER METRE) QTY=1MTR

You can add up to 30m in length in quantity, as we can cut to your needs.

Raceworks 100 series hose is a true double braided stainless hose that uses the highest quality stainless wire available in the world.

• Constructed with a stainless-steel outer braide that resists abrasion and corrosion
• Combined with a reinforced Chlorinated Polyethylene (CPE) synthetic rubber liner with a nylon inner braide.
• For use with fuel systems, E85, E10, methanol, oils, lubricants, coolant systems and vacuum applications.
• Minimum temperature -40°C, Maximum temperature 150°C

NOT RECOMMENDED FOR: Brake systems, Extreme heat areas and use inside passenger compartments (due to permeation). For these applications use 200 series hoses & fittings.

100 Series Hose specifications:

• AN Size: -4
• Hose I.D: 7/32" (5.5mm)
• Hose O.D: 7/16" (11.1mm)
• Operating Pressure: 1000 psi
• Burst Pressure: 6000 psi
