RTS Converter Mounting Ring Kit 10in., 30spl, GM TH350, TH400, Powerglide & Trim

Part Number : RTS-TCR14-KIT

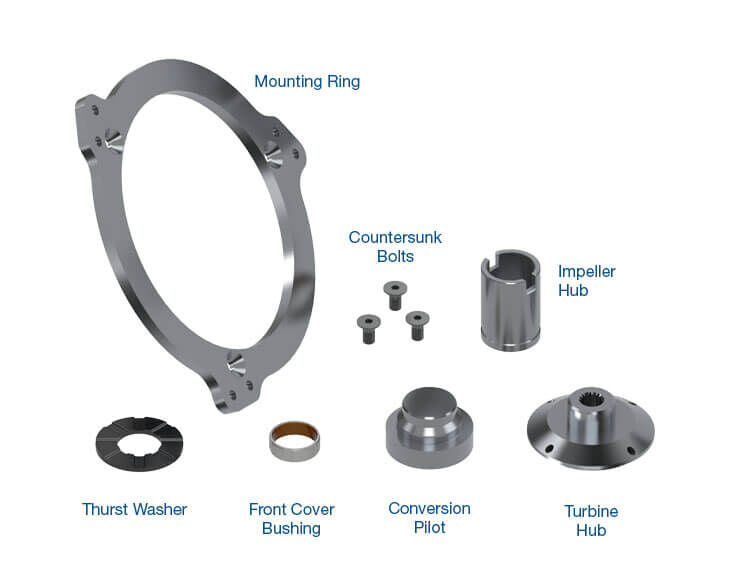

RTS 10" performance converter mounting ring kit provides torque converter builders the components for producing low-cost, high performance converters for the GM TH350, TH400. Powerglide & Trimatic with Turbo Spline, Using this kit allows the use of the OE GM 245mm front cover. Note When using in a Powerglide application the impeller hub must mount .070" taller. Either leave a .070" boss on the impeller to extend the height when using the impeller hub included in the kits or use a GM-90-300G impeller hub and cut it down to 3.695" length. Contents Impeller Hub Butt-mount Turbine Hub 30-Tooth Conversion Pilot Front Cover Bushing Mounting Ring with 10¾" and 11½" bolt patterns Thrust Washer Countersunk Bolts (3) Specs Unit Size: 10" Core: GM 245mm Dampered: No Lockup: No Transmission Unit: 350, 400, Powerglide Turbine Hub Input Spline Count: 30
