RTS OE Axle, Ford 9in, 28 Spline, Street Forged, 4140 Dual Heat Treated. Ford XA

Part Number : RTS-A28710

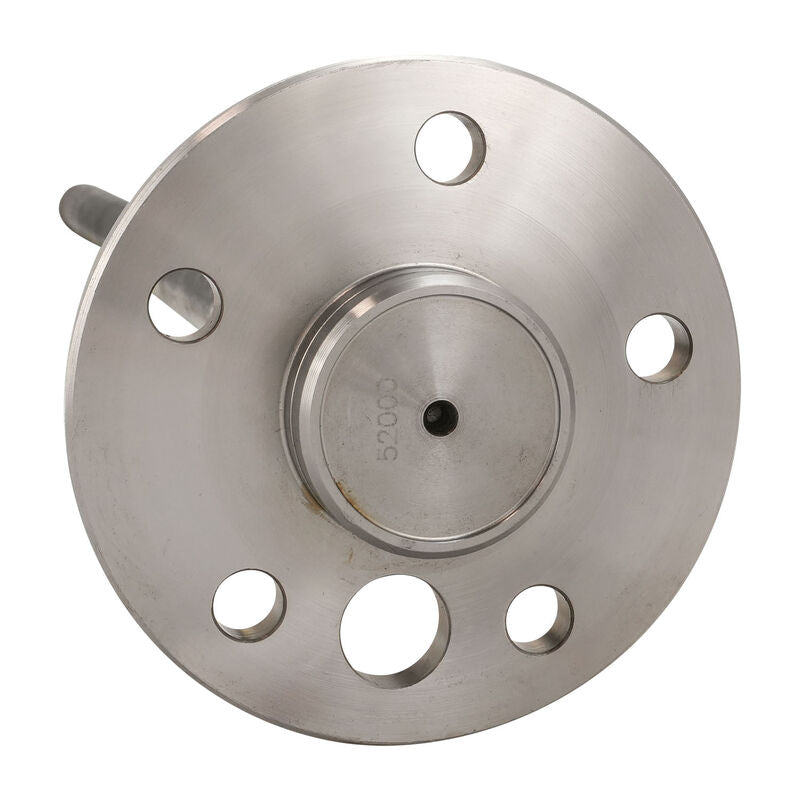

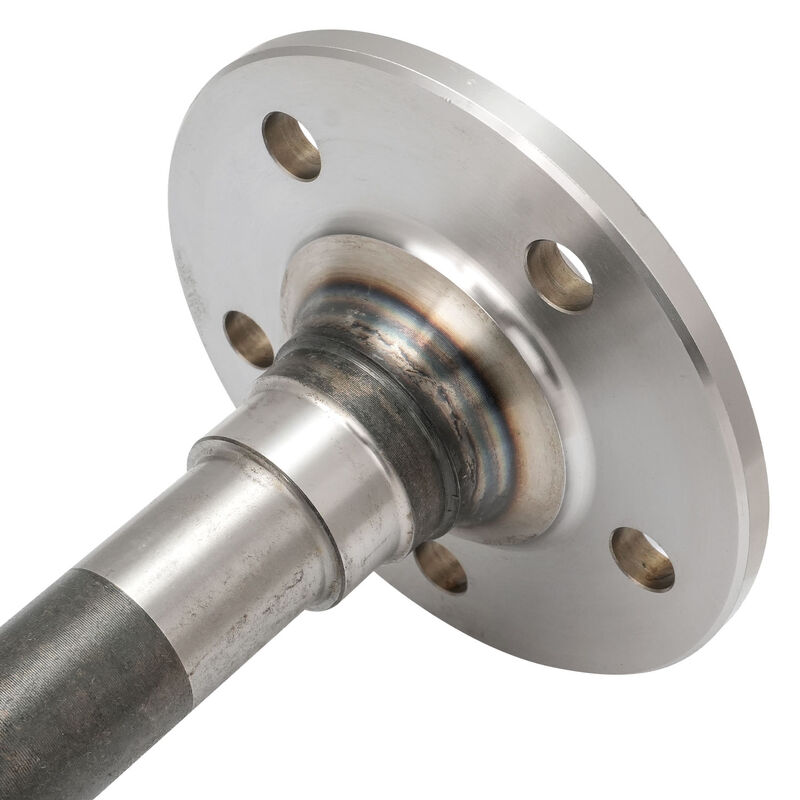

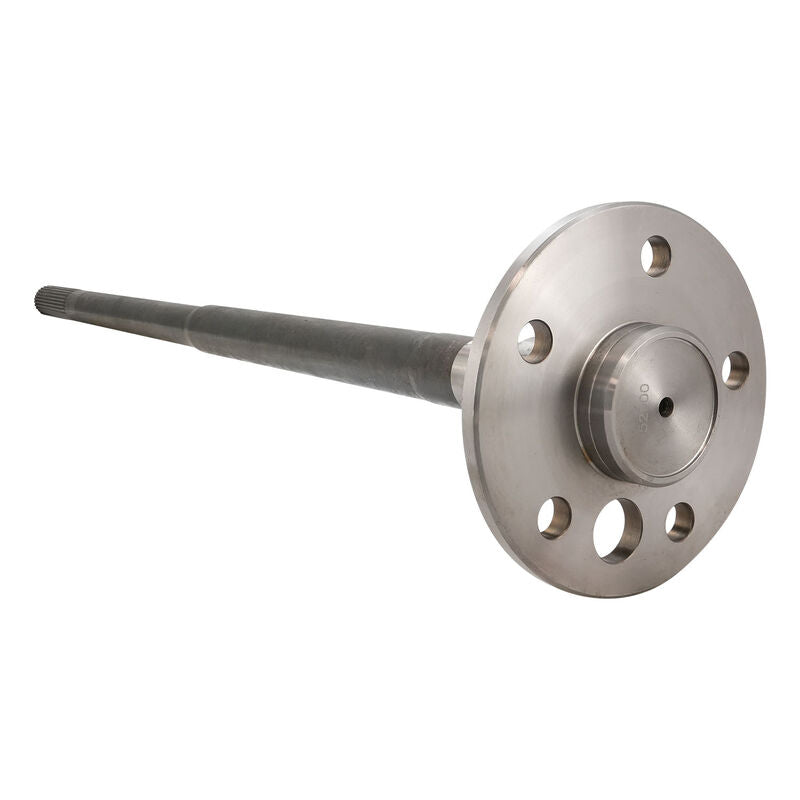

RTS OEM replacement axles are produced using state of the art equipment and manufacturing techniques. These 4140 Induction hardened steel axles shafts are non-tapered with hardened bearing seats and machined to fit directly into your factory fitted Ford 9 inch diff. They feature extra spline length on the end so they can be cut to fit your exact length in a modified situation. When quality is your aim, RTS axle shafts should be your choice. RTS Axle Decal included. 5 x 4.50" Stud pattern Suits small bearing Brake drum hub 2.427/61.65mm .605"hole diameter for factory style press in wheel studs 100mm spline length allows for shortening Note, prior to fitting assembled axle you need to lubricate axle seal surface area to stop seal burn This is a street performance axle which exceeds oem strength/quality and not a high-powered race axle. Available in XR to XY length & XA onward length Dedicated Left and Right hand side length
