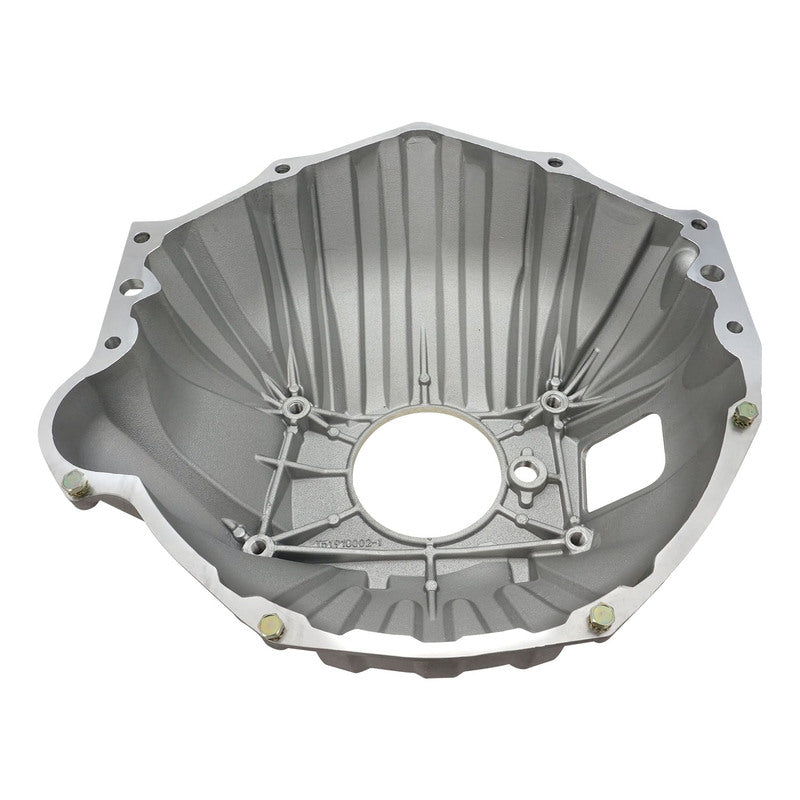

RTS OE Transmission Bellhousing Kit, Manual, OE Style, Aluminium, SB, BB, Chev E

Part Number : RTS-BH012GM-KIT

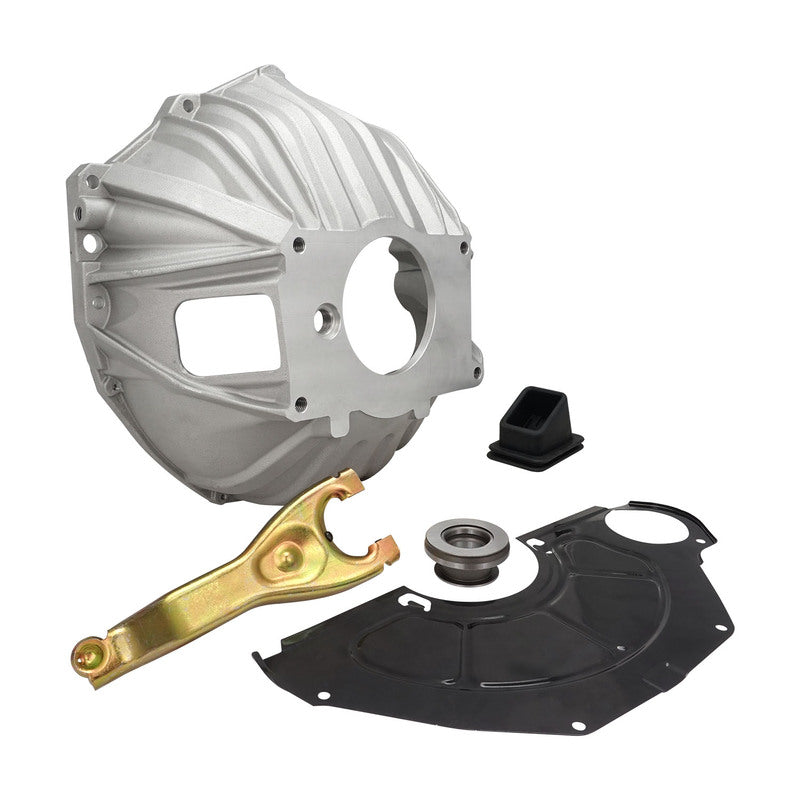

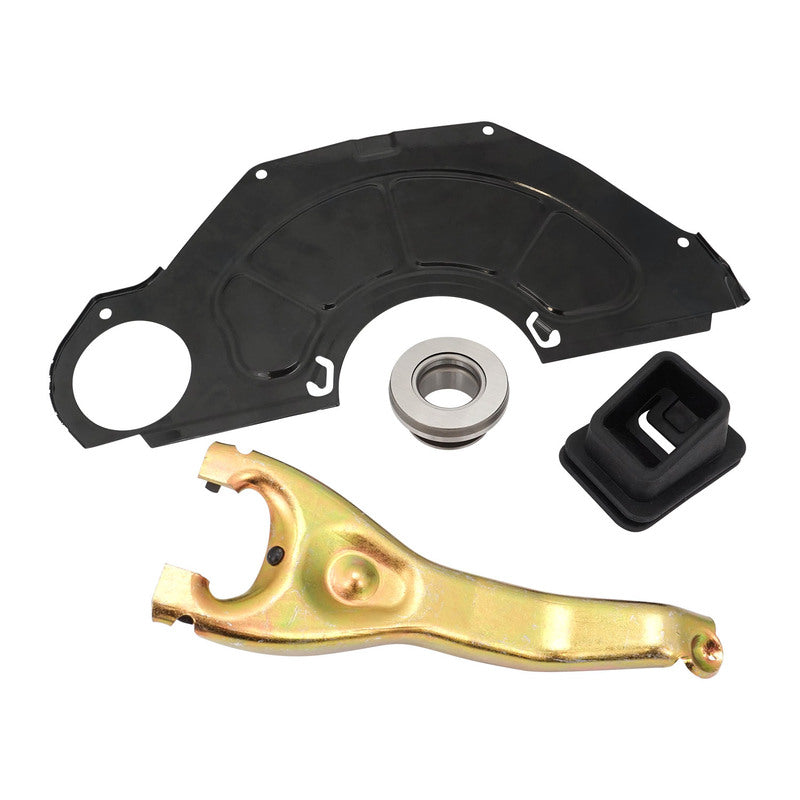

RTS’ replacement bellhousings are cast aluminium production style bellhousings built to Ford and GM specifications, ensuring you of a high quality product that’s right for the job. Some applications may require minor modifications for transmission clearance and mounting. Features: Lightweight cast aluminium design similar to the original equipment bellhousings non-SFI rated option for projects that do not require a steel SFI rated unit Lower cost, Not same as our RTS branded Bellhousing A356-T6 cast aluminium Designed for hydraulic and mechanical fork throwout bearing linkage Bellhousing depth: 6.45 in Clutch fork opening: 2.125 in x 3.3 in Transmission bore diameter: 4.684 in No hardware included Fits SB & BB Chevrolet, will bolt to LS but has No top bolt hole provision Kit includes: Thrust Bearing, Clutch Fork, Fork Pivot, Fork Boot, Inpection Plate / Dust Cover Note: Will not suit Holden V8 with GM/Chev bolt pattern due to starter position
