SB Chev with 1 Piece Gasket Oil Pan Bolt Kit Black 12 Point Head 8740 Grade

Small Block Chev with 1 Piece Gasket Oil Pan Bolt Kit - Black Finish
12 Point Head and 8740 Grade Material

Aeroflow Performance oil pan bolt kits are designed to hold and secure your oil pan and gasket in place without the worry of loosening. Undoubtedly, these oil pan bolts are the most professional method of attaching an oil pan to your engine block. The bolts construction is such that they can be re-used time and time again and provide prolonged gasket life.

These oil pan bolts are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. All bolts feature a small 12-point head and hardened washers for an even load distribution and accurate torque readings.

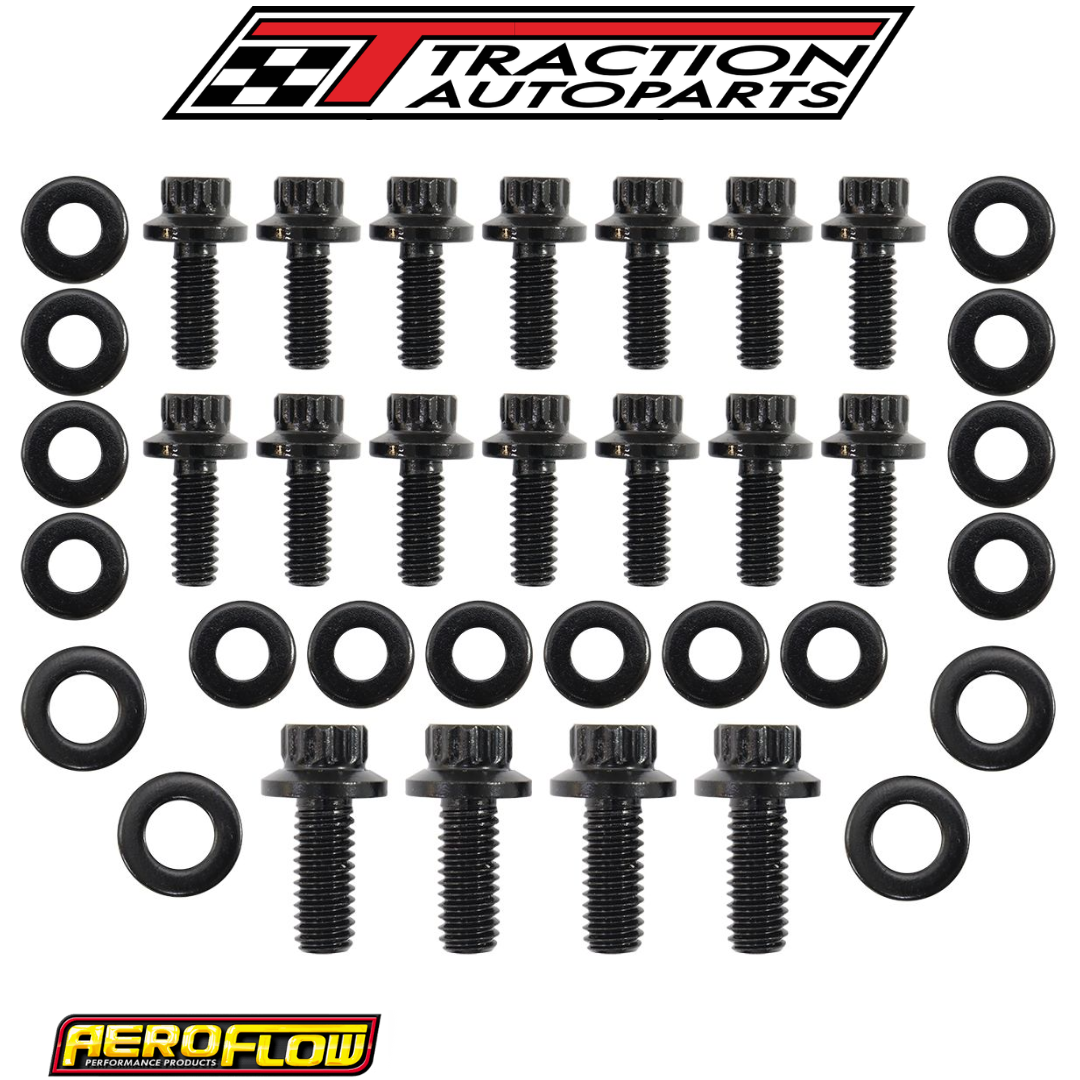

Kit Contains

Kit Contains

14 x 12 Point Bolts
15.5mm Under Head Length
13.10mmHead Diameter.
1/4”-20 thread.

4 x 12 Point Bolts
19.10mm Under Head Length
15.75mm Head Diameter.
5/16”-18 thread.

14 x Flat Small Washers
13.90mm Outside Diameter
6.50mm Inside Diameter
1.9mm Thickness.

4 x Flat Large Washers
16.40mm Outside Diameter
8.30mm Inside Diameter
1.9mm Thickness
