Small Block & Big Block Chrysler Intake Bolts, Black Finish 12 Point Head, 12 Pk

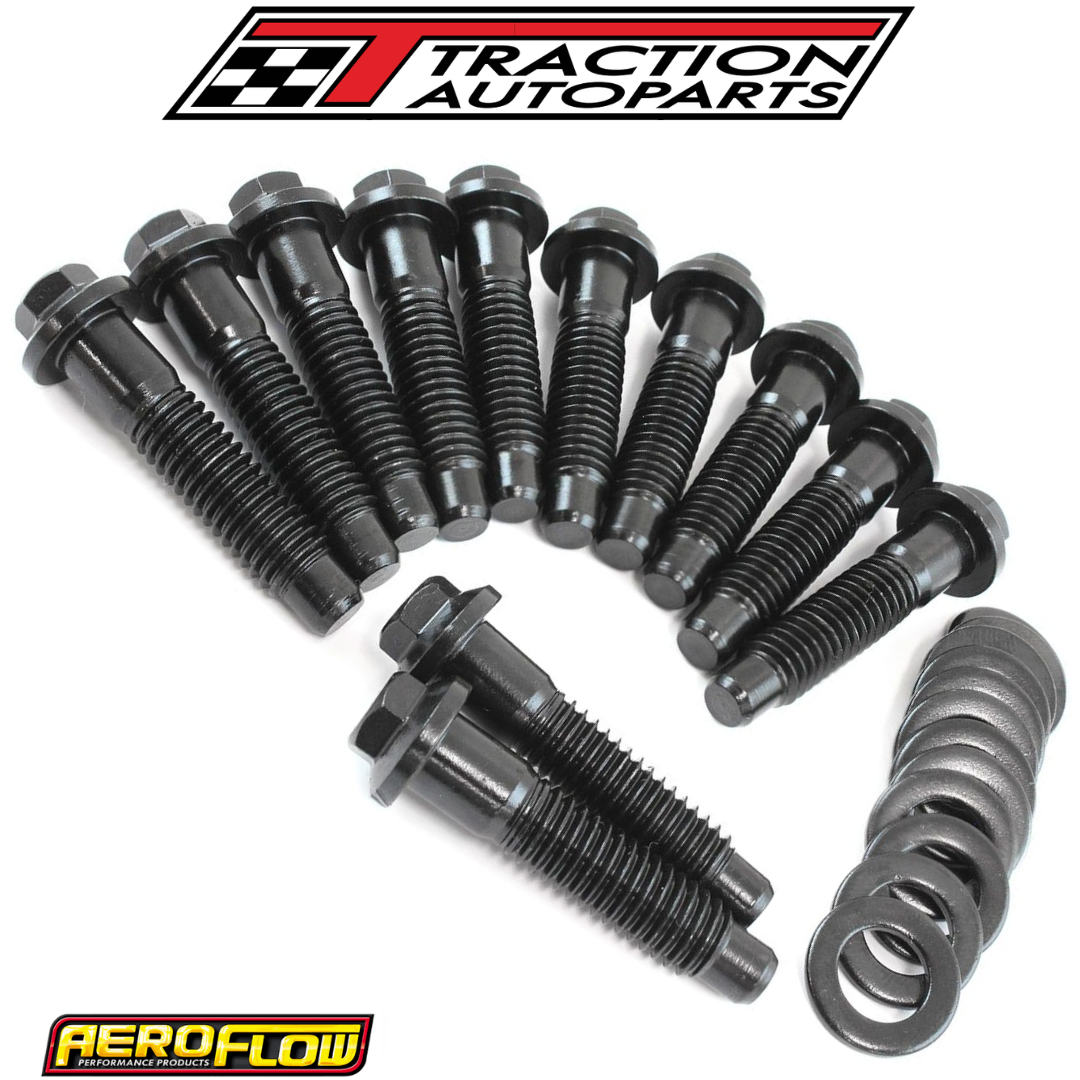

When installing a new intake manifold it is recommended to upgrade your intake bolts, some standard intake manifold won't work depending on aftermarket intake manifolds. These Aeroflow intake bolts are made from Grade 8 steel for strength. They are zinc coated for protection and long-lasting durability. Each 12-point head is designed to take a 3/8" spanner size. This compact 12-point head is ideal for use where space is minimal on most aftermarket intake manifolds compared to the factory bolts with a larger head. Each set includes special extra thick flat washers for optimum clamping pressures to ensure a sure seal.

Sold as a set of 12.

Thread size: 3/8"-16
Under Head Length: 43.45mm
Head Diameter: 15.75mm
Shank Diameter: 9.30mm
Shank Length: 8.90mm

Washer Outside Diameter:18.05mm
Washer Inside Diameter: 10.05mm
Washer Thickness: 2.5mm
