Weld On Flange suit 74mm Bosch DBW Throttle Body

Weld On Flange suit 74mm Bosch DBW Throttle Body

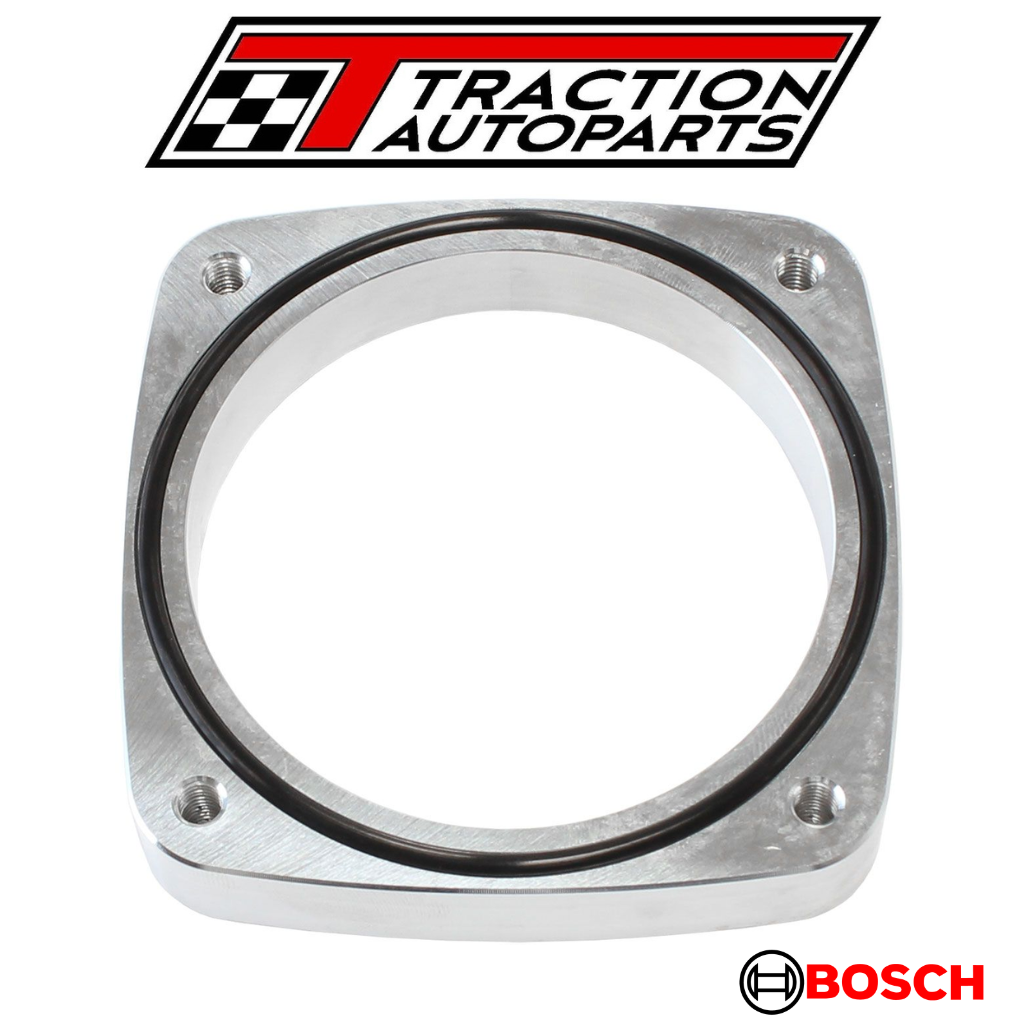

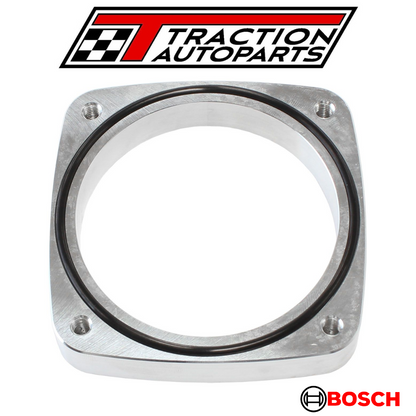

These raw alloy weld on flanges are designed to suit the Bosch 74mm Electronic Throttle Body (AF64-2135) and Bosch 82mm Electronic Throttle Body (AF64-2136). Perfect to weld onto your intake manifold to run the Bosch DBW using a O-Ring seal.

Flange Dimensions:

Overall Width - 92mm

Overall Height - 92mm

Overall Thickness - 15mm

Bore Internal Diameter - 76mm

Bolt Centre - 70mm

Bolt Thread - M6 x 1.00mm
