Weld On Flange suit 82mm Bosch DBW Throttle Body

Weld On Flange suit 82mm Bosch DBW Throttle Body

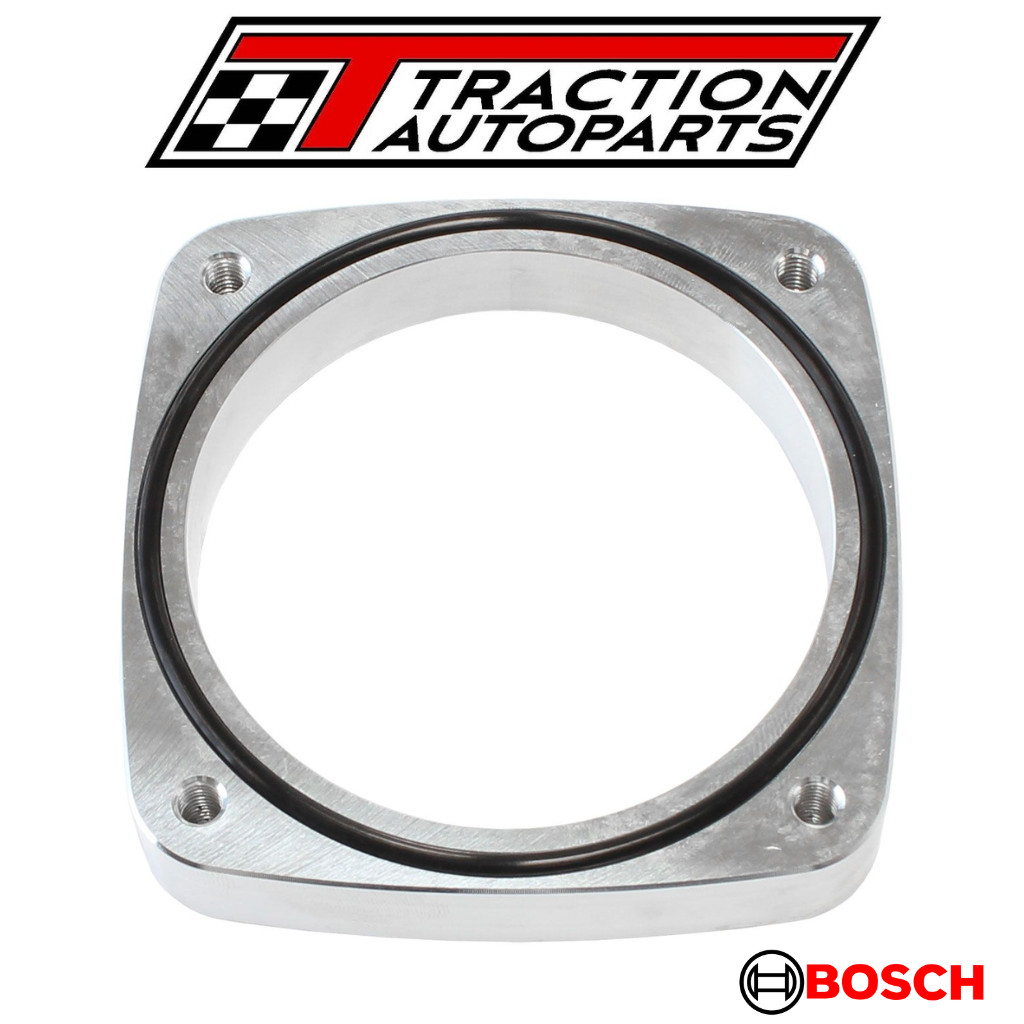

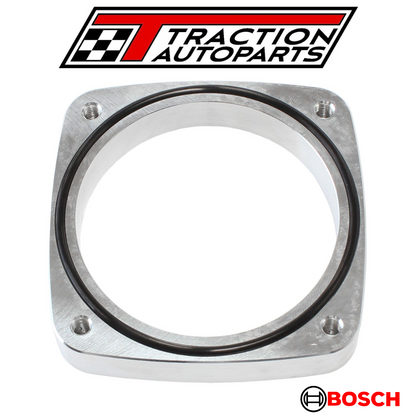

These raw alloy weld on flanges are designed to suit the Bosch 74mm Electronic Throttle Body (AF64-2135) and Bosch 82mm Electronic Throttle Body (AF64-2136). Perfect to weld onto your intake manifold to run the Bosch DBW using a O-Ring seal.

Flange Dimensions:

Overall Width - 102mm

Overall Height - 102mm

Overall Thickness - 15mm

Bore Internal Diameter - 84mm

Bolt Centre - 78mm

Bolt Thread - M6 x 1.00mm
